Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

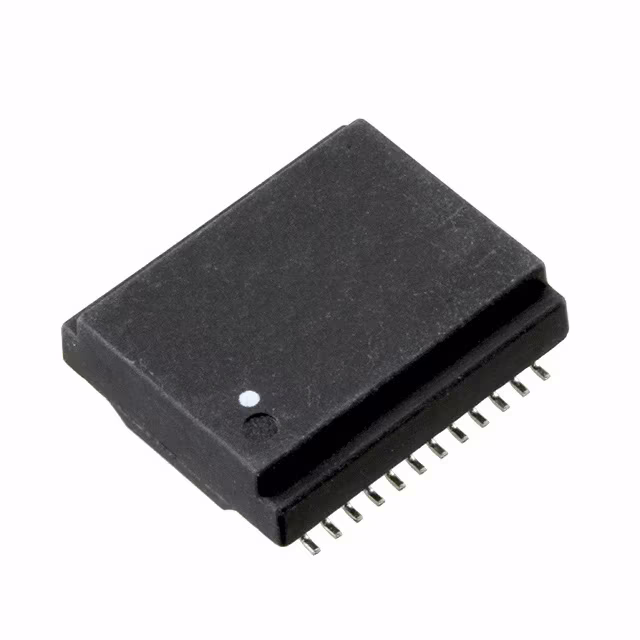

H5007EFNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
736 | - |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|

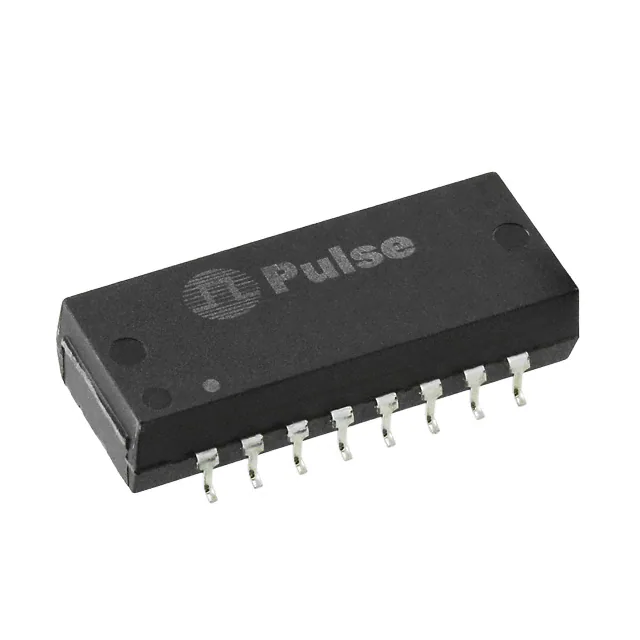

H1086NLTXFRMR MODULE 1PORT 1:1 10/100 |
803 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
H7019FNLTRANSFORMER MODULE 10GBASE-T SMD |
151 | - |
|
Datasheet | - | Tube | Active | LAN 10G Base-T | 200µH | - | 1:1 | Surface Mount | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|
HX1112QNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
412 | - |
|
Datasheet | - | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.192" (4.88mm) | -40°C ~ 85°C | - | - |
|

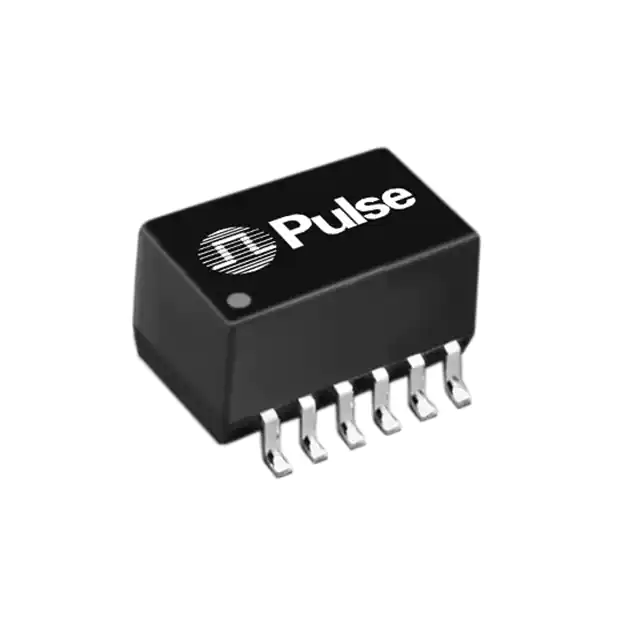

T7015NLXFRMR 64KBPS 1:2CT/1:2CT 20MH |
275 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | 20mH | - | 1:2CT, 1:2CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
B8845NLPULSE XFMR ADSL/VDSL2 4B3T |
293 | - |
|
Datasheet | SmartER Splitter™ | Tray | Active | ADSL, VDSL | - | - | - | Through Hole | 0.531" L x 0.839" W (13.50mm x 21.30mm) | 0.453" (11.50mm) | - | - | - |
|

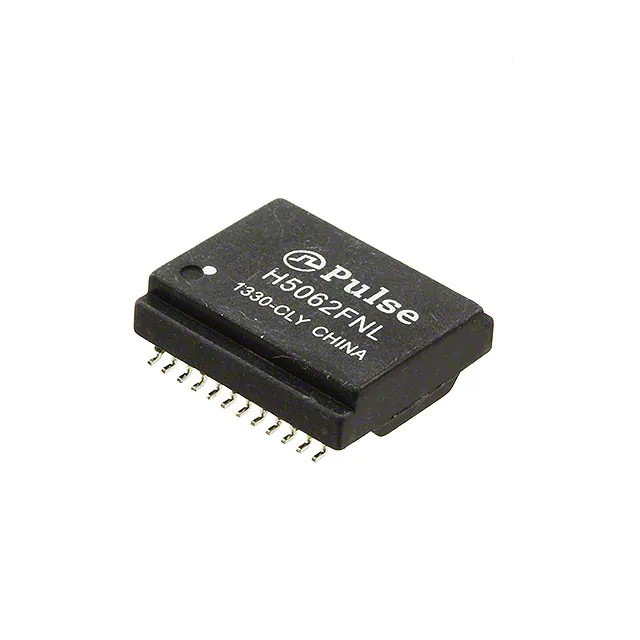

H5062FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
400 | - |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
TX1344NLTXFRMR OCTAL 1:1/1:2 1.2MH SMD |
586 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | T1/E1 (Octal) | 1.2mH | - | 1:1, 1:2 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
|
TX1472NLXFRMR OCTAL 1:2.4/1:1 1.2MH SMD |
363 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Octal) | 1.2mH | - | 1:2.4, 1:1 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
HX1294NLTMODULE XFRMR LAN 10/100 SMD |
2,348 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 325µH | - | 1CT:1CT | Surface Mount | 0.538" L x 0.599" W (13.67mm x 15.21mm) | 0.241" (6.12mm) | -40°C ~ 85°C | - | - |
