Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H7137FNLTRANSFORMER MODULE 10GBASE-T SMD |
308 | - |
|
Datasheet | - | Tube | Active | LAN 10G Base-T | - | - | 1:1 | Surface Mount | 0.698" L x 0.585" W (17.73mm x 14.86mm) | 0.290" (7.37mm) | 0°C ~ 70°C | - | - |
|
HM1234FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
164 | - |
|
Datasheet | - | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.110" L x 0.608" W (28.19mm x 15.44mm) | 0.225" (5.72mm) | -40°C ~ 105°C | Automotive | AEC-Q200 |
|
H2017NLXFRMR MAGNT MOD 4PORT POE 10/100 |
204 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | - | Surface Mount | 1.120" L x 0.480" W (28.45mm x 12.19mm) | 0.290" (7.36mm) | 0°C ~ 70°C | - | - |
|
H5201NLMODULE XFORMR DUAL GIGABIT SMD |
204 | - |
|
Datasheet | - | Tray | Active | - | - | - | 1CT:1CT | Surface Mount | 0.580" L x 0.680" W (14.73mm x 17.27mm) | 0.430" (10.92mm) | 0°C ~ 70°C | - | - |
|

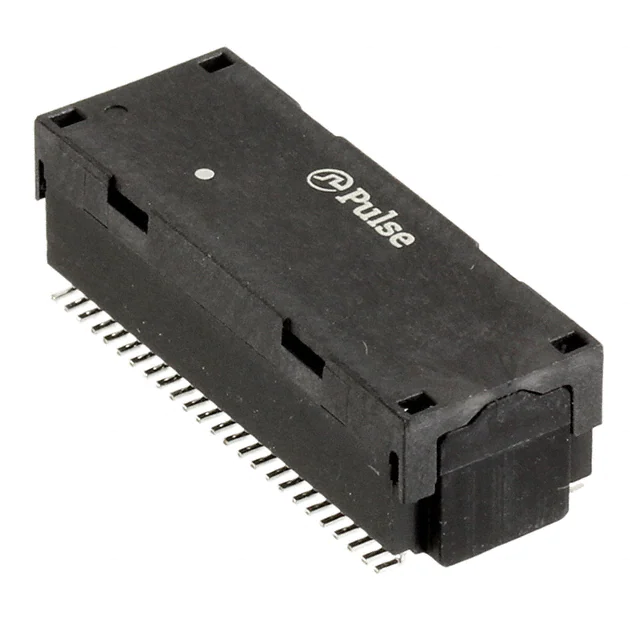

H5020FNLPULSE XFMR 1CT:1 TX 1CT:1 RX |
135 | - |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1 Transmitter, 1CT:1 Receiver | Surface Mount | 1.100" L x 0.395" W (27.94mm x 10.03mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
|

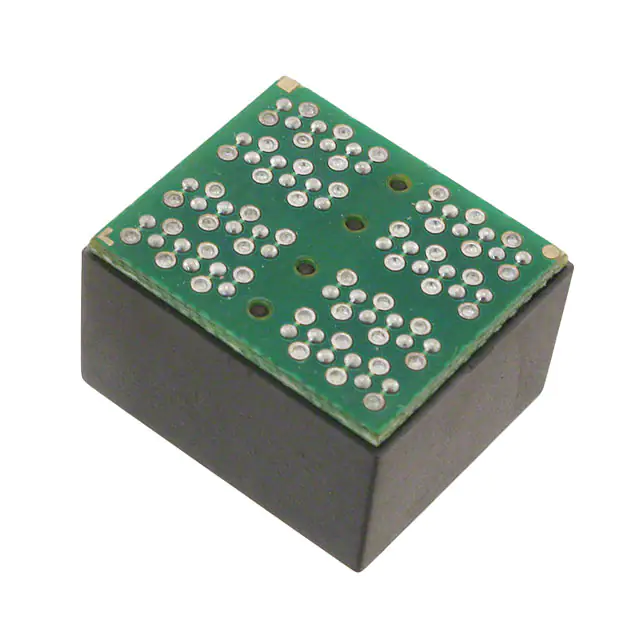

H5200NLMODULE XFORMR DUAL GIGABIT SMD |
108 | - |
|
Datasheet | - | Tray | Active | - | - | - | 1CT:1CT | Surface Mount | 0.580" L x 0.680" W (14.73mm x 17.27mm) | 0.430" (10.92mm) | 0°C ~ 70°C | - | - |
|
HX6136HLTMODULE DUAL GIGABIT ETHERNET 50P |
500 | - |
|
Datasheet | HX6136HLT | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.328" (8.33mm) | -40°C ~ 85°C | - | - |
|
|
HX6136HLMODULE DUAL GIGABIT ETHERNET 50P |
180 | - |
|
Datasheet | HX6136HL | Tube | Active | Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.328" (8.33mm) | -40°C ~ 85°C | - | - |
|
|
HX5020HLMODULE DUAL GIGABIT ETHERNET 50P |
170 | - |
|
Datasheet | HX5020HL | Tube | Active | Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.328" (8.33mm) | -40°C ~ 85°C | - | - |
|
|
HX6135HLTMODULE DUAL GIGABIT ETHERNET 50P |
500 | - |
|
Datasheet | HX6135HLT | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.328" (8.33mm) | -40°C ~ 85°C | - | - |
