Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TX1193NLTMODULE 1CT:2CT 1.2MH SMD |
748 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | -40°C ~ 85°C | - | - |
|
|
HX6135HLMODULE DUAL GIGABIT ETHERNET 50P |
180 | - |
|
Datasheet | HX6135HL | Tube | Active | Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.328" (8.33mm) | -40°C ~ 85°C | - | - |
|
|
HX5020HLTMODULE DUAL GIGABIT ETHERNET 50P |
487 | - |
|
Datasheet | HX5020HLT | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.328" (8.33mm) | -40°C ~ 85°C | - | - |
|

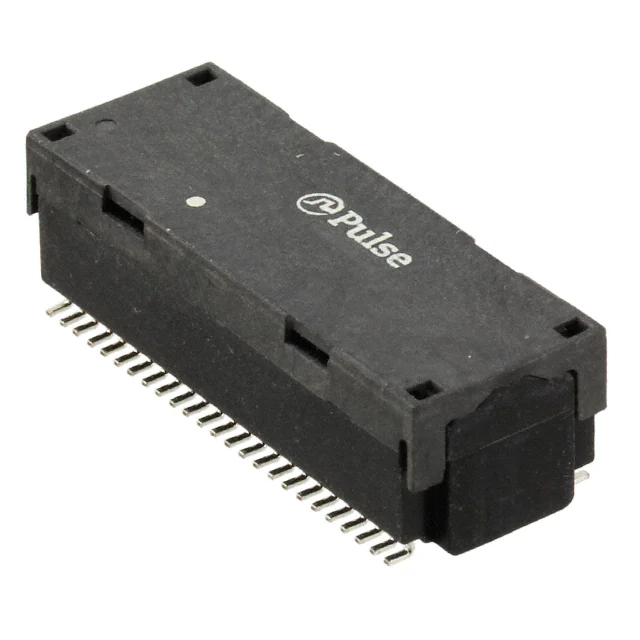

HX5020FNLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
805 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.100" L x 0.395" W (27.94mm x 10.03mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
H6080NLTXFRMR MODUL GIGABT 2PORT POE 1:1 |
179 | - |
|
Datasheet | Star Magnetics™ | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
|
PA2244.472NLTTRANSFORMER |
299 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - |
|
|
PGT6209NLTTRANSF MINIFLYBACK 3W |
2,344 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | General Purpose | 33µH | - | - | Surface Mount | 0.217" L x 0.213" W (5.50mm x 5.40mm) | 0.122" (3.10mm) | -40°C ~ 125°C | - | - |
|
PFX0890NLTPULSE XFMR 1.02MH |
1,840 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 1.02mH | - | - | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | -40°C ~ 125°C | - | - |
|
|
HB5602NLMOD SIN 1GD 1:1 HF 24P |
1,668 | - |
|
Datasheet | HB5 | Tube | Active | LAN 1000 Base-T | 350µH | - | 1CT:1CT | Through Hole | 0.616" L x 0.433" W (15.65mm x 11.00mm) | 0.441" (11.20mm) | 0°C ~ 70°C | - | - |
|
PM2180.012NLXFMR GATE-DR 1CT:2CT SM NPB |
595 | - |
|
Datasheet | PM2180.XXXNL | Tray | Active | Isolation and Data Interface (Encapsulated) | 1.02mH | 22VµS | 1:2CT | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | -40°C ~ 125°C | - | - |
