| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

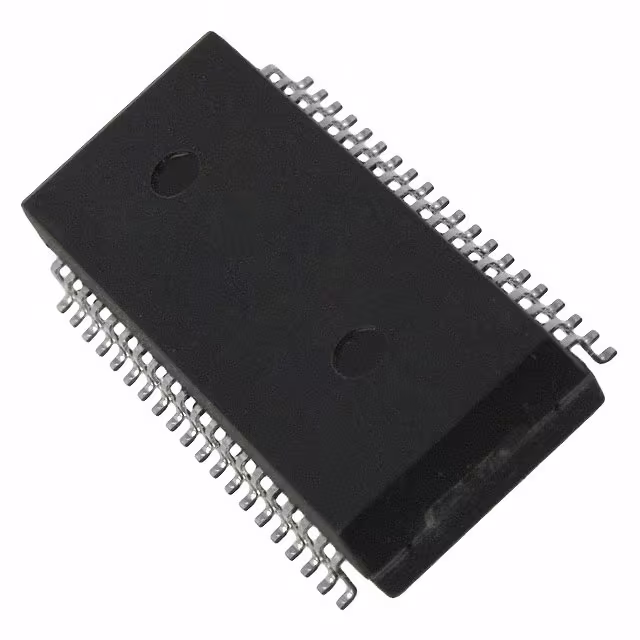

T1068NLXFRMR 4PORT 1:2CT 1.2MH SMD |
468 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2CT Transmitter, 1:1CT Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
H1081NLTXFRMR MODUL 1PORT 1:1.141 10/100 |
603 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1.141 Transmitter, 1:1 Receiver | Surface Mount | 1.000" L x 0.395" W (25.40mm x 10.03mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
HD8008NLTMDL,SIN,10G,P,1:1,SM,TR |
3,814 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | HDBase-T | 100µH | - | 1CT:1CT | Surface Mount | 0.539" L x 0.480" W (13.70mm x 12.20mm) | 0.235" (5.97mm) | 0°C ~ 70°C | - | - |
|

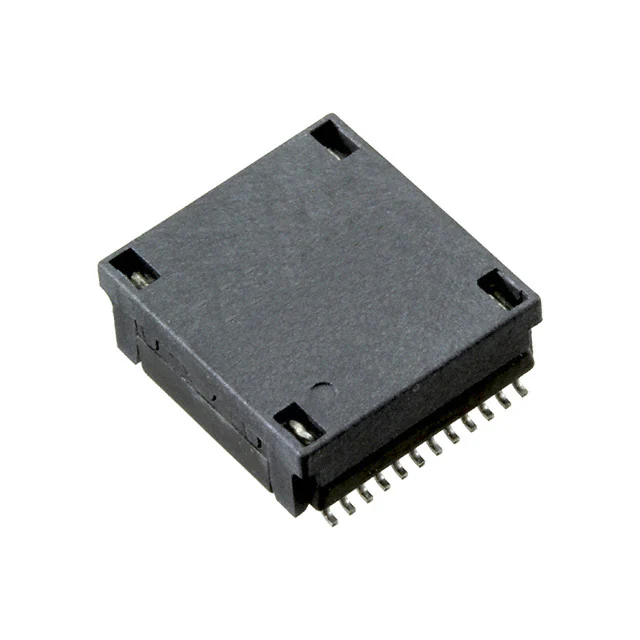

H7028FNL10GBASE-T DISCRETE 4CH BCM PHY |
341 | - |
|
Datasheet | - | Bulk | Active | LAN 10G Base-T | 120µH | - | 1:1 | - | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|
HX1178NLXFRMR MODULE 1PORT 1:1 10/100 |
191 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
H7029FNL10GBASE-T DISCRETE 4CH MAR/SOL P |
1,355 | - |
|
Datasheet | - | Tube | Active | LAN 10G Base-T | 120µH | - | 1:1 | - | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|

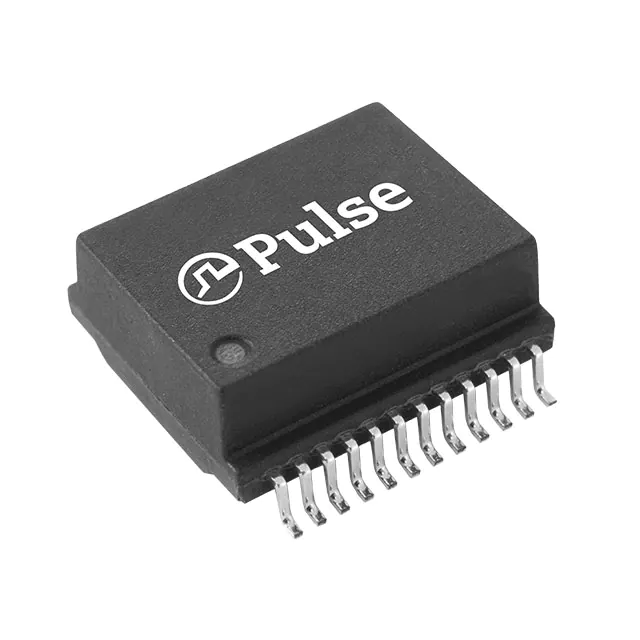

HU4006NLMODULE MAGNETIC SNGL 2.5GB SMT |
200 | - |
|
Datasheet | - | Tube | Active | - | - | - | - | Surface Mount | 0.540" L x 0.480" W (13.72mm x 12.19mm) | 0.226" (5.75mm) | 0°C ~ 70°C | - | - |
|
TX1341NLXFRMR OCTAL 1:2 1.2MH SMD |
146 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Octal) | 1.2mH | - | 1:2 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
H5019NLTRANSFORMER MODULE GIGABIT 1PORT |
941 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.780" L x 0.655" W (19.81mm x 16.64mm) | 0.100" (2.54mm) | 0°C ~ 70°C | - | - |
|
H5004ENLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
105 | - |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
