Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H6096FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
3,022 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.595" W (18.16mm x 15.11mm) | 0.260" (6.60mm) | 0°C ~ 70°C | - | - |
|
HX0068ANLMODULE XFMR 1:1 100D SIN SMD |
2,065 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.500" L x 0.347" W (12.70mm x 8.81mm) | 0.082" (2.08mm) | -40°C ~ 85°C | - | - |
|

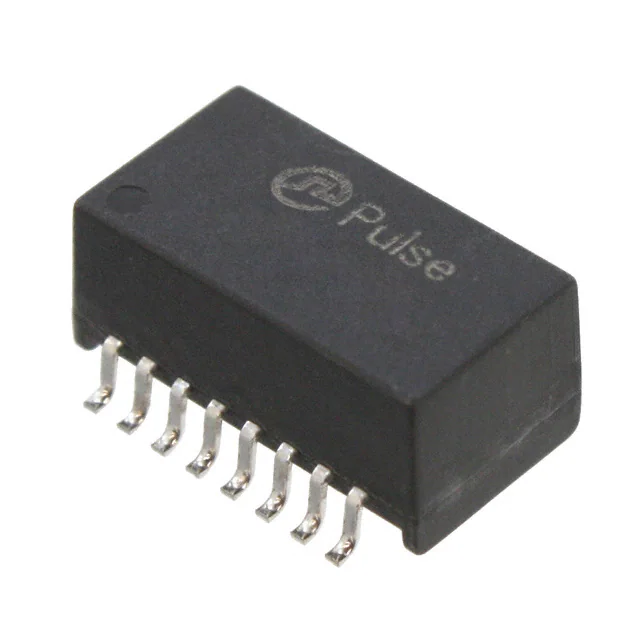

HX2019FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
242 | - |
|
Datasheet | - | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|
HX5084FNLTMOD MAGNETIC 1PORT 1000BASE-T |
2,562 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.600" L x 0.385" W (15.24mm x 9.78mm) | 0.163" (4.14mm) | -40°C ~ 85°C | - | - |
|
|

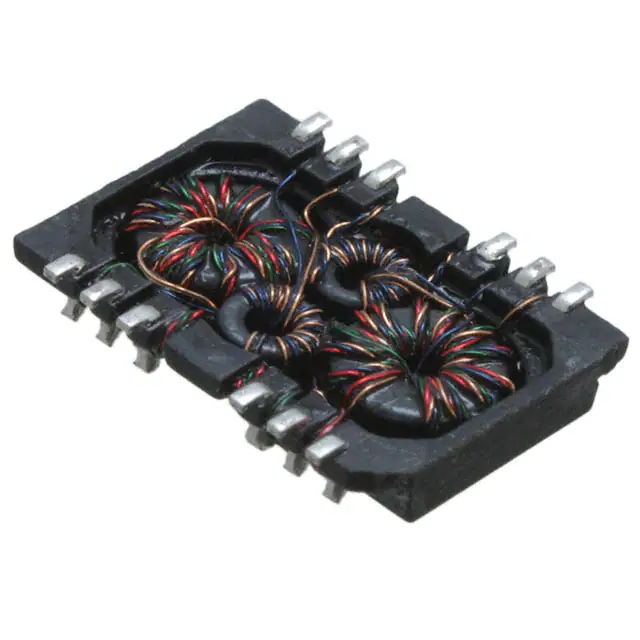

HX0068ANLTMODULE XFMR 1:1 100D SIN SMD |
4,942 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.500" L x 0.347" W (12.70mm x 8.81mm) | 0.082" (2.08mm) | -40°C ~ 85°C | - | - |
|

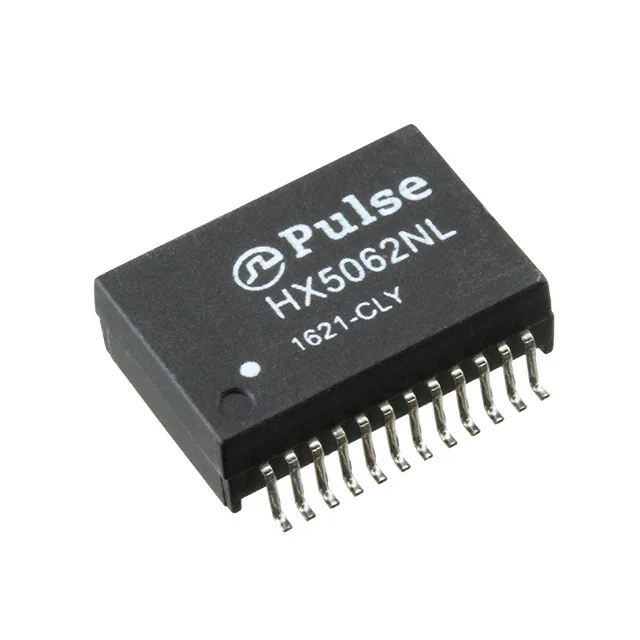

HX5062NLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
1,590 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
|
H2019NLMODULE XFRMR VOIP SGL LAN 16SOIC |
4,403 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.240" (6.10mm) | 0°C ~ 70°C | - | - |
|
HX1224CNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
541 | - |
|
Datasheet | µCom | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.537" L x 0.570" W (13.64mm x 14.48mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
HX5008NLTTRANSFORMER MODULE GIGABIT 1PORT |
8,165 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.518" L x 0.595" W (13.16mm x 15.11mm) | 0.251" (6.37mm) | -40°C ~ 85°C | - | - |
|

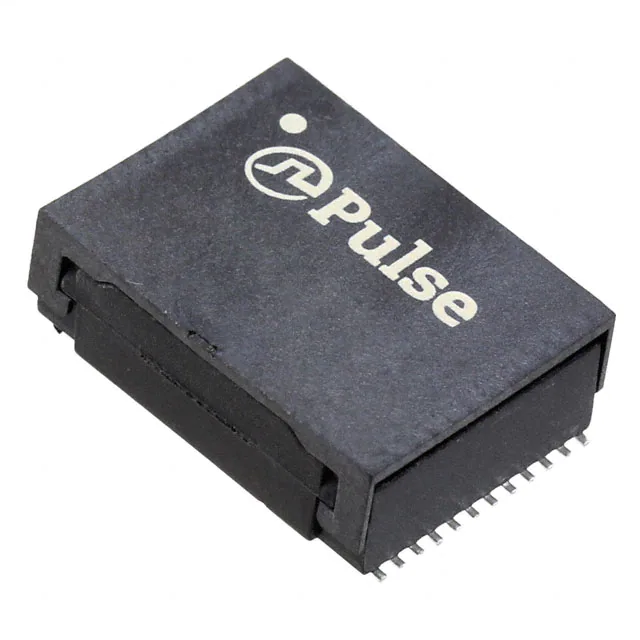

HX5008FNLTPULSE XFMR 1CT:1 TX 1CT:1 RX |
1,993 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 325µH | - | 1CT:1 Transmitter, 1CT:1 Receiver | Surface Mount | 0.518" L x 0.703" W (13.16mm x 17.86mm) | 0.241" (6.12mm) | -40°C ~ 85°C | - | - |
