Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HX6400NLMODULE QUAD 1GPP 1:1 SMT TU |
4,894 | - |
|

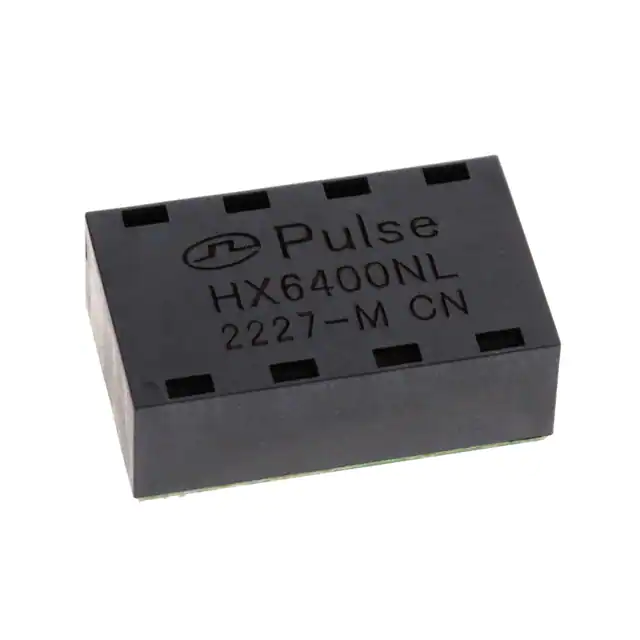

Datasheet | HX6400NL | Tray | Active | LAN 1000 Base-T | 150µH | - | 1:1 | Surface Mount | 1.120" L x 0.680" W (28.45mm x 17.27mm) | 0.440" (11.18mm) | -40°C ~ 85°C | - | - |
|
PA2004NLPULSE XFMR 1:1:1 437UH |
2,406 | - |
|

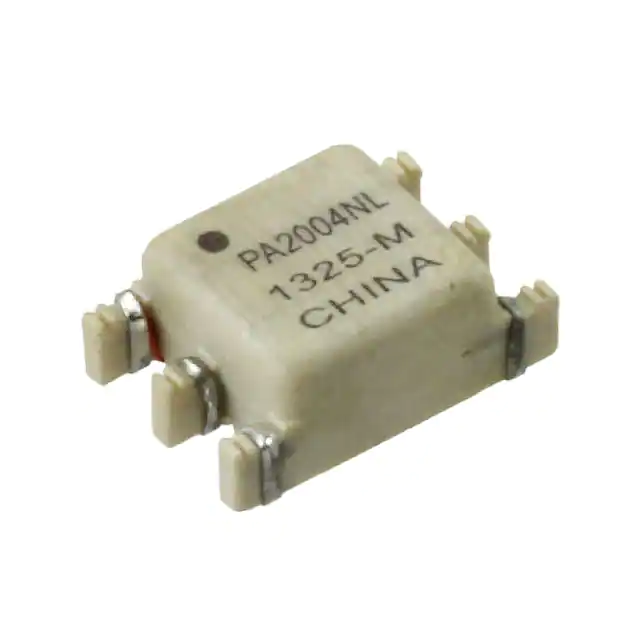

Datasheet | - | Tube | Active | - | 437µH | 20VµS | 1:1:1 | Surface Mount | 0.340" L x 0.265" W (8.64mm x 6.73mm) | 0.140" (3.56mm) | -40°C ~ 130°C | - | - |
|
PA0297NLPULSE XFMR 2:1:1 1200UH |
3,424 | - |
|
Datasheet | - | Tube | Active | - | 1200µH | 27.2VµS | 2:1:1 | Surface Mount | 0.354" L x 0.339" W (9.00mm x 8.60mm) | 0.299" (7.60mm) | -40°C ~ 130°C | - | - |
|
HM2108NLXFMR CMC MODULE AECQ BATT MNGT |
4,903 | - |
|
Datasheet | - | Tube | Active | - | 135µH | - | - | Surface Mount | 0.335" L x 0.663" W (8.50mm x 16.84mm) | 0.226" (5.75mm) | - | - | - |
|
HX1339NLXFRMR MODULE 100B-TX 2 CH SMT |
1,243 | - |
|

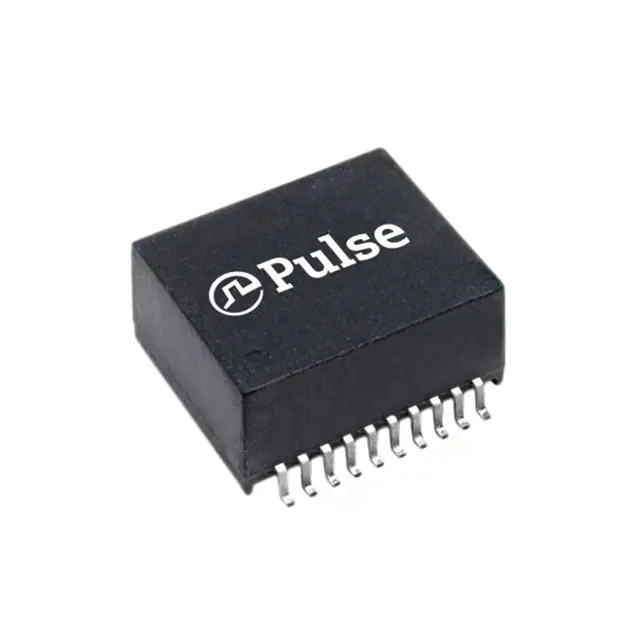

Datasheet | - | Tube | Active | General Purpose | 350µH | - | 1:1 | Surface Mount | - | 0.300" (7.62mm) | - | - | - |
|
H7008FNLTRANSFORMER MODULE 10GBASE-T |
2,507 | - |
|

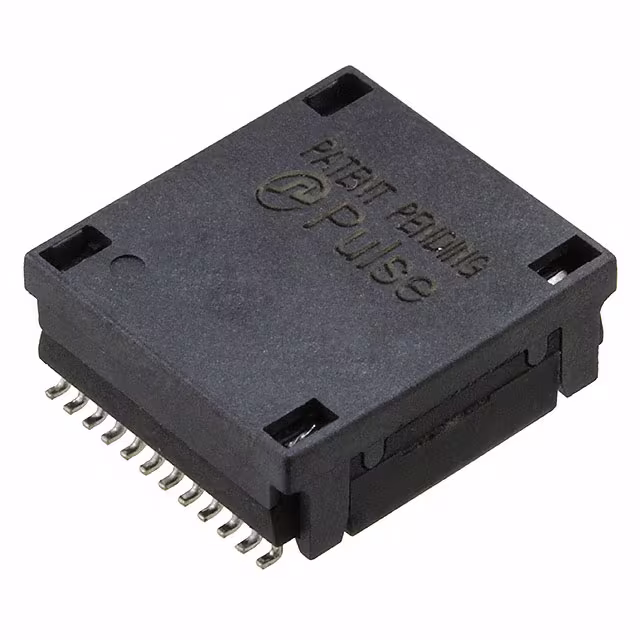

Datasheet | - | Tube | Active | LAN 10G Base-T | 200µH | - | 1:1 | Surface Mount | 0.591" L x 0.539" W (15.00mm x 13.70mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|
PA2002NLPULSE XFMR 1:1:1 1.8MH |
1,129 | - |
|
Datasheet | - | Tube | Active | - | 1.8mH | 60VµS | 1:1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|
PA2517NLPULSE XFMR 1.2MH |
2,824 | - |
|

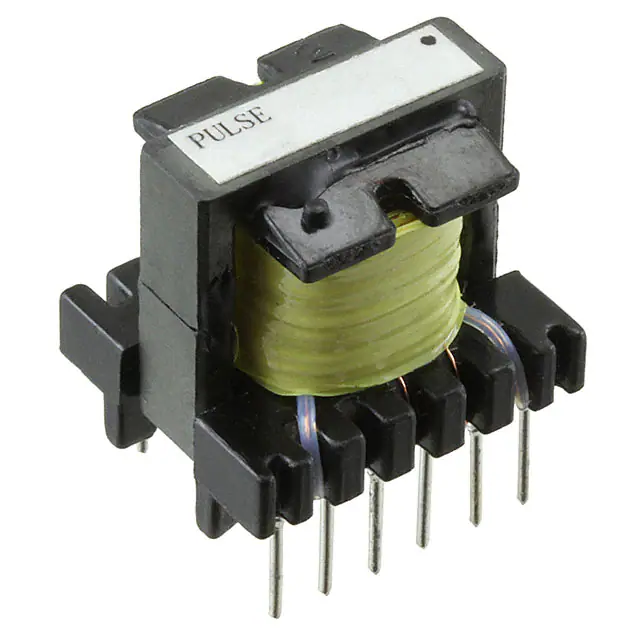

Datasheet | - | Tray | Active | - | 1.2mH | - | - | Through Hole | 0.717" L x 0.630" W (18.20mm x 16.00mm) | 0.709" (18.00mm) | -40°C ~ 130°C | - | - |
|
H5007ENLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
4,890 | - |
|

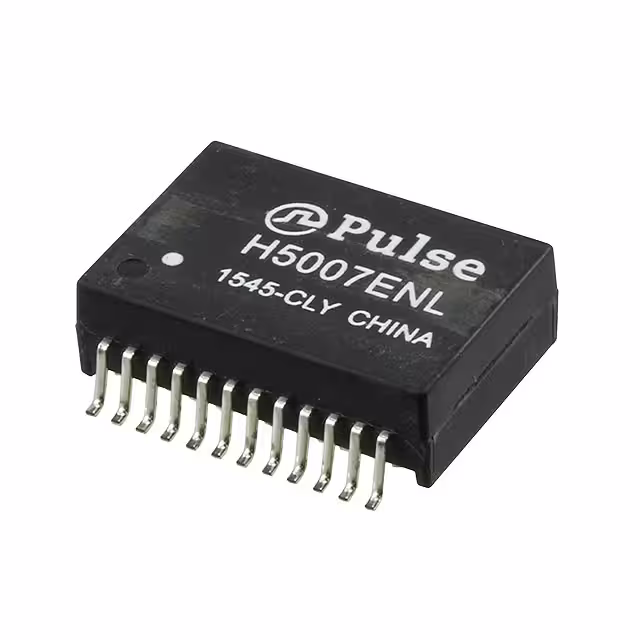

Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
H2006ANLMODULE MAGNETICS POE DUAL VOIP |
3,157 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.537" L x 0.470" W (13.64mm x 11.94mm) | 0.254" (6.45mm) | 0°C ~ 70°C | - | - |
