Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

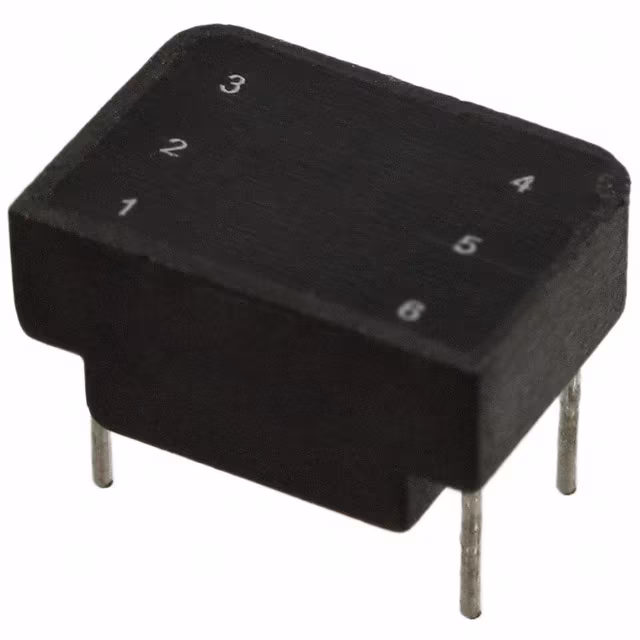

T6075NLPULSE XFMR 1:1 225UH |
3,342 | - |
|
Datasheet | - | Tube | Active | - | 225µH | - | 1:1 | Through Hole | 0.498" L x 0.350" W (12.65mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
HX5012FNLPULSE XFMR 1 CT:1CT TX/RX 350UH |
2,616 | - |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.590" W (27.81mm x 14.99mm) | 0.285" (7.24mm) | -40°C ~ 85°C | - | - |
|
T9021NLTXFRMR 4PORT 1:2.42 0.6MH SMD |
3,066 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | T1/E1 (Quad) | 600µH | - | 1:2.42 Transmitter, 1:2.42 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.285" (7.24mm) | 0°C ~ 70°C | - | - |
|
H1102NLTXFRMR MAGNETIC 1PORT 1:1 10/100 |
2,866 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
HX1260NLXFRMR MODULE 1PORT 1:1 10/100 |
2,159 | - |
|
Datasheet | Star Magnetics™ | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
HX2326NLMODULE 10/100B-T POE SMD |
1,142 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
P0584NLPULSE XFMR 1:1:1 450UH |
2,235 | - |
|
Datasheet | - | Tray | Active | - | 450µH | 95VµS | 1:1:1 | Through Hole | 0.810" L x 0.480" W (20.57mm x 12.19mm) | 0.750" (19.05mm) | -40°C ~ 125°C | - | - |
|
H5084NLMODULE MAGNETIC 1PORT 1000BASE-T |
1,630 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.600" L x 0.300" W (15.24mm x 7.62mm) | 0.163" (4.14mm) | 0°C ~ 70°C | - | - |
|
|
GST5009M LFMDL 1G SINGLE PORT N/A |
2,026 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.594" L x 0.280" W (15.10mm x 7.10mm) | 0.157" (4.00mm) | -40°C ~ 85°C | - | - |
|
H5007NLMODULE SINGLE GIGABIT LAN 24SOIC |
3,601 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | 0°C ~ 70°C | - | - |
