Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HX6080NLPULSE XFMR 1 CT:1CT TX/RX 350UH |
3,505 | - |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.285" (7.24mm) | -40°C ~ 85°C | - | - |
|
PFX0890NLPULSE XFMR 1.02MH |
4,647 | - |
|
Datasheet | - | Tube | Active | - | 1.02mH | - | - | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | -40°C ~ 125°C | - | - |
|
PA0510NLPULSE XFMR 2.5:1:1 1.2MH |
2,355 | - |
|
Datasheet | - | Tube | Active | - | 1.2mH | 27.2VµS | 2.5:1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|
PA2005NLPULSE XFMR 1:1:1 840UH |
2,547 | - |
|
Datasheet | - | Tube | Active | - | 840µH | 26VµS | 1:1:1 | Surface Mount | 0.340" L x 0.460" W (8.64mm x 11.68mm) | 0.160" (4.06mm) | -40°C ~ 130°C | - | - |
|

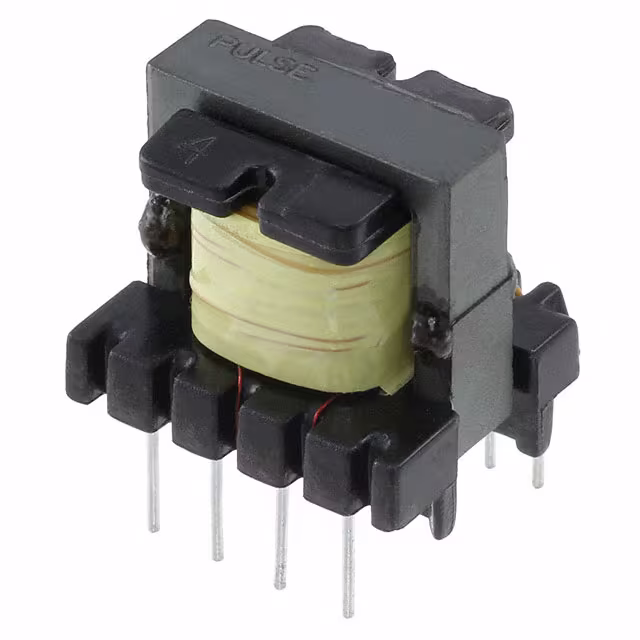

P5001NLPULSE XFMR 1:0.1:0.1 |
3,427 | - |
|
Datasheet | - | Tray | Active | - | - | - | 1:0.1:0.1 | Through Hole | 0.717" L x 0.630" W (18.20mm x 16.00mm) | 0.697" (17.70mm) | -30°C ~ 110°C | - | - |
|
TX1287NLXFRMR 1CT:2.42CT/1CT:2.42CT SMD |
2,452 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2.42CT, 1CT:2.42CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
H1081NLXFRMR MODUL 1PORT 1:1.141 10/100 |
1,134 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1.141 Transmitter, 1:1 Receiver | Surface Mount | 1.000" L x 0.395" W (25.40mm x 10.03mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|

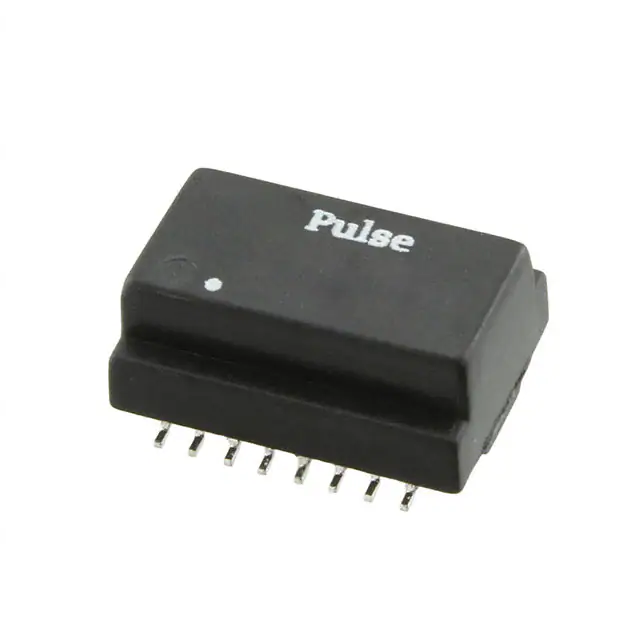

HX1217NLPULSE XFMR 1:1 TX 1:1 RX 350UH |
4,169 | - |
|
Datasheet | - | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|
|
PE-68023NLXFRMR LAN ISOL 1CT:2CT 10B-T SMD |
4,024 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | 200µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
PA1836NLTPULSE XFMR 4.5UH |
2,112 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 4.5µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
