Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TC10G00LAN XFMR CHIP 1:1 10G SMD |
3,649 | - |
|
Datasheet | PulseChip™ | Tape & Reel (TR) | Active | LAN 10G Base-T | 120µH | - | 1CT:1CT | Surface Mount | 0.185" L x 0.126" W (4.70mm x 3.20mm) | 0.124" (3.15mm) | -40°C ~ 85°C | - | - |
|
|
TC10G00PLAN XFMR CHIP 1:1 10G POE 60W |
4,539 | - |
|
Datasheet | PulseChip™ | Tape & Reel (TR) | Active | LAN 10G Base-T, Power Over Ethernet (PoE) | 120µH | - | 1CT:1CT | Surface Mount | 0.185" L x 0.126" W (4.70mm x 3.20mm) | 0.124" (3.15mm) | -40°C ~ 85°C | - | - |
|
|
TC10G001PLAN XFMR CHIP 1:1 10G POE 90W |
2,748 | - |
|
Datasheet | PulseChip™ | Tape & Reel (TR) | Active | LAN 10G Base-T, Power Over Ethernet (PoE) | 100µH | - | 1CT:1CT | Surface Mount | 0.181" L x 0.134" W (4.60mm x 3.40mm) | 0.165" (4.19mm) | -40°C ~ 85°C | - | - |
|

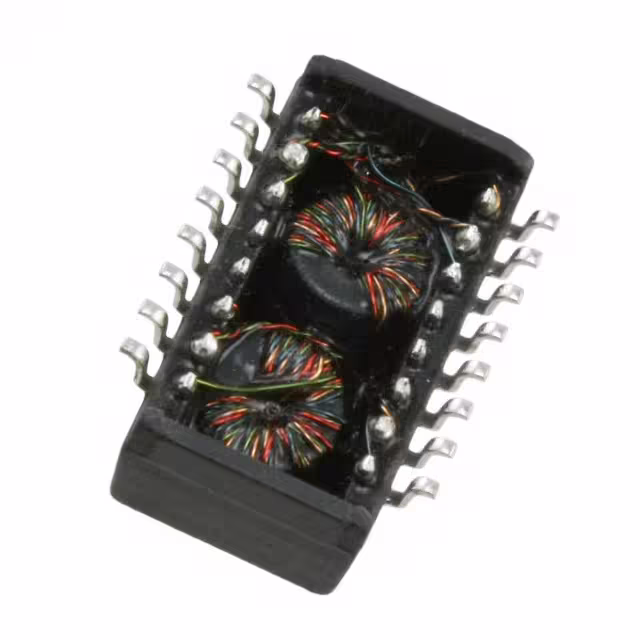

H1197NLXFRMR MAGNT MOD 1PORT POE 10/100 |
3,263 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.500" L x 0.265" W (12.70mm x 6.73mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
HM2102NLXFMR CMC MODULE AECQ BATT MNGT |
2,192 | - |
|
Datasheet | - | Tube | Active | - | 150µH | - | 1:1 | Surface Mount | 0.583" L x 0.580" W (14.81mm x 14.73mm) | 0.197" (5.00mm) | -40°C ~ 125°C | - | - |
|
|
HX1339NLTMDL SIN 100D 1:1 SMT TR |
2,305 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | General Purpose | 350µH | - | 1:1 | Surface Mount | 0.598" L x 0.500" W (15.20mm x 12.70mm) | 0.300" (7.62mm) | -40°C ~ 85°C | - | - |
|
|
PA4375NLCMC GEAR WOUND COIL |
1,686 | - |
|
Datasheet | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
|
LG1P109N LFMDL 1G DIP SINGLE PORT N/A |
2,204 | - |
|
Datasheet | - | Tube | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 0.661" L x 0.335" W (16.80mm x 8.50mm) | 0.457" (11.60mm) | 0°C ~ 70°C | - | - |
|
PM2180.083NLXFMR GATE-DR 8CT:3CT SM NPB |
4,015 | - |
|
Datasheet | PM2180.XXXNL | Tray | Active | Isolation and Data Interface (Encapsulated) | 1.16mH | 23.6VµS | 8:3CT | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | -40°C ~ 125°C | - | - |
|
|
PM2180.021NLXFMR GATE-DR 2CT:1CT SM NPB |
2,960 | - |
|
Datasheet | PM2180.XXXNL | Tray | Active | Isolation and Data Interface (Encapsulated) | 1.16mH | 23.6VµS | 2:1CT | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | -40°C ~ 125°C | - | - |
