Diode Arrays
Use the filters and product table below to compare Diode Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD412599CDIODE MOD GP 2000V 100A POWRBLOK |
9,178 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 2000 V | 100A | 1.65 V @ 330 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 2000 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
CD411699BDIODE MOD GP 1600V 100A POWRBLOK |
9,299 | - |
|
Datasheet | POW-R-BLOK™ | POW-R-BLOK™ Module | Bulk | Obsolete | 1 Pair Series Connection | Standard | 1600 V | 100A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1600 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
CD410899BDIODE MOD GP 800V 100A POWRBLOK |
3,129 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Obsolete | 1 Pair Series Connection | Standard | 800 V | 100A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 800 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
CD411299BDIODE MOD GP 1200V 100A POWRBLOK |
6,083 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Obsolete | 1 Pair Series Connection | Standard | 1200 V | 100A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1200 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
CD411899BDIODE MOD GP 1800V 100A POWRBLOK |
5,553 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Obsolete | 1 Pair Series Connection | Standard | 1800 V | 100A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1800 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
CD610816CDIODE MODULE GP 800V 160A MODULE |
9,833 | - |
|
Datasheet | - | Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 800 V | 160A | - | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 800 V | - | - | - | Chassis Mount | Module |
|
|
CD611216CDIODE MOD GP 1200V 160A MOD |
4,133 | - |
|
Datasheet | - | Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 1200 V | 160A | - | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 1200 V | - | - | - | Screw Mount | Module |
|

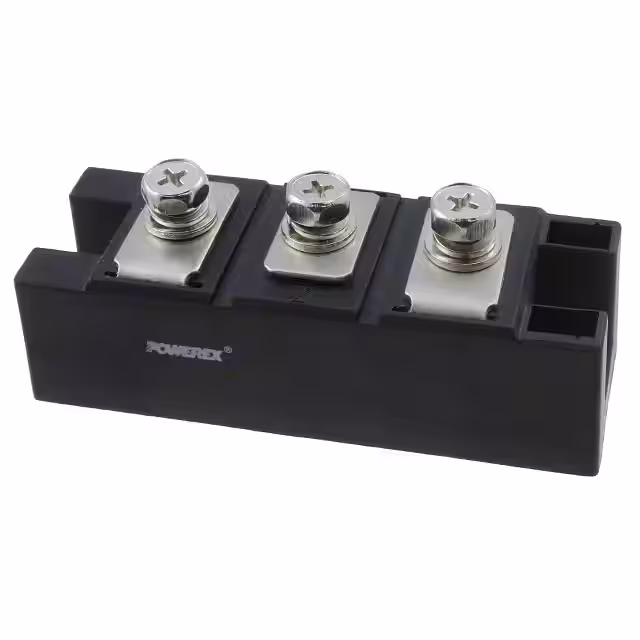

CD611616CDIODE MOD GP 1600V 160A MOD |
3,439 | - |
|
Datasheet | - | Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 1600 V | 160A | - | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 1600 V | -40°C ~ 150°C | - | - | Screw Mount | Module |
|
|
CD412499CDIODE MOD GP 2400V 100A POWRBLOK |
2,701 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Active | 1 Pair Series Connection | Standard | 2400 V | 100A | 1.65 V @ 330 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 2400 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
CD611816CDIODE MOD GP 1800V 160A MOD |
7,597 | - |
|
Datasheet | - | Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 1800 V | 160A | - | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 1800 V | - | - | - | Chassis Mount | Module |
Diode Arrays FAQ
Common questions about filtering, comparing and sourcing Diode Arrays components.
How can I narrow the Diode Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Diode Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
