Diode Arrays
Use the filters and product table below to compare Diode Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ND411826DIODE MOD GP 1800V 260A POWRBLOK |
8,848 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 1800 V | 260A | 1.35 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 1800 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
ND411735DIODE MOD GP 1700V 350A POWRBLOK |
8,290 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 1700 V | 350A | 1.2 V @ 1000 A | Standard Recovery >500ns, > 200mA (Io) | 10 µs | 30 mA @ 1700 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
ND410635DIODE MOD GP 600V 350A POWRBLOK |
8,451 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 600 V | 350A | 1.2 V @ 1000 A | Standard Recovery >500ns, > 200mA (Io) | 10 µs | 30 mA @ 600 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
LDR10866DIODE MODULE GP 660A POWRBLOK |
6,471 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Obsolete | 1 Pair Series Connection | Standard | - | 660A (DC) | 1.4 V @ 1978 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 1800 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
LDR11466DIODE MODULE GP 660A POWRBLOK |
6,573 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Obsolete | 1 Pair Series Connection | Standard | - | 660A (DC) | 1.4 V @ 1978 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 1800 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
QRD1430T30DIODE MOD GP 1400V 177A MOD |
9,759 | - |
|
Datasheet | - | Module | Bulk | Obsolete | 1 Pair Series Connection | Standard | 1400 V | 177A | 3.8 V @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | 300 ns | 1 mA @ 1400 V | - | - | - | Chassis Mount | Module |
|
|
QRD3310007DIODE MOD GP 3300V 127A MOD |
3,842 | - |
|
Datasheet | - | Module, Screw Terminals | Bulk | Obsolete | 1 Pair Series Connection | Standard | 3300 V | 127A | 4.3 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | 1.2 µs | 5 mA @ 3300 V | -40°C ~ 150°C | - | - | Chassis Mount | Module |
|

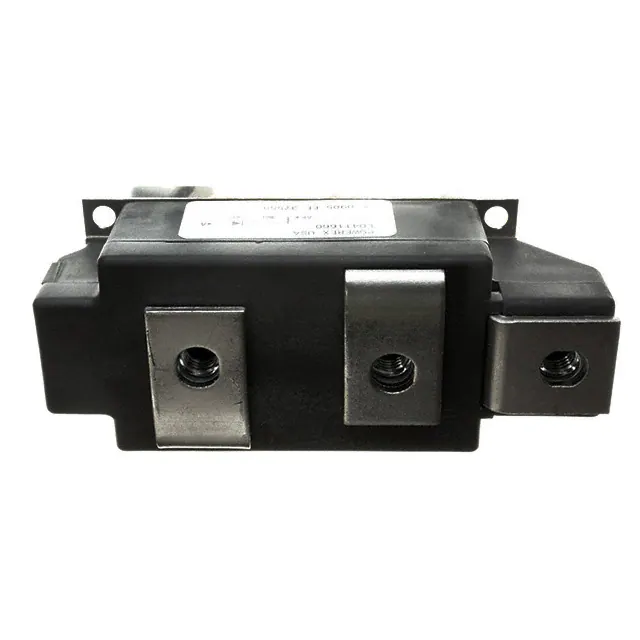

LD410860DIODE MOD GP 800V 600A POWRBLOK |
8,726 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Obsolete | 1 Pair Series Connection | Standard | 800 V | 600A | 1.19 V @ 1800 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 800 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
LD411060DIODE MOD GP 1000V 600A POWRBLOK |
7,274 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Obsolete | 1 Pair Series Connection | Standard | 1000 V | 600A | 1.19 V @ 1800 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 1000 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
LD411260DIODE MOD GP 1200V 600A POWRBLOK |
5,614 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Obsolete | 1 Pair Series Connection | Standard | 1200 V | 600A | 1.19 V @ 1800 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 1200 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module |
Diode Arrays FAQ
Common questions about filtering, comparing and sourcing Diode Arrays components.
How can I narrow the Diode Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Diode Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
