Diode Arrays

Use the filters and product table below to compare Diode Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Diode Configuration	Technology	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If	Speed	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Operating Temperature - Junction	Grade	Qualification	Mounting Type	Supplier Device Package
PN410811 DIODE MOD GP 800V 1200A POWRBLOK Powerex Inc.	7,704	-	RFQ	Datasheet	-	POW-R-BLOK™ Module	Bulk	Discontinued at Digi-Key	1 Pair Common Anode	Standard	800 V	1200A	1.25 V @ 3000 A	Standard Recovery >500ns, > 200mA (Io)	22 µs	200 mA @ 800 V	-40°C ~ 150°C	-	-	Chassis Mount	POW-R-BLOK™ Module
PN411011 DIODE MODULE GP 1000V POWRBLOK Powerex Inc.	7,792	-	RFQ	Datasheet	-	POW-R-BLOK™ Module	Bulk	Discontinued at Digi-Key	1 Pair Common Anode	Standard	1000 V	1200A	1.25 V @ 3000 A	Standard Recovery >500ns, > 200mA (Io)	22 µs	200 mA @ 1000 V	-40°C ~ 150°C	-	-	Chassis Mount	POW-R-BLOK™ Module
PN411211 DIODE MODULE GP 1200V POWRBLOK Powerex Inc.	5,847	-	RFQ	Datasheet	-	POW-R-BLOK™ Module	Bulk	Discontinued at Digi-Key	1 Pair Common Anode	Standard	1200 V	1200A	1.25 V @ 3000 A	Standard Recovery >500ns, > 200mA (Io)	22 µs	200 mA @ 1200 V	-40°C ~ 150°C	-	-	Chassis Mount	POW-R-BLOK™ Module
PD410611 DIODE MOD GP 600V 1100A POWRBLOK Powerex Inc.	9,250	-	RFQ	Datasheet	-	POW-R-BLOK™ Module	Bulk	Discontinued at Digi-Key	1 Pair Series Connection	Standard	600 V	1100A	1.25 V @ 3000 A	Standard Recovery >500ns, > 200mA (Io)	22 µs	200 mA @ 600 V	-	-	-	Chassis Mount	POW-R-BLOK™ Module

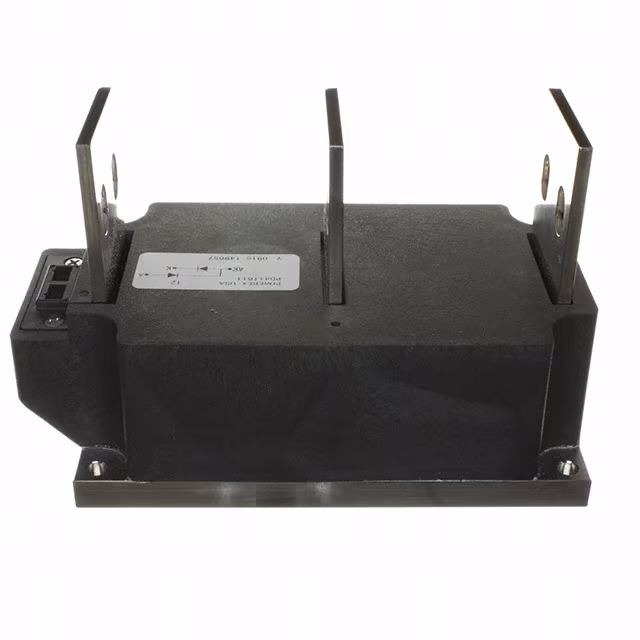

PD411611 DIODE MODULE GP 1600V POWRBLOK Powerex Inc.	3,002	-	RFQ	Datasheet	-	POW-R-BLOK™ Module	Bulk	Discontinued at Digi-Key	1 Pair Series Connection	Standard	1600 V	1100A	-	Standard Recovery >500ns, > 200mA (Io)	22 µs	200 mA @ 1600 V	-40°C ~ 150°C	-	-	Chassis Mount	POW-R-BLOK™ Module
PD411811 DIODE MODULE GP 1800V POWRBLOK Powerex Inc.	6,160	-	RFQ	Datasheet	-	POW-R-BLOK™ Module	Bulk	Discontinued at Digi-Key	1 Pair Series Connection	Standard	1800 V	1100A	1.25 V @ 3000 A	Standard Recovery >500ns, > 200mA (Io)	22 µs	200 mA @ 1800 V	-	-	-	Chassis Mount	POW-R-BLOK™ Module
PN412411 DIODE MODULE GP 2400V POWRBLOK Powerex Inc.	6,493	-	RFQ	Datasheet	-	POW-R-BLOK™ Module	Bulk	Discontinued at Digi-Key	1 Pair Common Anode	Standard	2400 V	1200A	1.25 V @ 3000 A	Standard Recovery >500ns, > 200mA (Io)	22 µs	200 mA @ 2400 V	-40°C ~ 150°C	-	-	Chassis Mount	POW-R-BLOK™ Module
PN412611 DIODE MODULE GP 2600V POWRBLOK Powerex Inc.	3,080	-	RFQ	Datasheet	-	POW-R-BLOK™ Module	Bulk	Discontinued at Digi-Key	1 Pair Common Anode	Standard	2600 V	1200A	1.25 V @ 3000 A	Standard Recovery >500ns, > 200mA (Io)	22 µs	200 mA @ 2600 V	-40°C ~ 150°C	-	-	Chassis Mount	POW-R-BLOK™ Module
PD412211 DIODE MODULE GP 2200V POWRBLOK Powerex Inc.	9,922	-	RFQ	Datasheet	-	POW-R-BLOK™ Module	Bulk	Discontinued at Digi-Key	1 Pair Series Connection	Standard	2200 V	1100A	1.25 V @ 3000 A	Standard Recovery >500ns, > 200mA (Io)	22 µs	200 mA @ 2200 V	-	-	-	Chassis Mount	POW-R-BLOK™ Module
PN413610 DIODE MODULE GP 3600V POWRBLOK Powerex Inc.	6,371	-	RFQ	Datasheet	-	POW-R-BLOK™ Module	Bulk	Discontinued at Digi-Key	1 Pair Common Anode	Standard	3600 V	1100A	1.35 V @ 3000 A	Standard Recovery >500ns, > 200mA (Io)	25 µs	200 mA @ 3600 V	-40°C ~ 150°C	-	-	Chassis Mount	POW-R-BLOK™ Module

WINSUN SOURCING SUPPORT

Need Help Sourcing Diode Arrays?

Send the target part number, manufacturer, specifications and quantity. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and alternative-part options when appropriate.

Availability and lead-time support BOM, shortage and alternative sourcing

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

Diode Arrays FAQ

Common questions about filtering, comparing and sourcing Diode Arrays components.

How can I narrow the Diode Arrays selection?

Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.

Should I confirm the datasheet before selecting a part?

Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.

Can Winsun (HK) Electronics help source a specific Diode Arrays part number?

Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.

Do you support BOM, shortage or alternative-part requirements?

Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
