Diode Arrays
Use the filters and product table below to compare Diode Arrays components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QRF1230R30DIODE MOD GP 1200V 210A MOD |
7,053 | - |
|
Datasheet | - | Module | Bulk | Obsolete | 1 Pair Common Anode | Standard | 1200 V | 210A (DC) | 3.5 V @ 210 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 1 mA @ 1200 V | -40°C ~ 150°C | - | - | Chassis Mount | Module |
|
|
QRD0640R30DIODE MODULE GP 600V 280A MODULE |
2,923 | - |
|
Datasheet | - | Module | Bulk | Obsolete | 1 Pair Series Connection | Standard | 600 V | 280A (DC) | 2.5 V @ 280 A | Fast Recovery =< 500ns, > 200mA (Io) | 120 ns | 1 mA @ 600 V | -40°C ~ 150°C | - | - | Chassis Mount | Module |
|
|
QRC0640R30DIODE MODULE GP 600V 280A MODULE |
6,191 | - |
|
Datasheet | - | Module | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 280A (DC) | 2.5 V @ 280 A | Fast Recovery =< 500ns, > 200mA (Io) | 120 ns | 1 mA @ 600 V | -40°C ~ 150°C | - | - | Chassis Mount | Module |
|
|
QRF0640R30DIODE MODULE GP 600V 280A MODULE |
9,045 | - |
|
Datasheet | - | Module | Bulk | Obsolete | 1 Pair Common Anode | Standard | 600 V | 280A (DC) | 2.5 V @ 280 A | Fast Recovery =< 500ns, > 200mA (Io) | 120 ns | 1 mA @ 600 V | -40°C ~ 150°C | - | - | Chassis Mount | Module |
|
|
ND410826DIODE MOD GP 800V 260A POWRBLOK |
8,457 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 800 V | 260A | 1.35 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 800 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module |
|

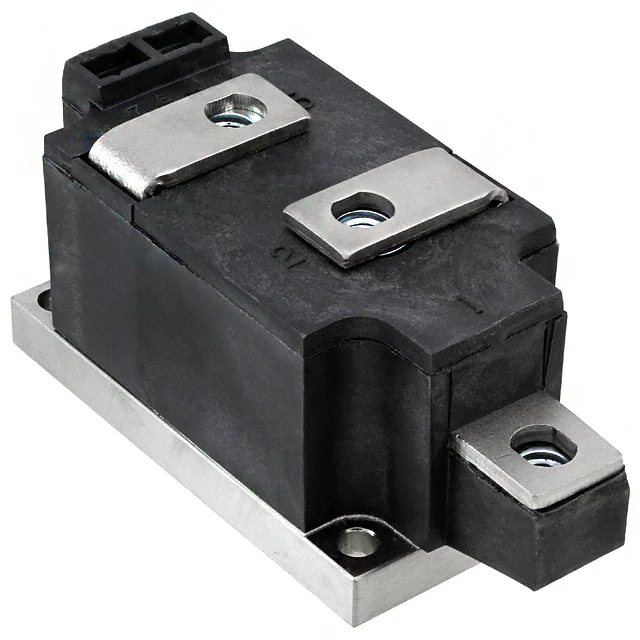

ND411226DIODE MOD GP 1200V 260A POWRBLOK |
6,286 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 1200 V | 260A | 1.35 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 1200 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
ND411426DIODE MOD GP 1400V 260A POWRBLOK |
7,453 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 1400 V | 260A | 1.35 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 1400 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
ND411235DIODE MOD GP 1200V 350A POWRBLOK |
8,655 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 1200 V | 350A | 1.2 V @ 1000 A | Standard Recovery >500ns, > 200mA (Io) | 10 µs | 30 mA @ 1200 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
ND412026DIODE MOD GP 2000V 260A POWRBLOK |
9,489 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 2000 V | 260A | 1.35 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 2000 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
ND411626DIODE MOD GP 1600V 260A POWRBLOK |
2,233 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 1600 V | 260A | - | Standard Recovery >500ns, > 200mA (Io) | 10 µs | 50 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
Diode Arrays FAQ
Common questions about filtering, comparing and sourcing Diode Arrays components.
How can I narrow the Diode Arrays selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Diode Arrays part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
