Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N3210DIODE GEN PURP 200V 15A DO203AB |
3 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 200 V | 15A | 1.5 V @ 15 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 50 V | - | - | - | Stud Mount | DO-203AB (DO-5) | -65°C ~ 175°C |
|

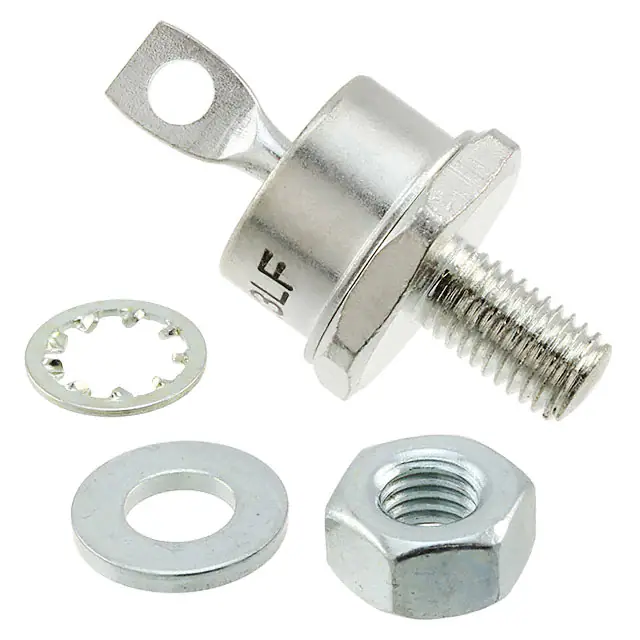

1N3214DIODE GEN PURP 600V 15A DO5 |
6,268 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 600 V | 15A | 1.5 V @ 15 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -65°C ~ 175°C |
|
|
S85JDIODE GEN PURP 600V 85A DO5 |
9,647 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 600 V | 85A | 1.1 V @ 85 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -65°C ~ 180°C |
|

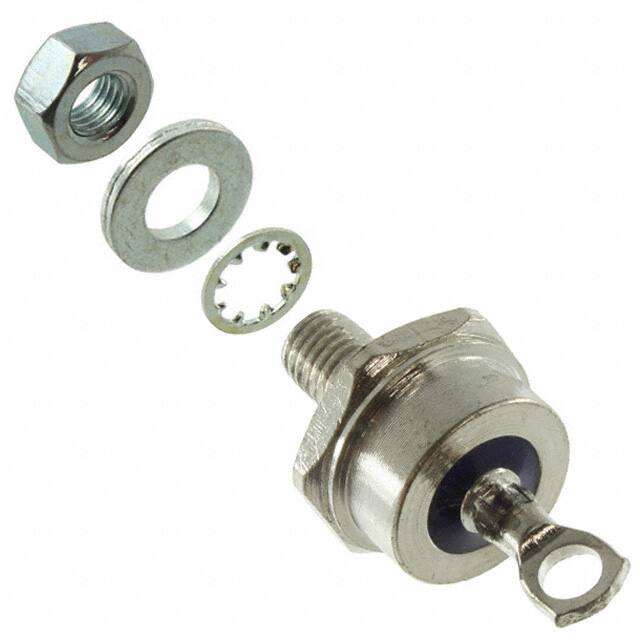

S85VRDIODE GEN PURP REV 1.4KV 85A DO5 |
3,238 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 1400 V | 85A | 1.1 V @ 85 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -65°C ~ 150°C |
|
1N6095RDIODE SCHOTTKY REV 30V 25A DO4 |
9,251 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Schottky, Reverse Polarity | 30 V | 25A | 580 mV @ 25 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 20 V | - | - | - | Chassis, Stud Mount | DO-4 | -55°C ~ 150°C |
|
MBR8045DIODE SCHOTTKY 45V 80A DO5 |
6,951 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Schottky | 45 V | 80A | 650 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | - | - | - | Chassis, Stud Mount | DO-5 | -55°C ~ 150°C |
|

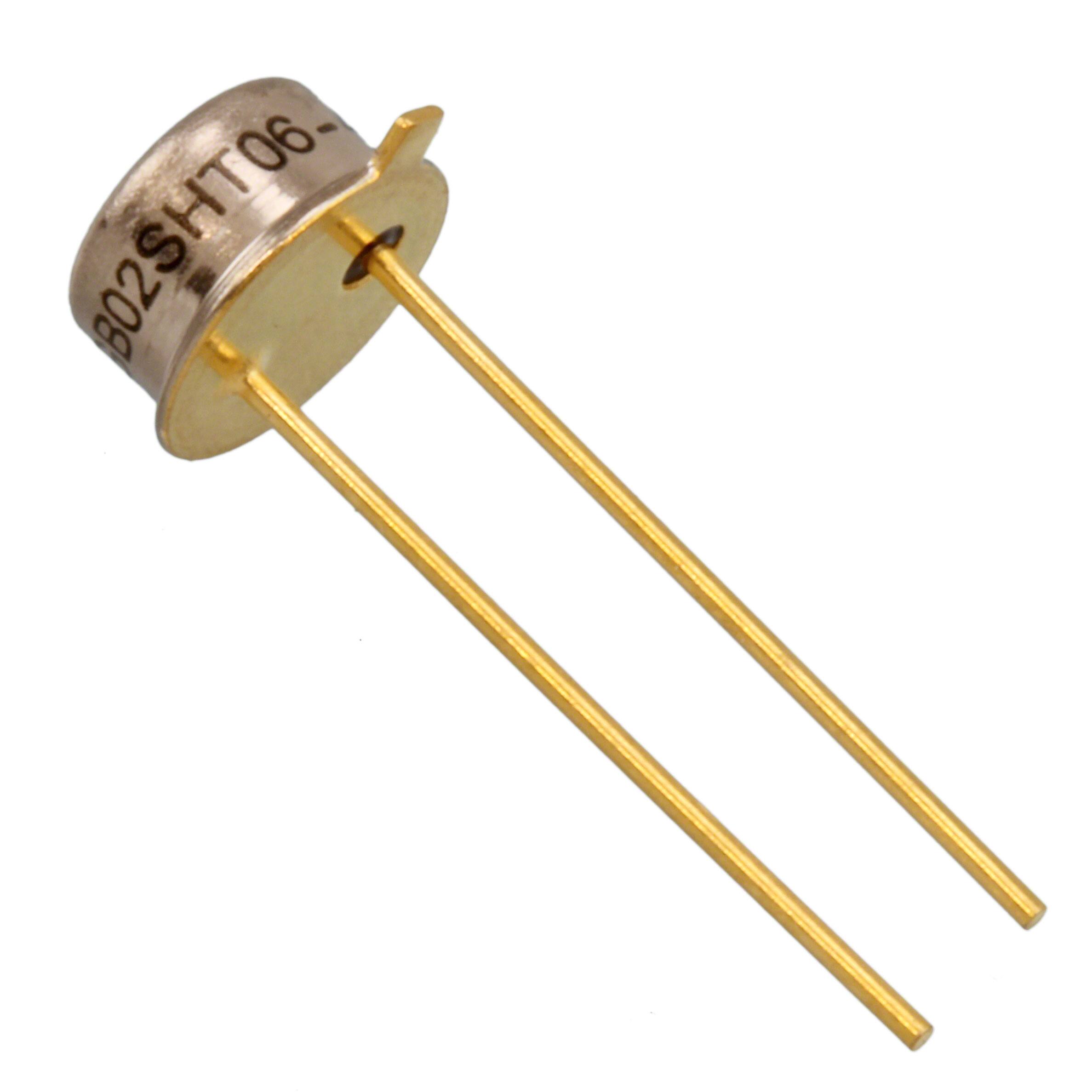

GB02SHT06-46DIODE SIL CARBIDE 600V 4A TO46 |
8,914 | - |
|
Datasheet | - | TO-206AB, TO-46-3 Metal Can | Bulk | Active | SiC (Silicon Carbide) Schottky | 600 V | 4A | 1.6 V @ 1 A | No Recovery Time > 500mA (Io) | 0 ns | 5 µA @ 600 V | 76pF @ 1V, 1MHz | - | - | Through Hole | TO-46 | -55°C ~ 225°C |
|

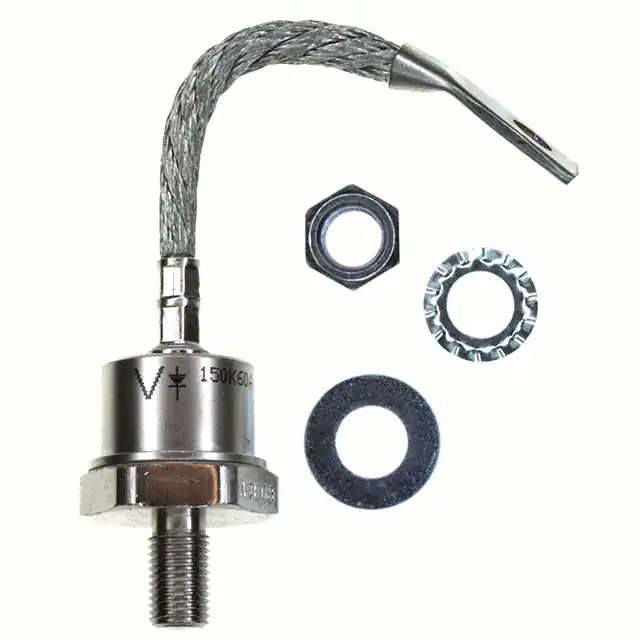

150KR60ADIODE GP REV 600V 150A DO205AA |
4,556 | - |
|
Datasheet | - | DO-205AA, DO-8, Stud | Bulk | Active | Standard, Reverse Polarity | 600 V | 150A | 1.33 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 35 mA @ 600 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -40°C ~ 200°C |
|

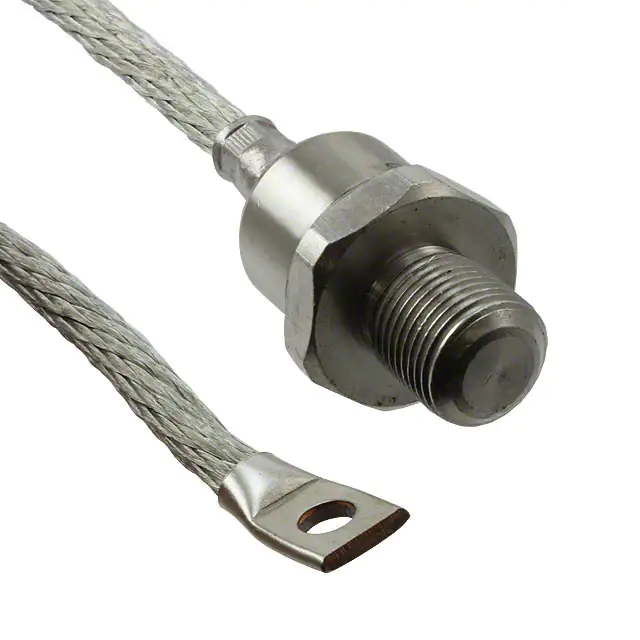

S300YRDIODE GP REV 1.6KV 300A DO9 |
2,041 | - |
|
Datasheet | - | DO-205AB, DO-9, Stud | Bulk | Active | Standard, Reverse Polarity | 1600 V | 300A | 1.2 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1600 V | - | - | - | Chassis, Stud Mount | DO-9 | -60°C ~ 180°C |
|
S380YDIODE GP 1.6KV 380A DO205AB DO9 |
1 | - |
|
Datasheet | - | DO-205AB, DO-9, Stud | Bulk | Active | Standard | 1600 V | 380A | 1.2 V @ 380 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1600 V | - | - | - | Chassis, Stud Mount | DO-205AB (DO-9) | -60°C ~ 180°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
