Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

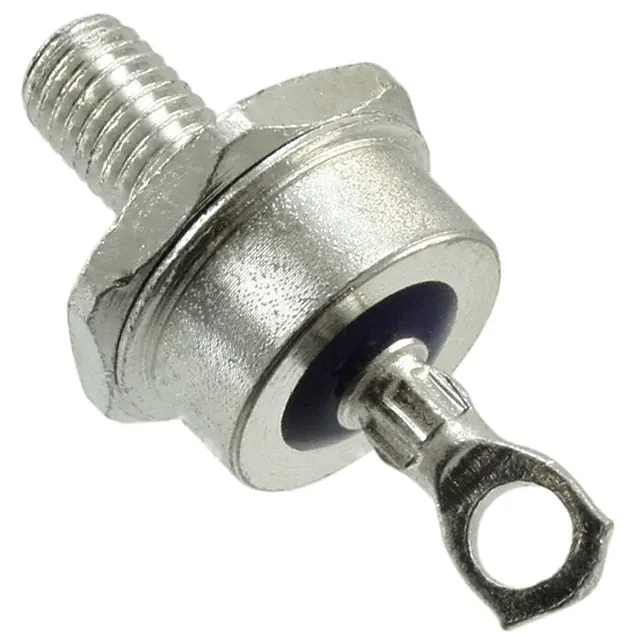

S85QDIODE GEN PURP 1.2KV 85A DO5 |
370 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 1200 V | 85A | 1.1 V @ 85 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -65°C ~ 180°C |
|
1N3881RDIODE GEN PURP REV 200V 6A DO4 |
512 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 200 V | 6A | 1.4 V @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 15 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-4 | -65°C ~ 150°C |
|
|
1N3879RDIODE GEN PURP REV 50V 6A DO4 |
236 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 50 V | 6A | 1.4 V @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 15 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-4 | -65°C ~ 150°C |
|
|
1N3889RDIODE GEN PURP REV 50V 12A DO4 |
150 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 50 V | 12A | 1.4 V @ 12 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 25 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-4 | -65°C ~ 150°C |
|

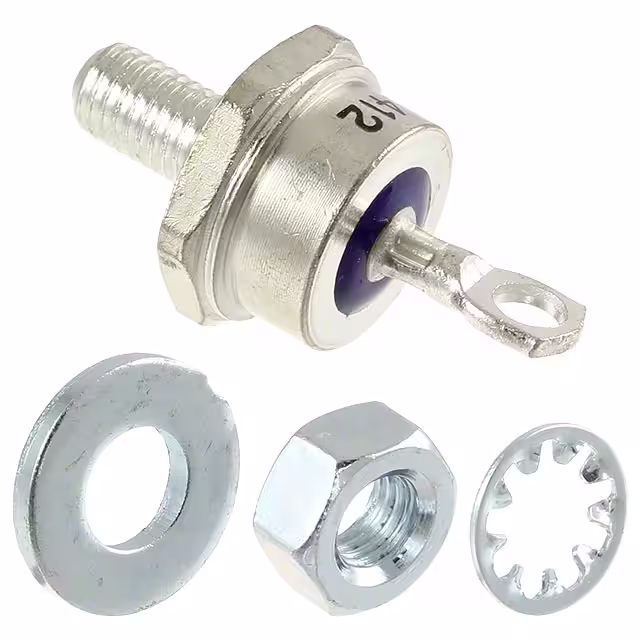

S85YRDIODE GEN PURP REV 1.6KV 85A DO5 |
208 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 1600 V | 85A | 1.1 V @ 85 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -65°C ~ 150°C |
|
FR40MR05DIODE GEN PURP REV 1KV 40A DO5 |
155 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 1000 V | 40A | 1 V @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
MBRH12040RDIODE SCHOTTKY REV 40V 120A D-67 |
44 | - |
|
Datasheet | - | D-67 HALF-PAK | Bulk | Active | Schottky, Reverse Polarity | 40 V | 120A | 700 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 40 V | - | - | - | Chassis Mount | D-67 | -55°C ~ 150°C |
|
|
MBRH20045RDIODE SCHOTTKY REV 45V 200A D-67 |
62 | - |
|
Datasheet | - | D-67 | Bulk | Active | Schottky, Reverse Polarity | 45 V | 200A | 700 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | - | - | - | Chassis Mount | D-67 | -55°C ~ 150°C |
|
|
MBRH20045DIODE SCHOTTKY 45V 200A D-67 |
52 | - |
|
Datasheet | - | D-67 | Bulk | Active | Schottky | 45 V | 200A | 650 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 20 V | - | - | - | Chassis Mount | D-67 | - |
|
GD30MPS06JDIODE SIL CARB 650V 51A TO263-7 |
540 | - |
|
Datasheet | SiC Schottky MPS™ | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tube | Active | SiC (Silicon Carbide) Schottky | 650 V | 51A | - | No Recovery Time > 500mA (Io) | - | - | 735pF @ 1V, 1MHz | - | - | Surface Mount | TO-263-7 | -55°C ~ 175°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
