Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GD30MPS12J-TRDIODE SIL CARB 1.2KV 59A TO263-7 |
2,036 | - |
|
Datasheet | SiC Schottky MPS™ | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | SiC (Silicon Carbide) Schottky | 1200 V | 59A | 1.8 V @ 30 A | No Recovery Time > 500mA (Io) | 0 ns | 20 µA @ 1200 V | 1101pF @ 1V, 1MHz | - | - | Surface Mount | TO-263-7 | -55°C ~ 175°C |
|
GD15MPS17HDIODE SIL CARB 1.7KV 36A TO247-2 |
1,214 | - |
|
Datasheet | SiC Schottky MPS™ | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1700 V | 36A | 1.8 V @ 15 A | No Recovery Time > 500mA (Io) | 0 ns | 20 µA @ 1700 V | 1082pF @ 1V, 1MHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
GD50MPS12HDIODE SIL CARB 1.2KV 92A TO247-2 |
124 | - |
|
Datasheet | SiC Schottky MPS™ | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 92A | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 15 µA @ 1200 V | 1835pF @ 1V, 1MHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
|
GD10MPS12HDIODE SIL CARB 1.2KV 10A TO247-2 |
540 | - |
|
Datasheet | SiC Schottky MPS™ | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 10A | - | No Recovery Time > 500mA (Io) | 0 ns | - | - | - | - | Through Hole | TO-247-2 | 175°C |
|
|
GD30MPS06HDIODE SIL CARB 650V 49A TO247-2 |
614 | - |
|
Datasheet | SiC Schottky MPS™ | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 650 V | 49A | - | No Recovery Time > 500mA (Io) | - | - | 735pF @ 1V, 1MHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
|
GD20MPS12ADIODE SIL CARB 1.2KV 42A TO220-2 |
2,307 | - |
|
Datasheet | SiC Schottky MPS™ | TO-220-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 42A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 10 µA @ 1200 V | 737pF @ 1V, 1MHz | - | - | Through Hole | TO-220-2 | -55°C ~ 175°C |
|
|
1N3891DIODE GEN PURP 200V 12A DO4 |
887 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 200 V | 12A | 1.4 V @ 12 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 25 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-4 | -65°C ~ 150°C |
|
|
1N1184DIODE GEN PURP 100V 35A DO5 |
191 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 100 V | 35A | 1.2 V @ 35 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -65°C ~ 190°C |
|
1N1184ADIODE GEN PURP 100V 40A DO5 |
260 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 100 V | 40A | 1.1 V @ 40 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -65°C ~ 200°C |
|

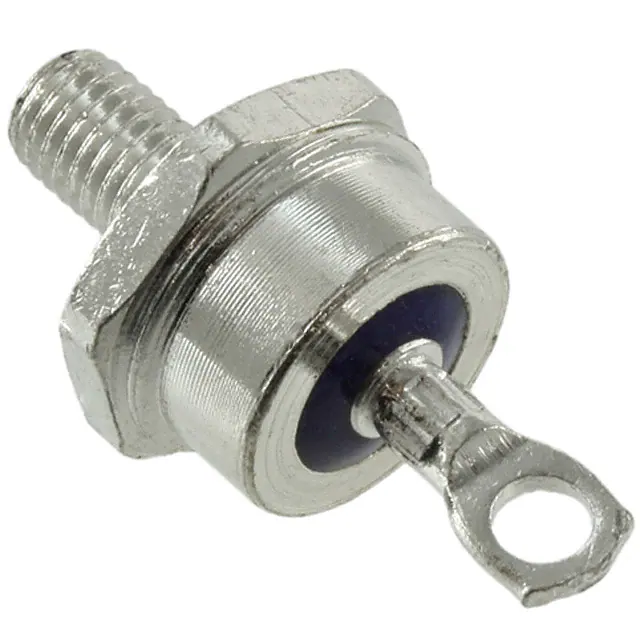

1N2130ARDIODE GEN PURP REV 150V 60A DO5 |
245 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 150 V | 60A | 1.1 V @ 60 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -65°C ~ 200°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
