Single Diodes
Use the filters and product table below to compare Single Diodes components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GD25MPS17HDIODE SIL CARB 1.7KV 56A TO247-2 |
1,285 | - |
|
Datasheet | SiC Schottky MPS™ | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1700 V | 56A | 1.8 V @ 25 A | No Recovery Time > 500mA (Io) | 0 ns | 20 µA @ 1700 V | 1083pF @ 1V, 1MHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
GC05MPS33JDIODE SIL CARB 3.3KV 5A TO263-7 |
1,114 | - |
|
Datasheet | SiC Schottky MPS™ | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tube | Active | SiC (Silicon Carbide) Schottky | 3300 V | 5A | - | No Recovery Time > 500mA (Io) | 0 ns | - | - | - | - | Surface Mount | TO-263-7 | 175°C |
|

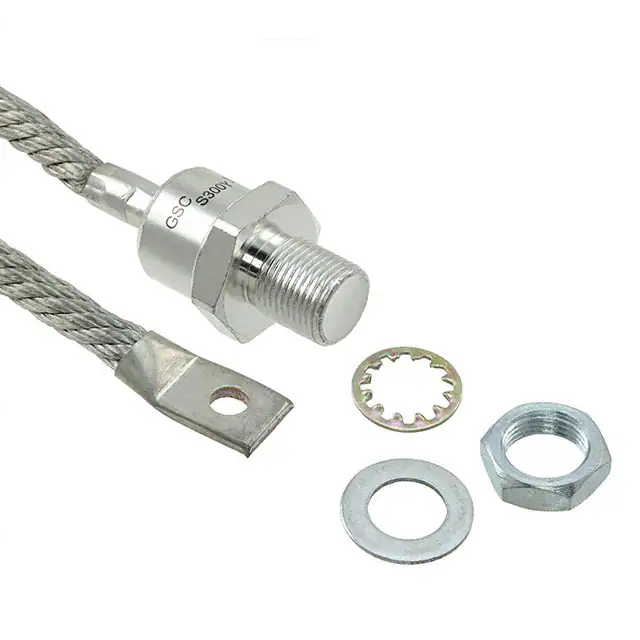

S300YDIODE GEN PURP 1.6KV 300A DO9 |
54 | - |
|
Datasheet | - | DO-205AB, DO-9, Stud | Bulk | Active | Standard | 1600 V | 300A | 1.2 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1600 V | - | - | - | Chassis, Stud Mount | DO-9 | -60°C ~ 180°C |
|
|
GC50MPS33HDIODE SIL CARB 3.3KV 50A TO247-2 |
78 | - |
|
Datasheet | SiC Schottky MPS™ | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 3300 V | 50A | - | No Recovery Time > 500mA (Io) | 0 ns | - | - | - | - | Through Hole | TO-247-2 | 175°C |
|
GD02MPS12EDIODE SIL CARB 1.2KV 8A TO252-2 |
2,809 | - |
|
Datasheet | SiC Schottky MPS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | SiC (Silicon Carbide) Schottky | 1200 V | 8A | 1.8 V @ 2 A | No Recovery Time > 500mA (Io) | 0 ns | 5 µA @ 1200 V | 73pF @ 1V, 1MHz | - | - | Surface Mount | TO-252-2 | -55°C ~ 175°C |
|
|
GD30MPS06ADIODE SIL CARB 650V 30A TO220-2 |
1,744 | - |
|
Datasheet | SiC Schottky MPS™ | TO-220-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 650 V | 30A | - | No Recovery Time > 500mA (Io) | 0 ns | - | - | - | - | Through Hole | TO-220-2 | 175°C |
|
|
1N3881DIODE GEN PURP 200V 6A DO4 |
414 | - |
|
Datasheet | - | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 200 V | 6A | 1.4 V @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 15 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-4 | -65°C ~ 150°C |
|
|
GD20MPS12HDIODE SIL CARB 1.2KV 39A TO247-2 |
2,961 | - |
|
Datasheet | SiC Schottky MPS™ | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 39A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 10 µA @ 1200 V | 737pF @ 1V, 1MHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
GD30MPS12HDIODE SIL CARB 1.2KV 55A TO247-2 |
503 | - |
|
Datasheet | SiC Schottky MPS™ | TO-247-2 | Tube | Active | SiC (Silicon Carbide) Schottky | 1200 V | 55A | 1.8 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 µA @ 1200 V | 1101pF @ 1V, 1MHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
|
1N1190ARDIODE GEN PURP REV 600V 40A DO5 |
869 | - |
|
Datasheet | - | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 600 V | 40A | 1.1 V @ 40 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 50 V | - | - | - | Chassis, Stud Mount | DO-5 | -65°C ~ 190°C |
Single Diodes FAQ
Common questions about filtering, comparing and sourcing Single Diodes components.
How can I narrow the Single Diodes selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Single Diodes part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
