Resonators
Browse available Resonators part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Features | Capacitance | Impedance | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AWSCR-2.00CPLA-C15-T4CERAMIC RES 2.0000MHZ 15PF SMD |
2,788 | - |
|
Datasheet | AWSCR-CPLA | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 2 MHz | ±0.3% | ±0.5% | Built in Capacitor | 15 pF | 100 Ohms | -40°C ~ 85°C | Surface Mount | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.071" (1.80mm) |
|
CSTLS3M58G53-B0CERAMIC RES 3.5800MHZ 15PF T/H |
7,450 | - |
|
Datasheet | CERALOCK® CSTLS | Radial - 3 Lead, 2.50mm Pitch | Bulk | Active | Ceramic | 3.58 MHz | ±0.2% | ±0.5% | Built in Capacitor | 15 pF | 50 Ohms | -20°C ~ 80°C | Through Hole | 0.315" L x 0.118" W (8.00mm x 3.00mm) | 0.236" (6.00mm) |
|
|
CSTLS7M20G53-A0CERAMIC RES 7.2000MHZ 15PF T/H |
3,408 | - |
|
Datasheet | CERALOCK® CSTLS | Radial - 3 Lead, 2.50mm Pitch | Cut Tape (CT) | Active | Ceramic | 7.2 MHz | ±0.2% | ±0.5% | Built in Capacitor | 15 pF | 30 Ohms | -20°C ~ 80°C | Through Hole | 0.315" L x 0.118" W (8.00mm x 3.00mm) | 0.236" (6.00mm) |
|
|
CSTLS9M83G56-B0CER RESONATOR |
2,728 | - |
|
Datasheet | CERALOCK® CSTLS | Radial - 3 Lead, 2.50mm Pitch | Bulk | Active | Ceramic | 9.83 MHz | -0.4, +0.2% | ±0.5% | Built in Capacitor | 47 pF | 25 Ohms | -20°C ~ 80°C | Through Hole | 0.315" L x 0.118" W (8.00mm x 3.00mm) | 0.236" (6.00mm) |
|
CSTLS24M0X51-B024.0MHZ CERAMIC RESONATOR (CERAL |
1,269 | - |
|
Datasheet | CERALOCK® CSTLS | Radial - 3 Lead, 2.50mm Pitch | Bulk | Active | Ceramic | 24 MHz | ±0.2% | ±0.5% | Built in Capacitor | 5 pF | 50 Ohms | -20°C ~ 80°C | Through Hole | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.276" (7.00mm) |
|
|
CSTLS3M52G53-B0CER RESONATOR T/H |
2,886 | - |
|
Datasheet | CERALOCK® CSTLS | Radial - 3 Lead, 2.50mm Pitch | Bulk | Active | Ceramic | 3.52 MHz | ±0.2% | ±0.5% | Built in Capacitor | 15 pF | 50 Ohms | -20°C ~ 80°C | Through Hole | 0.315" L x 0.118" W (8.00mm x 3.00mm) | 0.236" (6.00mm) |
|
|
CSTLS3M64G53-B0CER RESONATOR T/H |
6,083 | - |
|
Datasheet | CERALOCK® CSTLS | Radial - 3 Lead, 2.50mm Pitch | Bulk | Active | Ceramic | 3.64 MHz | ±0.2% | ±0.5% | Built in Capacitor | 15 pF | 50 Ohms | -20°C ~ 80°C | Through Hole | 0.315" L x 0.118" W (8.00mm x 3.00mm) | 0.236" (6.00mm) |
|
|
CSTLS4M19G56-B0CER RESONATOR T/H |
3,758 | - |
|
Datasheet | CERALOCK® CSTLS | Radial - 3 Lead, 2.50mm Pitch | Bulk | Active | Ceramic | 4.194 MHz | -0.4, +0.2% | ±0.5% | Built in Capacitor | 47 pF | 30 Ohms | -20°C ~ 80°C | Through Hole | 0.315" L x 0.118" W (8.00mm x 3.00mm) | 0.236" (6.00mm) |
|
|
CSTLS5M00G56-B0CER RESONATOR T/H |
6,539 | - |
|
Datasheet | CERALOCK® CSTLS | Radial - 3 Lead, 2.50mm Pitch | Bulk | Active | Ceramic | 5 MHz | -0.4, +0.2% | ±0.5% | Built in Capacitor | 47 pF | 30 Ohms | -20°C ~ 80°C | Through Hole | 0.315" L x 0.118" W (8.00mm x 3.00mm) | 0.236" (6.00mm) |
|
|
CSTLS9M00G53-B09.0MHZ CERAMIC RESONATOR (CERALO |
3,423 | - |
|
Datasheet | CERALOCK® CSTLS | Radial - 3 Lead, 2.50mm Pitch | Bulk | Active | Ceramic | 9 MHz | ±0.2% | ±0.5% | Built in Capacitor | 15 pF | 25 Ohms | -20°C ~ 80°C | Through Hole | 0.315" L x 0.118" W (8.00mm x 3.00mm) | 0.236" (6.00mm) |
|
|
CSTLS16M9X53-B016.934MHZ CERAMIC RESONATOR (CER |
3,500 | - |
|
Datasheet | CERALOCK® CSTLS | Radial - 3 Lead, 2.50mm Pitch | Bulk | Active | Ceramic | 16.934 MHz | ±0.2% | ±0.5% | Built in Capacitor | 15 pF | 50 Ohms | -20°C ~ 80°C | Through Hole | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.276" (7.00mm) |
|
|
CSTLS16M5X53-B016.5MHZ CERAMIC RESONATOR (CERAL |
5,231 | - |
|
Datasheet | CERALOCK® CSTLS | Radial - 3 Lead, 2.50mm Pitch | Bulk | Active | Ceramic | 16.5 MHz | ±0.2% | ±0.5% | Built in Capacitor | 15 pF | 50 Ohms | -20°C ~ 80°C | Through Hole | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.276" (7.00mm) |
|
|
CSTLS16M9X54-B016.934MHZ CERAMIC RESONATOR (CER |
5,656 | - |
|
Datasheet | CERALOCK® CSTLS | Radial - 3 Lead, 2.50mm Pitch | Bulk | Active | Ceramic | 16.934 MHz | ±0.2% | ±0.5% | Built in Capacitor | 22 pF | 50 Ohms | -20°C ~ 80°C | Through Hole | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.276" (7.00mm) |
|
CSTNE16M9V53L000R03.2X1.3MM 16.934MHZ CERAMIC RESO |
2,586 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 16.934 MHz | ±0.2% | ±0.5% | Built in Capacitor | 15 pF | 40 Ohms | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|

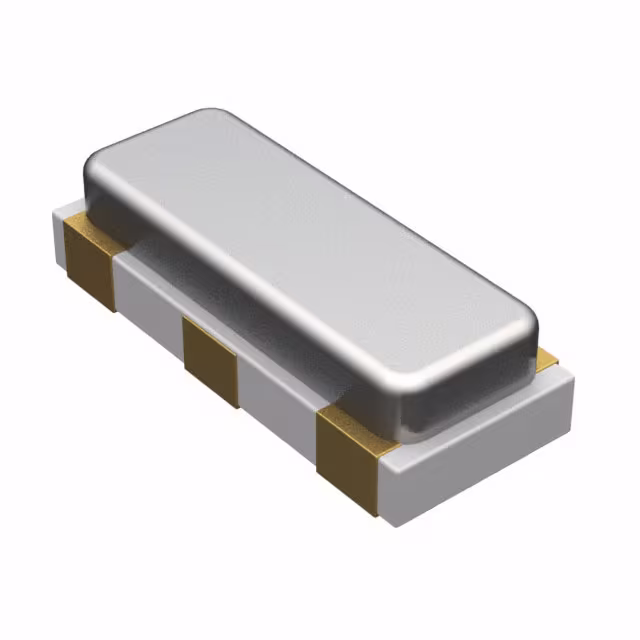

CSTNE8M38G550000R0CERAMIC RES 8.3880MHZ 33PF SMD |
9,963 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 8.388 MHz | ±0.2% | ±0.5% | Built in Capacitor | 33 pF | - | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.031" (0.80mm) |
|
|
CSTNE19M2V53L000R03.2X1.3MM 19.2MHZ CERAMIC RESONA |
8,056 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 19.2 MHz | ±0.2% | ±0.5% | Built in Capacitor | 15 pF | 40 Ohms | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
|
CSTNE14M0V53L000R03.2X1.3MM 14.0MHZ CERAMIC RESONA |
8,394 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 14 MHz | ±0.2% | ±0.5% | Built in Capacitor | 15 pF | 40 Ohms | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
|
CSTNE17M0V53L000R03.2X1.3MM 17.0MHZ CERAMIC RESONA |
7,800 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 17 MHz | ±0.2% | ±0.5% | Built in Capacitor | 15 pF | 40 Ohms | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
|
CSTNE19M8V53L000R03.2X1.3MM 19.8MHZ CERAMIC RESONA |
3,821 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 19.8 MHz | ±0.2% | ±0.5% | Built in Capacitor | 15 pF | 40 Ohms | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
|
CSTNE18M0V53L000R03.2X1.3MM 18.0MHZ CERAMIC RESONA |
9,702 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 18 MHz | ±0.2% | ±0.5% | Built in Capacitor | 15 pF | 40 Ohms | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
Resonators FAQ
Common questions about selecting, comparing and sourcing Resonators components through Winsun (HK) Electronics.
What should I check when selecting Resonators components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Resonators part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Resonators parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Resonators components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
