Resonators
Browse available Resonators part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency | Frequency Stability | Frequency Tolerance | Features | Capacitance | Impedance | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSTNE16M8V53L000R03.2X1.3MM 16.8MHZ CERAMIC RESONA |
3,051 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 16.8 MHz | ±0.2% | ±0.5% | Built in Capacitor | 15 pF | 40 Ohms | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
|
CSTNE14M3V53L000R03.2X1.3MM 14.318MHZ CERAMIC RESO |
8,148 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 14.318 MHz | ±0.2% | ±0.5% | Built in Capacitor | 15 pF | 40 Ohms | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
|
CSTNE16M5V53L000R03.2X1.3MM 16.5MHZ CERAMIC RESONA |
5,587 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 16.5 MHz | ±0.2% | ±0.5% | Built in Capacitor | 15 pF | 40 Ohms | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
|
CSTNE15M0V53L000R03.2X1.3MM 15.0MHZ CERAMIC RESONA |
9,490 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 15 MHz | ±0.2% | ±0.5% | Built in Capacitor | 15 pF | 40 Ohms | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
|
CSTNE16M3V53L000R03.2X1.3MM 16.384MHZ CERAMIC RESO |
4,692 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 16.384 MHz | ±0.2% | ±0.5% | Built in Capacitor | 15 pF | 40 Ohms | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
|
CSTNE17M2V53L000R03.2X1.3MM 17.2MHZ CERAMIC RESONA |
8,990 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 17.2 MHz | ±0.2% | ±0.5% | Built in Capacitor | 15 pF | 40 Ohms | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.039" (1.00mm) |
|
CSTNE12M5G55Z000R0CERAMIC RES 12.5000MHZ 33PF SMD |
4,874 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 12.5 MHz | ±0.2% | ±0.5% | Built in Capacitor | 33 pF | - | -40°C ~ 125°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.031" (0.80mm) |
|
CSTLS16M9X54-A016.934MHZ CERAMIC RESONATOR (CER |
3,399 | - |
|
Datasheet | CERALOCK® CSTLS | Radial - 3 Lead, 2.50mm Pitch | Cut Tape (CT) | Active | Ceramic | 16.934 MHz | ±0.2% | ±0.5% | Built in Capacitor | 22 pF | 50 Ohms | -20°C ~ 80°C | Through Hole | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.276" (7.00mm) |
|
AWSZT-25.00CV-TCERAMIC RES 25.0000MHZ SMD |
3,846 | - |
|
Datasheet | AWSZT-CV | 1512 (3731 Metric) | Tape & Reel (TR) | Active | Ceramic | 25 MHz | ±0.3% | ±0.5% | - | - | 40 Ohms | -25°C ~ 85°C | Surface Mount | 0.146" L x 0.122" W (3.70mm x 3.10mm) | 0.047" (1.19mm) |
|
|
CSTLS20M0X51Z-B0CERAMIC RES 20.0000MHZ 5PF T/H |
8,376 | - |
|
Datasheet | CERALOCK® CSTLS | Radial - 3 Lead, 2.50mm Pitch | Bulk | Active | Ceramic | 20 MHz | ±0.2% | ±0.5% | Built in Capacitor | 5 pF | - | -40°C ~ 125°C | Through Hole | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.276" (7.00mm) |
|

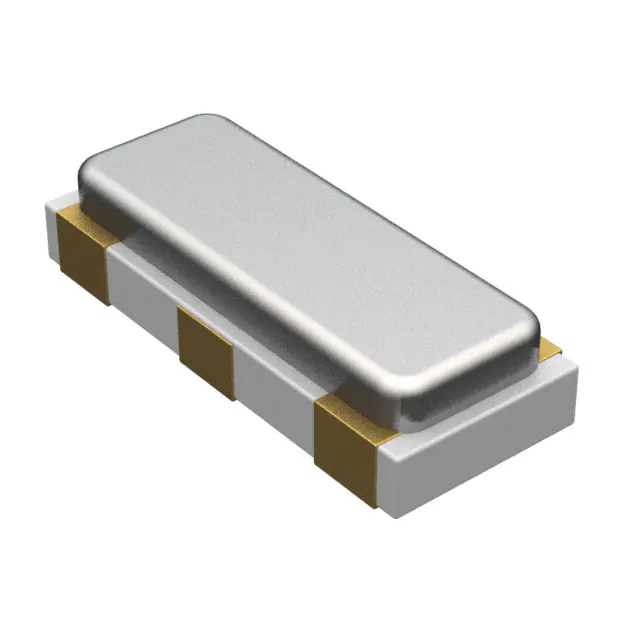

CSTNE19M2VH3L000R0CERAMIC RES 19.2000MHZ 15PF SMD |
5,681 | - |
|
Datasheet | CERALOCK® CSTNE | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 19.2 MHz | ±0.11% | ±0.07% | Built in Capacitor | 15 pF | - | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.051" W (3.20mm x 1.30mm) | 0.031" (0.80mm) |
|
|
CSTLS18M0X51-A018.0MHZ CERAMIC RESONATOR (CERAL |
9,277 | - |
|
Datasheet | CERALOCK® CSTLS | Radial - 3 Lead, 2.50mm Pitch | Cut Tape (CT) | Active | Ceramic | 18 MHz | ±0.2% | ±0.5% | Built in Capacitor | 5 pF | 50 Ohms | -20°C ~ 80°C | Through Hole | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.276" (7.00mm) |
|
|
CSTLS33M0X51-A033.333MHZ CERAMIC RESONATOR (CER |
3,345 | - |
|
Datasheet | CERALOCK® CSTLS | Radial - 3 Lead, 2.50mm Pitch | Cut Tape (CT) | Active | Ceramic | 33.333 MHz | ±0.2% | ±0.5% | Built in Capacitor | 5 pF | 40 Ohms | -20°C ~ 80°C | Through Hole | 0.217" L x 0.118" W (5.50mm x 3.00mm) | 0.276" (7.00mm) |
|
|
CSTLS33M8X53-A033.333MHZ CERAMIC RESONATOR (CER |
2,893 | - |
|
Datasheet | CERALOCK® CSTLS | Radial - 3 Lead, 2.50mm Pitch | Cut Tape (CT) | Active | Ceramic | 33.333 MHz | ±0.2% | ±0.5% | Built in Capacitor | 15 pF | 40 Ohms | -20°C ~ 80°C | Through Hole | 0.217" L x 0.118" W (5.50mm x 3.00mm) | 0.276" (7.00mm) |
|
ECS-CR2-16.00-A-TRCERAMIC RES 16.0000MHZ SMD |
4,949 | - |
|
Datasheet | CR2 | 1512 (3731 Metric) | Tape & Reel (TR) | Active | Ceramic | 16 MHz | ±0.3% | ±0.5% | - | - | - | -20°C ~ 80°C | Surface Mount | 0.146" L x 0.122" W (3.70mm x 3.10mm) | 0.059" (1.50mm) |
|
CSTNR4M19GH5L000R0CERAMIC RES 4.1940MHZ 39PF SMD |
2,429 | - |
|
Datasheet | CERALOCK® CSTNR | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 4.194 MHz | ±0.11% | ±0.07% | Built in Capacitor | 39 pF | - | -25°C ~ 85°C | Surface Mount | 0.177" L x 0.079" W (4.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
CSTNR4M91GH5C000R0CERAMIC RES 4.9150MHZ 39PF SMD |
9,467 | - |
|
Datasheet | CERALOCK® CSTNR | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 4.915 MHz | ±0.11% | ±0.07% | Built in Capacitor | 39 pF | - | -40°C ~ 125°C | Surface Mount | 0.177" L x 0.079" W (4.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
CSTNR4M91GH5L000R0CERAMIC RES 4.9150MHZ 39PF SMD |
6,049 | - |
|
Datasheet | CERALOCK® CSTNR | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 4.915 MHz | ±0.11% | ±0.07% | Built in Capacitor | 39 pF | - | -20°C ~ 85°C | Surface Mount | 0.177" L x 0.079" W (4.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
CSTNR4M19GH5C000R04.194MHZ CERAMIC RESONATOR (CERA |
7,845 | - |
|
Datasheet | CERALOCK® CSTNR | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 4.194 MHz | - | ±0.07% | Built in Capacitor | 39 pF | 60 Ohms | -40°C ~ 125°C | Surface Mount | 0.177" L x 0.079" W (4.50mm x 2.00mm) | 0.047" (1.20mm) |
|
AWSCR-2.45CPLB-C30-T4CERAMIC RES 2.4500MHZ 30PF SMD |
3,077 | - |
|
Datasheet | AWSCR-CPLB | 3-SMD, Non-Standard | Tape & Reel (TR) | Active | Ceramic | 2.45 MHz | ±0.4% | ±0.5% | Built in Capacitor | 30 pF | 100 Ohms | -40°C ~ 125°C | Surface Mount | 0.236" L x 0.118" W (6.00mm x 3.00mm) | 0.071" (1.80mm) |
Resonators FAQ
Common questions about selecting, comparing and sourcing Resonators components through Winsun (HK) Electronics.
What should I check when selecting Resonators components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Resonators part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Resonators parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Resonators components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
