RF Antennas

Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	RF Family/Standard	Frequency Group	Frequency (Center/Band)	Frequency Range	Antenna Type	Number of Bands	VSWR	Return Loss	Gain	Power - Max	Features	Termination	Ingress Protection	Grade	Qualification	Mounting Type	Height (Max)	Applications
A1004795 AUTOMOTIVE BROADBAND FR4 EMBEDDE KYOCERA AVX	883	-	RFQ	Datasheet	A	Tape & Reel (TR)	Active	Cellular, General ISM, WiFi	Wide Band	315MHz, 400MHz, 433MHz, 450MHz	600MHz ~ 698MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz	Chip	8	1.5, 2.5, 3, 3.7, 5.5	-	-3dBi, -3dBi, -1.8dBi, -3dBi, 1.5dBi, 1.2dBi, 2.4dBi, 0.9dBi	2 W	-	Solder	-	-	-	Surface Mount	0.130" (3.30mm)	ISM, LoRaWAN, LPWA, LTE, NB-IoT, Sigfox, Wi-Fi
AP822601 AUTOMOTIVE UNIVERSAL BROADBAND F KYOCERA AVX	1,190	-	RFQ	Datasheet	A	Tape & Reel (TR)	Active	Cellular, General ISM, WiFi	Wide Band	829MHz, 1.955GHz, 2.35GHz, 2.6GHz, 3.55GHz	698MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz	Chip	5	2.5, 3	-	2.6dBi, 4.4dBi, 1.8dBi, 3.4dBi, 2.8dBi	2 W	-	Solder	-	-	-	Surface Mount	0.130" (3.30mm)	ISM, LoRaWAN, LPWA, LTE, NB-IoT, Sigfox, Wi-Fi
1005190F0-AS70L0100 ANTENNA ASSY, UWB68 F0 0100 SMA KYOCERA AVX	397	-	RFQ	Datasheet	-	Box	Active	-	SHF (f > 4GHz)	7.5GHz	6.5GHz ~ 8.5GHz	PCB Trace	1	2	-	5.3dBi	10 W	Cable - 100mm	MHF	-	-	-	Adhesive	0.008" (0.20mm)	UWB

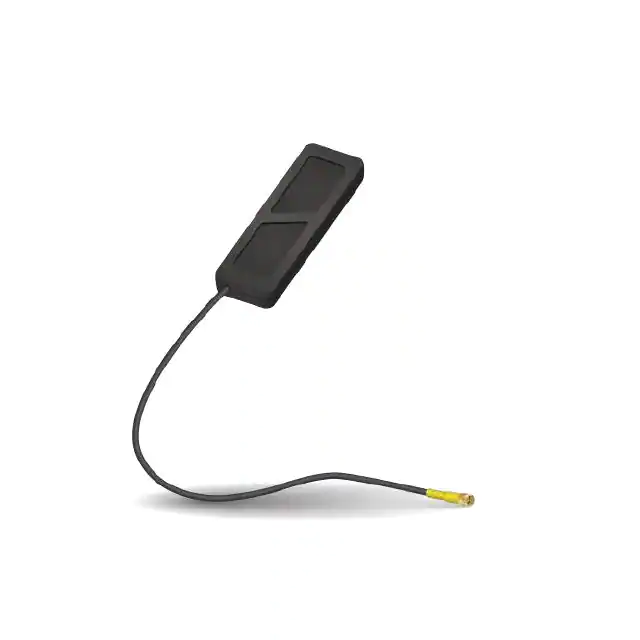

X1005323-W3A1SA10A1 WIFI ANTENNA KYOCERA AVX	200	-	RFQ	Datasheet	-	Box	Active	WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.45GHz, 5.4875GHz	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz	Module	2	2	-	2.5dBi, 3.3dBi	-	Cable - 1m, LNA	SMA Male	IPX7	-	-	Adhesive	0.264" (6.70mm)	Wi-Fi
1005801 WI-FI/BLUETOOTH CHIP ANTENNA FOR KYOCERA AVX	4,568	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Bluetooth, General ISM, WiFi	UHF (2GHz ~ 3GHz)	2.44GHz	2.4GHz ~ 2.49GHz	Chip	1	2	-	3dBi	500 mW	-	-	-	-	-	Surface Mount	0.014" (0.36mm)	Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™
9000062 SLEEVE FOR WI-FI X9001958 EXTERN KYOCERA AVX	1,012	-	RFQ	Datasheet	-	Box	Active	Bluetooth, WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.44GHz, 5.5GHz	2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz	Whip, Right Angle	2	1.92	-	2.7dBi, 4.7dBi	-	Cable - 100mm	MHF4L	-	-	-	Connector Mount	4.606" (117.00mm)	Bluetooth, IoT, M2M, Wi-Fi, WLAN, ZigBee™
9002137 ULTRA-SMALL GNSS L1/L2/L5/L6 OR KYOCERA AVX	4,970	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	General ISM	UHF (1GHz ~ 2GHz)	1.18GHz, 1.23GHz, 1.28GHz, 1.58GHz, 1.59GHz	1.56GHz ~ 1.61GHz	Chip	5	1.5, 1.7, 1.8, 2	-	2dBi	500 mW	-	-	-	-	-	Surface Mount	0.016" (0.40mm)	M2M
9002133 ULTRA-SMALL ISM (868/915 MHZ) CH KYOCERA AVX	5,000	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
9001978 ULTRA-SMALL UWB OR BLUETOOTH OR KYOCERA AVX	2,361	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Bluetooth, WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.44GHz, 5.5GHz, 7.25GHz	2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz, 6GHz ~ 8.5GHz	Ceramic Patch	3	2.1, 7	-	3dBi, 3dBi, 3dBi	500 mW	-	-	-	-	-	Surface Mount	0.016" (0.40mm)	Bluetooth, M2M, UWB, Wi-Fi, WLAN, Zigbee™
A9002137 AUTOMOTIVE ULTRA-SMALL GNSS L1/L KYOCERA AVX	4,981	-	RFQ	Datasheet	A	Tape & Reel (TR)	Active	Navigation	UHF (1GHz ~ 2GHz)	1.18GHz, 1.23GHz, 1.28GHz, 1.58GHz, 1.59GHz	1.56GHz ~ 1.61GHz	Chip	5	1.5, 1.7, 1.8, 2	-	2dBi	500 mW	-	-	-	-	-	Surface Mount	0.016" (0.40mm)	BeiDou, Galileo, GLONASS, GNSS, GPS
