RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A9001978AUTOMOTIVE ULTRA-SMALL UWB OR BL |
3,830 | - |
|
Datasheet | A | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz, 7.25GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz, 6GHz ~ 8.5GHz | Ceramic Patch | 3 | 2.1, 7 | - | 3dBi, 3dBi, 3dBi | 500 mW | - | - | - | - | - | Surface Mount | 0.016" (0.40mm) | Bluetooth, UWB, Wi-Fi, WLAN, Zigbee™ |
|
|
1002228DUAL-FEED ISM & WI-FI/BLUETOOTH |
3,533 | - |
|
Datasheet | - | Bag | Active | Cellular, General ISM | Wide Band | 868MHz, 915MHz, 2.4GHz | - | Chip | 3 | - | -15dB, -12dB, -5dB | -1dBi, 0dBi, 4dBi | 2 W | - | - | - | - | - | Solder | 0.063" (1.60mm) | ISM, LoRa, Sigfox |
|
|
W3P42X8W04-U100D3B0AWI-FI DUAL BAND/BLUETOOTH PCB AN |
1,000 | - |
|
Datasheet | - | Box | Not For New Designs | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.9GHz | Flat Patch | 2 | - | -7.4dB, -4.5dB | -1dBi, -1dBi | - | Cable - 100mm | MHF, U.FL | - | - | - | Adhesive | 0.063" (1.60mm) | WLAN, Zigbee™ |
|
|
W6F15X7W01-H050D3B0CWI-FI 6GHZ FPC ANTENNA, 50MM CAB |
399 | - |
|
Datasheet | - | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9001157GPS 18X18X4 SMT CERAMIC PATCH AN |
217 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.58GHz, 1.6GHz | 1.56GHz ~ 1.59GHz, 1.59GHz ~ 1.61GHz | Ceramic Patch | 2 | 3.2, 5.8 | - | 3.8dBi, 4.3dBi | 2 W | - | - | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
|
1004369PT-AA10L0100ANTENNA ASSY, WLANA PT 100 |
979 | - |
|
Datasheet | - | Box | Active | 802.15.4, Bluetooth, WiFi | SHF (f > 4GHz) | 5.4875GHz | 5.15GHz ~ 5.825GHz | PCB Trace | 1 | 2 | - | 3.7dBi | 2 W | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
1005188F0-AA70L0100UWB FPC ANTENNA, 100MM CABLE, MH |
978 | - |
|
Datasheet | - | Bag | Active | General ISM | SHF (f > 4GHz) | 7.25GHz | 6GHz ~ 8.5GHz | Flat Patch | 1 | 2 | - | 5.2dBi | 10 W | Cable - 100mm | MHF | - | - | - | Adhesive | 0.008" (0.20mm) | UWB |
|
|
P622301LTE-M/NB-IOT/LPWA PCB ANTENNA, F |
1,112 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | Wide Band | 830MHz, 1.94GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 2 | - | -3dB, -2.25dB | -0.89dBi, 1.06dBi | 2 W | - | - | - | - | - | Surface Mount | 0.126" (3.20mm) | Cat-M1, Firstnet, IoT, LoRA, LPWAN, LTE-M, M2M, NB-IoT, Sigfox |
|

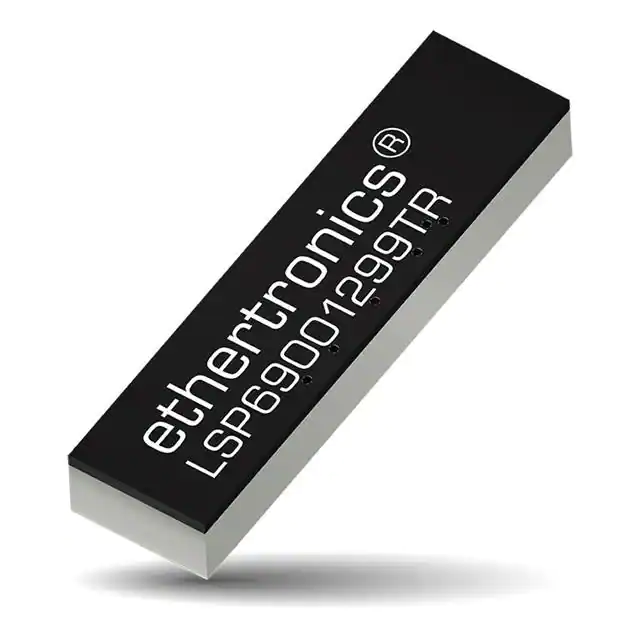

LSP69001299TRANTENNA PCB, IOT 35X9 |
5,598 | - |
|
Datasheet | - | Tape & Reel (TR) | Not For New Designs | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 1.94GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 2 | - | -2.5dB, -3dB | -2dBi, 1.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | Cellular, LTE Cat 1, LTE-M, NB-IoT, loRa, SigFox |
|
1001435M0-AA10L0025ANTENNA ASSY, WLAN 25 |
1,424 | - |
|
Datasheet | - | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Stamped Metal | 2 | 2 | - | 4.2dBi, 4.7dBi, 6.4dBi, 6dBi | 500 mW | Cable - 25mm | Solder | - | - | - | Adhesive | 0.382" (9.70mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
