RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

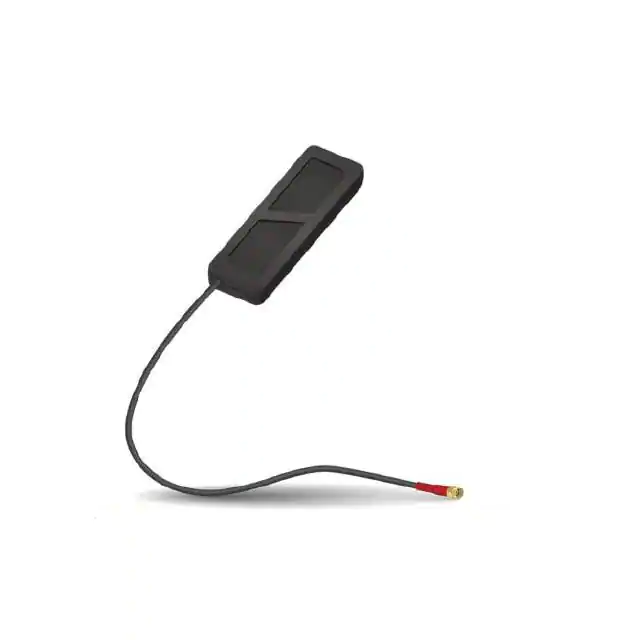

X1005246-4GA1SA10A1LTE ANTENNA |
173 | - |
|
Datasheet | - | Box | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.495GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz | Module | 3 | 1.5, 1.8, 2 | - | 2.8dBi, 3.1dBi, 2.7dBi | - | Cable - 1m | SMA Male | IPX7 | - | - | Adhesive | 0.264" (6.70mm) | LTE |
|
A1001312AUTOMOTIVE WI-FI/BLUETOOTH/ZIGBE |
3,881 | - |
|
Datasheet | A | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 7.25GHz | 2.4GHz ~ 2.485GHz, 6GHz ~ 8.5GHz | Chip | 2 | 1.8, 2 | - | 1.88dBi, 4.8dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.022" (0.55mm) | Bluetooth, UWB, Wi-Fi, ZigBee |
|
1002298ANTENNA WLAN |
373 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.4875GHz, 5.875GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.825GHz, 5.825GHz ~ 5.925GHz | Stamped Metal | 3 | 2 | - | 3.6dBi, 5.1dBi, 3.8dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.415" (10.55mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
A1000146AUTOMOTIVE WI-FI 6 & WI-FI 6E ST |
1,161 | - |
|
Datasheet | A | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.4425GHz, 3.55GHz, 5.4875GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.825GHz, 5.925GHz ~ 7.125GHz | Stamped Metal | 4 | 2, 2.2 | - | 1.7dBi, 4.21dBi, 4.1dBi, 3.8dBi | 0.5 W | - | Solder | - | - | - | Surface Mount | 0.169" (4.30mm) | Bluetooth, Wi-Fi, Wi-Fi 6, Wi-Fi 6E, WLAN, ZigBee |
|
1002436EMBEDDED ANTENNA, LTE, PCB, VERT |
2,712 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 829MHz, 1.955GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.5GHz ~ 2.7GHz | PCB Trace | 3 | 2.5, 3.5 | - | 2.3dBi, 3.2dBi, 3dBi | 2 W | - | Solder | - | - | - | Through Hole | 0.063" (1.60mm) | Cat-M, Cellular, GSM, LPWA, LTE, LTE-M, LoRa, NB-IoT, Sigfox |
|
1004369PT-AA10L0135ANTENNA ASSY, WLANA PT 135 |
889 | - |
|
Datasheet | - | Box | Active | 802.15.4, Bluetooth, WiFi | SHF (f > 4GHz) | 5.4875GHz | 5.15GHz ~ 5.825GHz | PCB Trace | 1 | 2 | - | 3.7dBi | 2 W | Cable - 135mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
1002232ANTENNA PCB, ISM9 WLAMB |
254 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, General ISM, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 868MHz, 915MHz, 2.4GHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz, 2.4GHz ~ 2.5GHz | Chip | 3 | 2 | - | 0.51dBi, 0.21dBi, 1.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | ISM, LoRa, Sigfox, WLAN |
|
WBP3015W08-U100D3B0AANTENNA ASSY, WIFI RIGHT, 100, D |
980 | - |
|
Datasheet | W | Box | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -8.4dB, 8.7dB | 3dBi, 6.7dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.031" (0.80mm) | Wi-Fi |
|
W3P35X8F04-U100D3B0TANTENNA ASSY, WLAN 04 100 F |
975 | - |
|
Datasheet | W | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | - | -15dB, -10dB, -6dB | 2.3dBi, 5dBi, 2.5dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
W1P35X8F04-U100D3B0TANTENNA ASSY, WLAN1 04 100 D0230 |
281 | - |
|
Datasheet | W | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.44GHz | 2.4GHz ~ 2.48GHz | PCB Trace | 1 | - | -15dB | 2.8dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
