RF Antennas

Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	RF Family/Standard	Frequency Group	Frequency (Center/Band)	Frequency Range	Antenna Type	Number of Bands	VSWR	Return Loss	Gain	Power - Max	Features	Termination	Ingress Protection	Grade	Qualification	Mounting Type	Height (Max)	Applications
1461530250 RF ANT 2.4/5GHZ FLAT PATCH 250MM Molex	1,711	-	RFQ	Datasheet	146153	Bulk	Active	802.15.4, WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.4GHz, 5GHz	2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz	Flat Patch	2	-	-10dB	2.4dBi, 3.7dBi	2 W	Cable - 250mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.004" (0.10mm)	WLAN, Zigbee™
2125700150 824~2170MHZ FLEXIBLE ANT SIDE-FE Molex	2,460	-	RFQ	Datasheet	212570	Tray	Active	Cellular	UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)	892MHz, 1.94GHz	824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz	PCB Trace	2	-	-5dB	-0.45dBi, 1.76dBi	-	Cable - 150mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.004" (0.10mm)	LTE

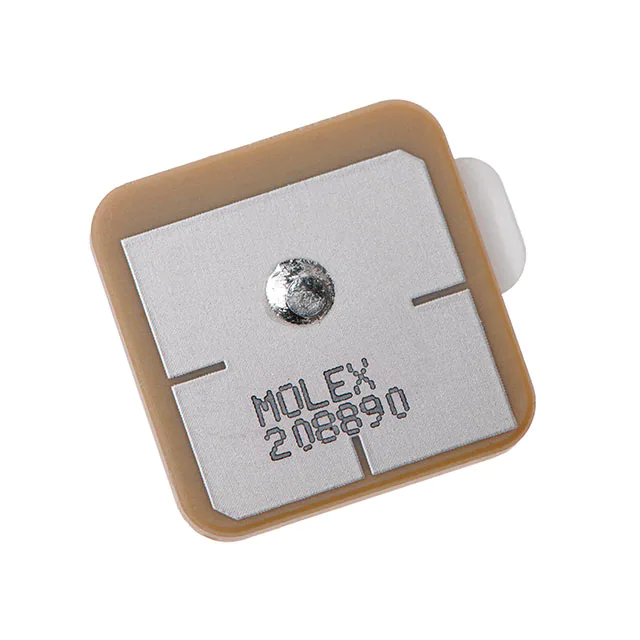

2088900001 CERAMIC GPS PATCH ANTENNA Molex	1,610	-	RFQ	Datasheet	208890	Tray	Active	Navigation	UHF (1GHz ~ 2GHz)	1.575GHz	1.575GHz ~ 1.576GHz	Ceramic Patch	1	-	-15dB	2.6dBi	-	-	Pin	-	-	-	Surface Mount	0.079" (2.00mm)	GNSS, GPS
2065600100 RF ANT 1.561/1.575GHZ FLAT PATCH Molex	9,344	-	RFQ	Datasheet	206560	Bag	Active	Navigation	Wide Band	1.561GHz, 1.575GHz, 1.602GHz	1.558GHz ~ 1.61GHz	Flat Patch	3	-	-8dB	0.9dBi, 1dBi, 1.37dBi	-	Cable - 100mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.004" (0.10mm)	Beidou, GLONASS, GNSS, GPS
1461870150 RF ANT 2.4/5.5GHZ PCB TRACE U.FL Molex	766	-	RFQ	Datasheet	146187	Bulk	Active	WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.4GHz, 5.5GHz	2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz	PCB Trace	2	-	-10dB	-	-	Cable - 150mm	U.FL	-	-	-	Surface Mount	0.004" (0.10mm)	WLAN
2065600050 RF ANT 1.561/1.575GHZ FLAT 50MM Molex	1,913	-	RFQ	Datasheet	206560	Bulk	Active	Navigation	Wide Band	1.561GHz, 1.575GHz, 1.602GHz	1.558GHz ~ 1.61GHz	Flat Patch	3	-	-8dB	1.1dBi, 1.2dBi, 1.5dBi	-	Cable - 50mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.004" (0.10mm)	Beidou, GLONASS, GNSS, GPS
2065600150 RF ANT 1.561/1.575GHZ FLAT 150MM Molex	932	-	RFQ	Datasheet	206560	Bulk	Active	Navigation	Wide Band	1.561GHz, 1.575GHz, 1.602GHz	1.558GHz ~ 1.61GHz	Flat Patch	3	-	-8dB	0.8dBi, 0.9dBi, 1.3dBi	-	Cable - 150mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.004" (0.10mm)	Beidou, GLONASS, GNSS, GPS
0479502011 RF ANT 2.4/5GHZ PCB TRC CAB .61" Molex	3,167	-	RFQ	Datasheet	47950	Tray	Active	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.4GHz, 5GHz	2.4GHz ~ 2.483.5GHz, 4.8GHz ~ 5.9GHz	PCB Trace	2	-	-10dB, -9dB	2.6dBi, 4.4dBi	2 W	Cable - 200mm	SMT Male	-	-	-	Adhesive	0.004" (0.10mm)	Bluetooth, WLAN, Zigbee™
2067600001 RF ANT 829MHZ/2.205GHZ CER PATCH Molex	8,315	-	RFQ	Datasheet	206760	Tape & Reel (TR)	Active	-	Wide Band	829MHz, 2.205GHz	698MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.7GHz	Ceramic Patch	2	-	-5dB	1.3dBi, 4.4dBi	2 W	-	Solder	-	-	-	Surface Mount	0.118" (3.00mm)	General Purpose
1461860100 RF ANT 1.561/1.575GHZ FLAT 100MM Molex	7,254	-	RFQ	Datasheet	146186	Bulk	Active	Navigation, WiFi	Wide Band	1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz, 5GHz	1.575GHz ~ 1.602GHz, 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz	Flat Patch	5	-	-10dB	3dBi, 4dBi, 4.7dBi	2 W	Cable - 100mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.004" (0.10mm)	BeiDou, GLONASS, WiMax, WLAN, Wi-Fi
