RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1461860200RF ANT 1.561/1.575GHZ FLAT 200MM |
847 | - |
|
Datasheet | 146186 | Bulk | Active | Navigation, WiFi | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz, 5GHz | 1.575GHz ~ 1.602GHz, 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz | Flat Patch | 5 | - | -10dB | 2.7dBi, 3.5dBi, 4.2dBi | 2 W | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | BeiDou, GLONASS, WiMax, WLAN, Wi-Fi |
|

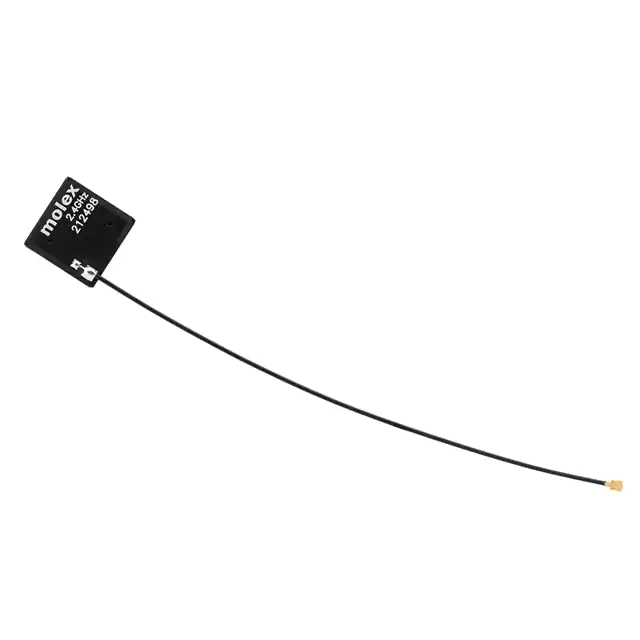

21249801502.4GHZ ON FULL METAL CABL |
117 | - |
|
Datasheet | - | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4425GHz | 2.4GHz ~ 2.485GHz | PCB Trace | 1 | - | -6dB | 3.6dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.138" (3.50mm) | Bluetooth, WirelessHART, Wi-Fi, Zigbee™ |
|
2144150001WI-FI/BLUETOOTH HINGED EXT ANTEN |
580 | - |
|
Datasheet | 214415 | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | - | -10dB | 5.3dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.268" (108.40mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
21406101502.4/5GHZ ON FULL METAL CABLED AN |
1,740 | - |
|
Datasheet | 214061 | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 1 | - | -6dB, -9dB | 3.8dBi, 6.4dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.138" (3.50mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
2144140011ISM/DSRC ANTENNA_HINGED_B_F |
1,029 | - |
|
Datasheet | 214414 | Tray | Active | General ISM | SHF (f > 4GHz) | 5.9GHz | 5.8GHz ~ 6GHz | Whip, Tilt | 1 | - | -10dB | 3.9dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.268" (108.40mm) | DSRC, ISM |
|
1052630003RF ANT 850MHZ/900MHZ FLAT 200MM |
385 | - |
|
Datasheet | 105263 | Tray | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2GHz, 2.6GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.69GHz | Flat Patch | 6 | - | -7.5dB, -8dB, -8.5dB, -8.8dB, -9dB, -12dB | 1.3dBi, 1.7dBi, 2dBi, 2.2dBi, 3dBi | 2 W | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | GSM, LTE, UMTS |
|
2042870100RF ANT 433MHZ FLAT PATCH U.FL |
158 | - |
|
Datasheet | 204287 | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Flat Patch | 1 | - | -10dB | 0.8dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.098" (2.50mm) | ISM |
|
2161960001MOLEX LORA EXTERNAL ANTENNA_M |
1,930 | - |
|
Datasheet | 216196 | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 866MHz | 856MHz ~ 876MHz | Whip, Tilt | 1 | - | -11dB | 2.5dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.717" (196.00mm) | ISM, LoRa |
|
2122030001GPS L1/L5 25MM STACKED PATCH |
427 | - |
|
Datasheet | 212203 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.575GHz | 1.171GHz ~ 1.181GHz, 1.57GHz ~ 1.58GHz | Ceramic Patch | 2 | - | -20dB, -15dB | 3.1dBi, 4.9dBi | 2 W | - | - | - | - | - | Adhesive | 0.315" (8.00mm) | GNSS, GPS |
|
2116240001GPS L1/L5 & GLONASS 36MM STACKED |
201 | - |
|
Datasheet | 211624 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.575GHz, 1.602GHz | 1.171GHz ~ 1.181GHz, 1.57GHz ~ 1.58GHz, 1.597GHz ~ 1.607GHz | Ceramic Patch | 3 | - | -10dB | 2.1dBi, 4.5dBi, 4.2dBi | - | - | Solder | - | - | - | Adhesive | 0.276" (7.00mm) | GLONASS, GPS |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
