RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1461539300WIFI 6E AUTOMOTIVE FLEXIBLE ANT |
7,753 | - |
|
Datasheet | - | Tray | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | - | -10dB | 2.2dBi | - | Cable - 300mm | MHF1 | - | - | - | Adhesive | 0.079" (2.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
2066490001700 960MHZ CERAMIC ANTENNA |
836 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | UHF (300MHz ~ 1GHz) | 829MHz | 698MHz ~ 960MHz | Ceramic Patch | - | - | -4dB, -5dB, -6dB, -7dB | 0.5dBi, 0.8dBi, 0.9dBi, 1.1dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | LTE |
|
1461850200RF ANT 892MHZ/1.9GHZ FLAT 200MM |
284 | - |
|
Datasheet | 146185 | Bulk | Active | Cellular, WiFi | Wide Band | 892MHz, 1.9GHz, 4.5GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3GHZ ~ 6GHz | Flat Patch | 3 | - | -6dB | 4dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | WLAN |
|
2123300100ANTENNA 2.4/5GHZ MIMO 4X4 100MM |
960 | - |
|
Datasheet | 212330 | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | - | - | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
2205731000BOTTOM FEED 5 IN 1 ANTENNA HIGH |
300 | - |
|
Datasheet | - | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.581GHz, 2.2GHz, 2.45GHz, 3.75GHz, 4.7GHz, 5.5GHz, 6.525GHz | 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.5GHz, 2.4GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Module | 8 | - | -10dB, -8dB, -5dB, -4dB | - | - | Cable - 1m | SMA Male | - | - | - | Adhesive, Screw | 1.496" (38.00mm) | 5G, GPS, Wi-Fi |
|
|
2123309100WIFI 6E AUTO 4X4 MIMO FLEXIBLE A |
5,116 | - |
|
Datasheet | 212330 | Tray | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | - | -10dB, -9dB, -5dB | - | - | Cable - 100mm | MHF1 | - | - | - | Adhesive | 0.079" (2.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
2079010200600-6000MHZ FLEXIBLE ANTENNA 200 |
937 | - |
|
Datasheet | 207901 | Bulk | Active | Cellular | Wide Band | 780MHz, 2.25GHz, 4.5GHz | 600MHz ~ 960MHz, 1.5GHz ~ 3GHz, 3GHz ~ 6GHz | Flat Patch | 3 | - | -5dB, -3dB | 2.4dBi, 4.6dBi, 5dBi | - | Cable - 200mm | I-PEX MHF | - | - | - | Adhesive | 0.006" (0.16mm) | LTE |
|

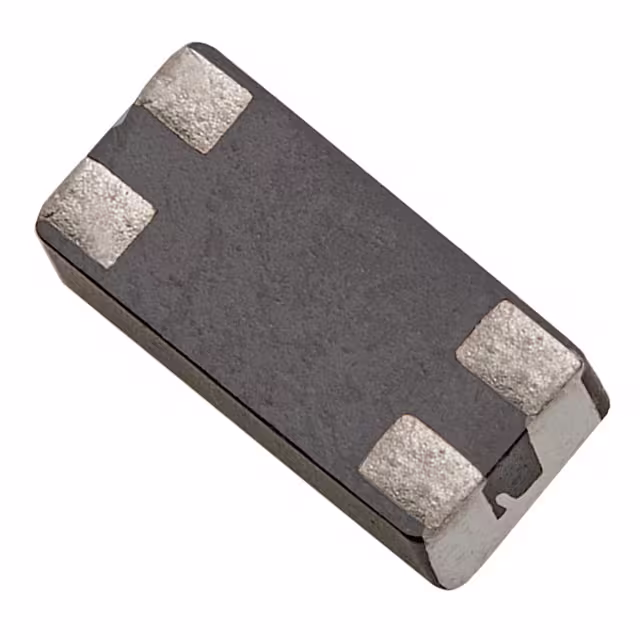

2042830001LOW PROFILE GNSS CERAMIC ANTENNA |
6,000 | - |
|
Datasheet | * | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2084829100WIFI6E AUTO 2X2 MIMO FLEXIBLE AN |
797 | - |
|
Datasheet | 208482 | Tray | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | - | -13dB, -10dB, -9dB, -8dB | - | - | Cable - 100mm | MHF1 | - | - | - | Adhesive | 0.079" (2.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
2079019100600-6000MHZ AUTO FLEXIBLE ANTENN |
863 | - |
|
Datasheet | 207901 | Tray | Active | Cellular | Wide Band | 780MHz, 2.25GHz, 4.5GHz | 600MHz ~ 960MHz, 1.5GHz ~ 3GHz, 3GHz ~ 6GHz | Flat Patch | 3 | - | -5dB, -3dB | 2.6dBi, 4.9dBi, 5.4dBi | - | Cable - 100mm | MHF1 | - | - | - | Adhesive | 0.079" (2.00mm) | LTE |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
