RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2047740001RF ANT CHIP SOLDER SMD |
8,896 | - |
|
Datasheet | 204774 | Tape & Reel (TR) | Active | - | Wide Band | - | 790MHz ~ 960MHz, 1.7GHz ~ 2.7GHz | Chip | 2 | - | -6dB | 4.84dBi | - | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | - |
|

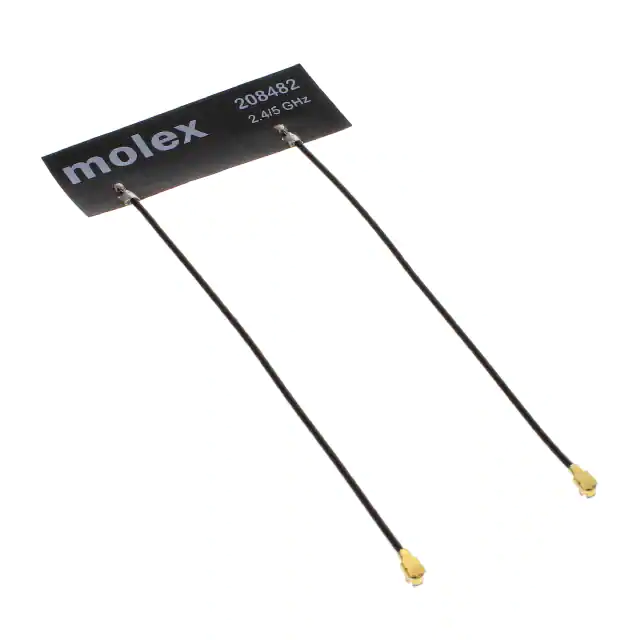

20848201002.4/5GHZ MIMO 2X2 FLEXIBLE ANTEN |
2,865 | - |
|
Datasheet | 208482 | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -8dB, -9dB, -13dB | 2.9dBi, 3.4dBi, 5dBi, 5.9dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.16mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
1461850100RF ANT 892MHZ/1.9GHZ FLAT 100MM |
1,062 | - |
|
Datasheet | 146185 | Bulk | Active | Cellular, WiFi | Wide Band | 892MHz, 1.9GHz, 4.5GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3GHZ ~ 6GHz | Flat Patch | 3 | - | -6dB | 4dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | WLAN |
|
1052620002RF ANT 866MHZ/915MHZ FLAT 150MM |
697 | - |
|
Datasheet | 105262 | Tray | Active | - | UHF (300MHz ~ 1GHz) | 866MHz, 915MHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz | Flat Patch | 2 | - | -11dB, -13dB | 0.3dBi, 1.3dBi | 2 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | - |
|
1462340100RF ANT 829MHZ/2.1GHZ FLAT 100MM |
929 | - |
|
Datasheet | 146234 | Tray | Active | - | Wide Band | 829MHz, 2.1GHz, 4.35GHz | 698MHz ~ 6GHz | Flat Patch | 3 | - | -4dB, -5dB | 1.8dBi, 2.8dBi, 5.0dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | General Purpose |
|
2042870200RF ANT 433MHZ FLAT PATCH CAB ADH |
199 | - |
|
Datasheet | 204287 | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Flat Patch | 1 | - | -10dB | 0.5dBi | - | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | ISM |
|
2079010100600-6000MHZ FLEXIBLE ANTENNA 100 |
306 | - |
|
Datasheet | 207901 | Bulk | Active | - | Wide Band | 780MHz, 2.25GHz, 4.5GHz | 600MHz ~ 960MHz, 1.5GHz ~ 3GHz, 3GHz ~ 6GHz | PCB Trace | 3 | - | -3dB, -5dB, -5dB | 2.6dBi, 4.9dBi, 5.4dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | General Purpose |
|
2042870150RF ANT 433MHZ FLAT PATCH CAB ADH |
792 | - |
|
Datasheet | 204287 | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Flat Patch | 1 | - | -10dB | 0.6dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | ISM |
|

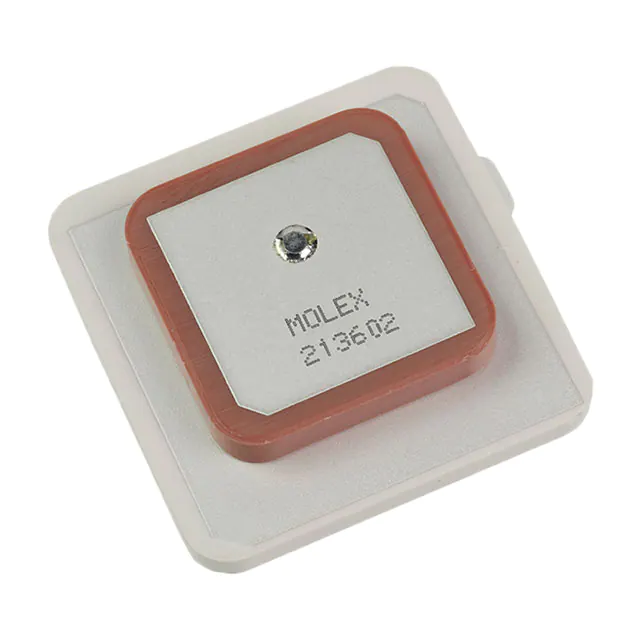

2136020001ANTENNA GPS L1/L2 STACKED |
102 | - |
|
Datasheet | 213602 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2275GHz, 1.575GHz | 1.2265GHz ~ 1.2286GHz, 1.574GHz ~ 1.576GHz | Ceramic Patch | 2 | - | -15dB | 2.1dBi, 5.3dBi | - | - | Solder | - | - | - | Adhesive | 0.276" (7.00mm) | GLONASS, GNSS, GPS |
|
21129730002IN1 (4G/GPS) FAKRA WITH CABLE 3 |
1,847 | - |
|
Datasheet | - | Box | Active | Cellular, Navigation | Wide Band | 892MHz, 1.568GHz, 2.155GHz | 824MHz ~ 960MHz, 1.561GHz ~ 1.575.42GHz, 1.71GHz ~ 2.6GHz | Module | 3 | 2, 2.5 | -8dB, -10dB | -0.8dBi, -2.1dBi, -2.1dBi, 0.4dBi | - | Cable - 3m | Fakra (2) | - | - | - | Adhesive | 0.591" (15.00mm) | 4G, GPS |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
