RF Antennas
Browse available RF Antennas part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

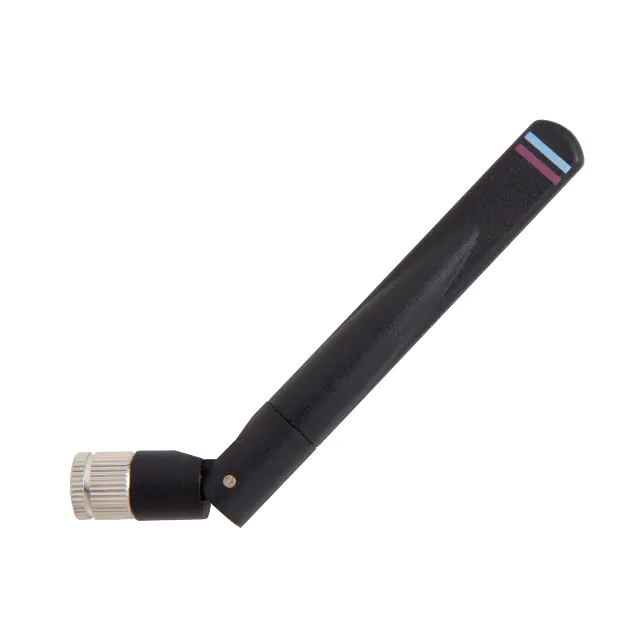

ANT-DB1-RAF-SMARF ANT 2.45GHZ/5.3GHZ WHIP TILT |
272 | - |
|
Datasheet | RAF | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 2.5GHz, 5GHz, 5.7GHz, 5.8GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.825GHz | Whip, Tilt | 2 | 1.9 | - | 2.5dBi, 4.6dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.130" (104.90mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|

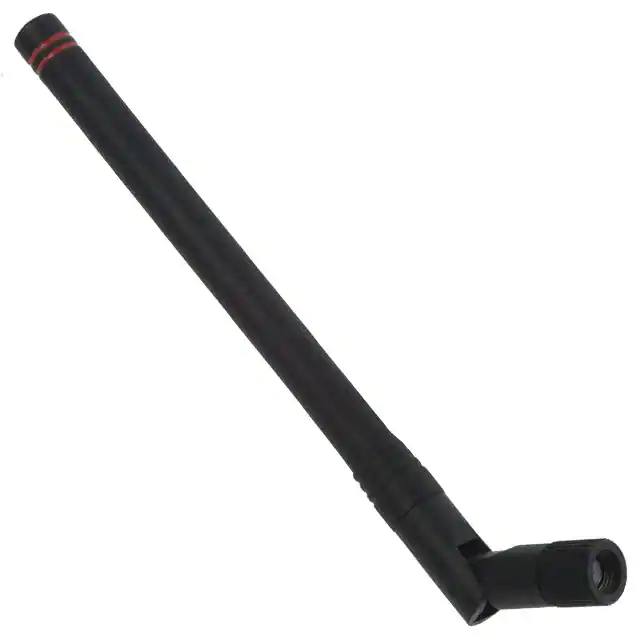

ANT-433-CW-HWR-RPSRF ANT 433MHZ WHIP TILT RP-SMA |
202 | - |
|
Datasheet | HWR | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 418MHz ~ 448MHz | Whip, Tilt | 1 | 2 | - | 1.1dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 5.591" (142.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
DELTA19/X/SMAM/RP/S/35RF ANT 2.4GHZ WHIP STR MALE 18MM |
791 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 0dBi | 1 W | - | RP-SMA Male | - | - | - | Connector Mount | 0.748" (19.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
ANT-433-CW-HWR-SMARF ANT 433MHZ WHIP TILT SMA MALE |
327 | - |
|
Datasheet | HWR | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 418MHz ~ 448MHz | Whip, Tilt | 1 | 2 | - | 1.1dBi | - | - | SMA Male | - | - | - | Connector Mount | 5.591" (142.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
SB698SMA3RF ANT 829MHZ/1.94GHZ BLADE SMA |
3,676 | - |
|
Datasheet | Stealth Blade | Bulk | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Blade | 3 | 2.5 | - | 2dBi | 3 W | - | SMA Male | IP67 | - | - | Adhesive | 4.161" (105.70mm) | LTE |
|
6001110PADDLE CELLULAR ANTENNA |
203 | - |
|
Datasheet | AirLink® - Accessory | Box | Active | Cellular | UHF (2GHz ~ 3GHz) | 2.249GHz | 698MHz ~ 3.8GHz | Whip, Tilt | 1 | - | - | - | - | - | - | - | - | - | Connector Mount | - | LTE |
|
GGBLA.01.ARF ANT 1.561GHZ/1.575GHZ CHIP |
32,483 | - |
|
Datasheet | Unifier | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.598GHz ~ 1.608GHz | Chip | 3 | 2 | -25dB | 3.2dBi, 2.6dBi, 2.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | Beidou, GLONASS, GPS |
|

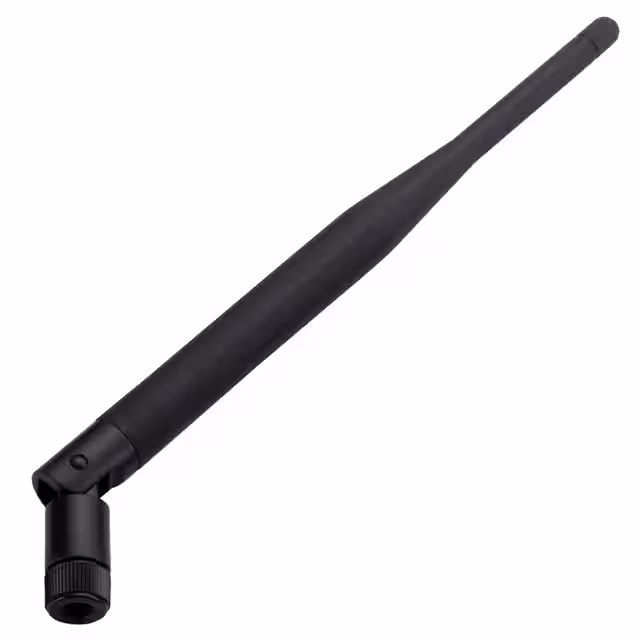

GW.71.5153RF ANT 2.4GHZ/5.4GHZ WHIP TILT |
3,267 | - |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Whip, Tilt | 2 | 2, 2.1 | - | 3.8dBi, 5.5dBi | 2 W | - | RP-SMA Male | - | - | - | Connector Mount | 7.638" (194.00mm) | WLAN |
|

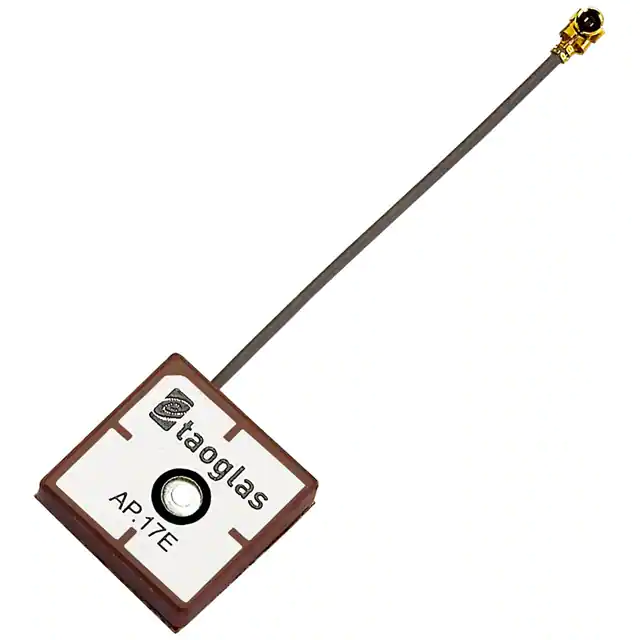

AP.17E.07.0064ARF ANT 1.575GHZ CER PATCH MHFI |
1,327 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | -1dBic | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.157" (4.00mm) | GPS |
|

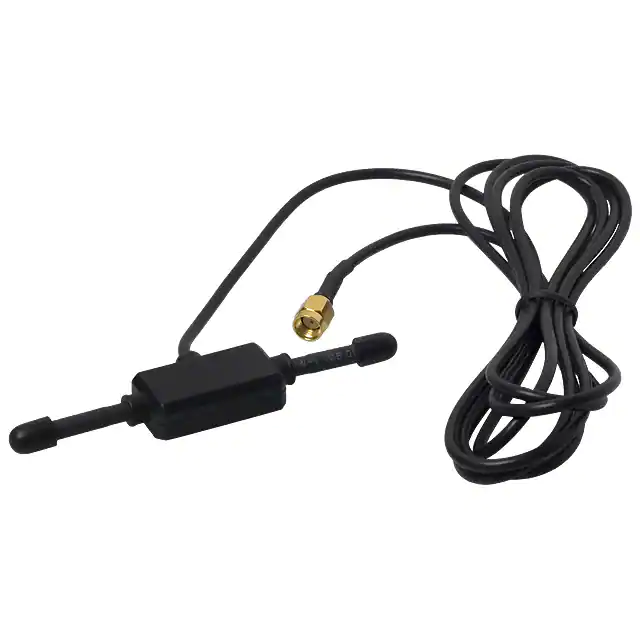

ANT-916-MHW-RPS-SRF ANT 916MHZ WHP CTR ADH 79" |
401 | - |
|
Datasheet | MHW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 816MHz ~ 1.016GHz | Whip, Center-Fed Double | 1 | 1.9 | - | 5.4dBi | - | Cable - 2m | RP-SMA Male | - | - | - | Adhesive | 5.433" (138.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-418-CW-HWR-SMARF ANT 418MHZ WHIP TILT SMA MALE |
278 | - |
|
Datasheet | HWR | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 398MHz ~ 438MHz | Whip, Tilt | 1 | 2 | - | 0.7dBi | - | - | SMA Male | - | - | - | Connector Mount | 5.591" (142.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
2158680001MOLEX ON-METAL WIFI EXTERNAL ANT |
151 | - |
|
Datasheet | 215868 | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Module | 2 | - | -6dB | 2dBi, 5.5dBi | - | Cable - 300mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.335" (8.50mm) | Bluetooth, DSRC, Wi-Fi, Zigbee™ |
|

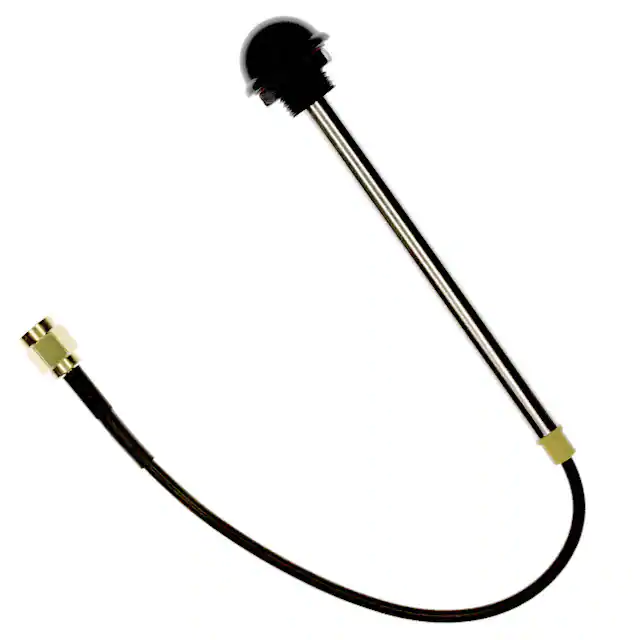

ANT-916-WRT-RPSRF ANT 916MHZ DOME RP-SMA PNL MT |
571 | - |
|
Datasheet | WRT | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 900MHz, 915MHz | 900MHz ~ 930MHz | Dome | 1 | 1.9 | - | -0.1dBi | - | Cable - 216mm | RP-SMA Male | - | - | - | Panel Mount | 0.433" (11.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|

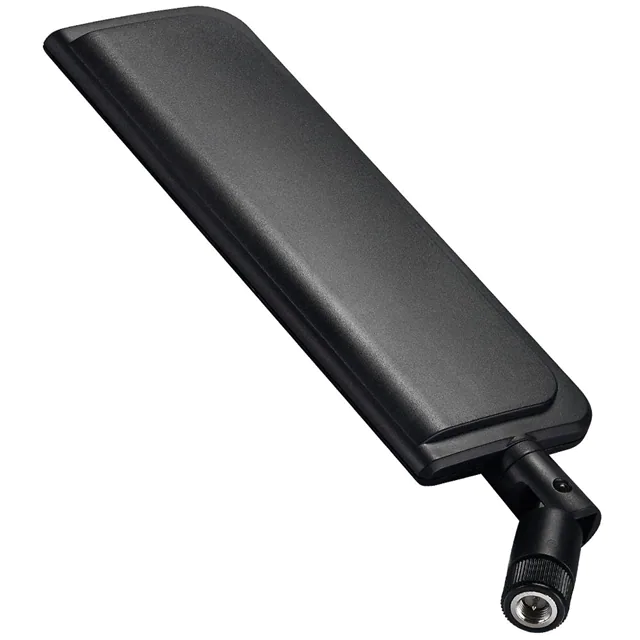

TG.30.8113RF ANT 750MHZ/892MHZ WHIP TILT |
3,056 | - |
|
Datasheet | Apex | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 750MHz, 892MHz, 1.575GHz, 1.9GHz, 2.6GHz | 700MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.8GHz | Whip, Tilt | 5 | - | - | 1.1dBi, 0.3dBi, 1.1dBi, 2.7dBi, 2.7dBi | 10 W | - | SMA Male | IP67 | - | - | Connector Mount | 7.319" (185.90mm) | CDMA, GPS, GSM, LTE, UMTS, WLAN |
|
ANT-GNRM-L1A-3ANTENNA, REMOTE ACTIVE CERAMIC P |
170 | - |
|
Datasheet | GNRM | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.601GHz, 1.602GHz | - | Module | 4 | 1.2, 1.3, 1.5 | -14.5dB, -19dB, -19.9dB | 32.8dBi, 33.5dBi, 33.4dBi, 33.4dBi | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Magnetic | 0.591" (15.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

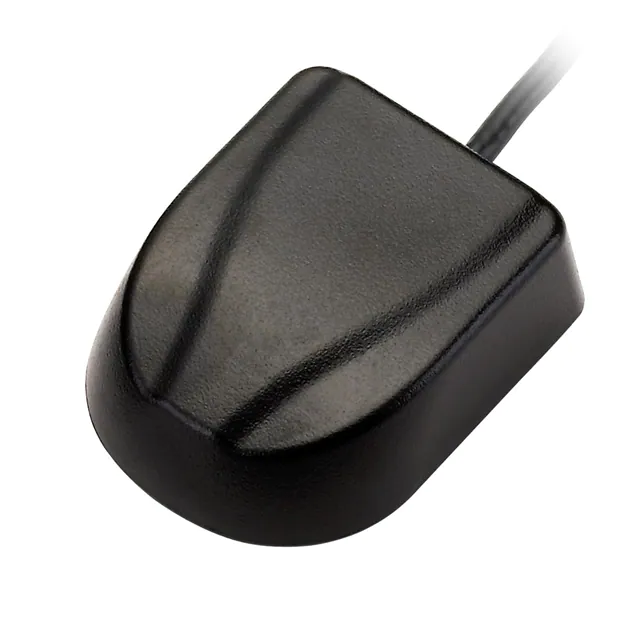

AA.105.301111RF ANT 1.575GHZ MOD SMA MALE MAG |
3,655 | - |
|
Datasheet | Titan | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.57GHz ~ 1.58GHz | Module | 1 | 1.92 | - | 2dBic | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Magnetic | 0.551" (14.00mm) | GPS |
|
APAMPG-130RF ANT 1.575/1.602GHZ DOME SMA |
494 | - |
|
Datasheet | APAMPG | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.572GHz ~ 1.578GHz, 1.594GHz ~ 1.61GHz | Dome | 2 | 1.5 | - | 30dB | - | - | SMA Male | - | - | - | Magnetic | 0.610" (15.50mm) | GLONASS, GPS |
|

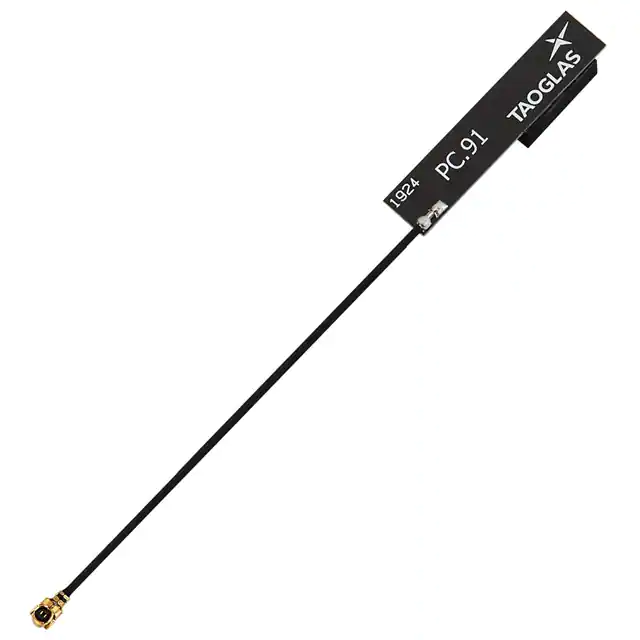

PC91.07.0100A.DBRF ANT 915MHZ PCB TRACE IPEX MHF |
451 | - |
|
Datasheet | TheStripe™ | Bag | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | PCB Trace | 1 | 2 | -10dB | - | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.276" (7.00mm) | - |
|
|
GSA.8835.A.101111PHOENIX EXTERNAL 5G/4G ANT |
126 | - |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 657MHz, 752MHz, 892MHz, 1.48GHz, 1.96GHz, 2.59GHz, 3.4GHz, 3.85GHz, 5.54GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.43GHz ~ 1.52GHz, 1.71GHz ~ 2.2GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 3.5GHz ~ 4.2GHz, 5.15GHz ~ 5.93GHz | Flat Bar | 9 | - | - | 0.95dBi, 2.44dBi, 2.59dBi, 3.25dBi, 4.12dBi, 3.78dBi, 3.79dBi, 3.70dBi, 2.81dBi | 2 W | Cable - 1m | SMA Male | IP67, IP68 | - | - | Adhesive | 0.311" (7.90mm) | 4G, 5G |
|
ANT-2.4-WRT-MON-SMARF ANT 2.4GHZ DOME SMA ML PNL MT |
561 | - |
|
Datasheet | WRT-MON | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz, 2.5GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 1.9 | - | 0.8dBi | - | Cable - 216mm | SMA Male | - | - | - | Panel Mount | 1.063" (27.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
RF Antennas FAQ
Common questions about selecting, comparing and sourcing RF Antennas components through Winsun (HK) Electronics.
What should I check when selecting RF Antennas components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Antennas part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Antennas parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Antennas components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
