RF Antennas
Browse available RF Antennas part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-433-CW-RHRF ANT 433MHZ WHIP STR RP-SMA ML |
409 | - |
|
Datasheet | RH | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 425MHz ~ 440MHz | Whip, Straight | 1 | 1.9 | - | -5.6dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 2.008" (51.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
ANT-916-CW-HW-SMARF ANT 916MHZ WHIP STR SMA MALE |
3,318 | - |
|
Datasheet | HW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 900MHz ~ 930MHz | Whip, Straight | 1 | 1.9 | - | 1.2dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.724" (120.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-916-CW-QWRF ANT 916MHZ WHIP STR RP-SMA ML |
2,351 | - |
|
Datasheet | CW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 800MHz, 900MHz, 915MHz | 865MHz ~ 965MHz | Whip, Straight | 1 | 1.9 | - | 1.8dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.150" (80.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-916-PW-QW-UFLRF ANT 916MHZ WHIP STR CAB PAN |
267 | - |
|
Datasheet | PW | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 865MHz ~ 965MHz | Whip, Straight | 1 | 1.9 | - | 1.8dBi | - | Cable - 216mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 3.150" (80.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
GW.11.A153RF ANT 2.4GHZ WHIP TILT RP-SMA |
3,203 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Whip, Tilt | 1 | - | - | 2.3dBi | 1 W | - | RP-SMA Male | - | - | - | Connector Mount | 3.323" (84.40mm) | Bluetooth, WLAN, Zigbee™ |
|
ANT-916-OC-LG-RPSRF ANT 916MHZ WHIP TILT RP-SMA |
2,292 | - |
|
Datasheet | OC | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 895MHz ~ 935MHz | Whip, Tilt | 1 | 2 | - | 2.2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 7.618" (193.50mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-433-CW-QW-SMARF ANT 433MHZ WHIP STR SMA MALE |
165 | - |
|
Datasheet | CW | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 400MHz, 410MHz, 450MHz | 400MHz ~ 470MHz | Whip, Straight | 1 | 1.9 | - | 3.3dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.008" (178.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
ANT-LTE-WS-SMALTE BLADE SWIVEL DIPOLE SMA |
732 | - |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.4GHz, 2.5GHz, 2.6GHz, 2.7GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz | Blade, Tilt | 4 | 2, 2, 2, 2.5 | - | 4dBi, 5.8dBi, 3.1dBi, 4dBi | 15 W | - | SMA Male | - | - | - | Connector Mount | 5.366" (136.30mm) | CAT-M1, Cellular, LTE, NB-IOT, 2G, 3G, 4G, IOT |
|
W5001RF ANT 2.4GHZ WHIP RA RP-SMA MAL |
2,750 | - |
|
Datasheet | - | Bulk | Active | 802.15.4 | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Right Angle | 1 | - | -10dB | 1.5dBi | - | - | RP-SMA Male | IP65 | - | - | Connector Mount | 5.041" (128.05mm) | ZigBee™ |
|
ACAJ-109-TRF ANT 850MHZ/900MHZ CHIP SLD |
564 | - |
|
Datasheet | ACAJ | Tape & Reel (TR) | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 5 | 3.5, 3 | - | 6.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.173" (4.40mm) | GSM, UMTS |
|
FXUB63.07.0150CRF ANT 850MHZ/1.575GHZ FLT PATCH |
6,683 | - |
|
Datasheet | - | Bag | Active | AGPS, Cellular, General ISM, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz | 600MHz ~ 6GHz | Flat Patch | 8 | 2, 2, 1.8, 1.7, 1.7, 2.3 | - | 1dBi, 2.5dBi, 3.5dBi, 5dBi, 5dBi, 4.5dBi | 5 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | GPS, ISM, LTE, Wi-Fi |
|
FXUB65.07.0180CRF ANT 829MHZ/2.2GHZ FLAT PATCH |
3,498 | - |
|
Datasheet | - | Bulk | Active | Cellular, WiFi | Wide Band | 829MHz, 2.2GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Flat Patch | 2 | 3, 2 | -17dB | 3dBi | 5 W | - | I-PEX MHFHT | - | - | - | Adhesive | 0.008" (0.20mm) | GSM, LTE, WLAN |
|
APAMP-116RF ANT 1.575GHZ MOD SMA MALE ADH |
3,294 | - |
|
Datasheet | APAMP | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Module | 1 | 1.5 | - | 5dBic | - | Cable - 3m, LNA | SMA Male | - | - | - | Adhesive | 0.571" (14.50mm) | GPS |
|
ANT-868-PW-QW-UFLRF ANT 868MHZ WHIP STR CAB PAN |
1,042 | - |
|
Datasheet | PW | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 750MHz ~ 950MHz | Whip, Straight | 1 | 1.9 | - | 1.6dBi | - | Cable - 216mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 3.307" (84.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
GVLB258.AGPS/GLONASS/BEIDOU SINGLE FEED S |
368 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.6015GHz | 1.166GHz ~ 1.186GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.593GHz ~ 1.61GHz | Ceramic Patch | 4 | - | - | 2.31dBi, 2.94dBi, 2.87dBi, 3.08dBi | - | - | Pin | - | - | - | Adhesive | 0.315" (8.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
GW.26.0111RF ANT 2.4GHZ WHIP STR SMA MALE |
16,862 | - |
|
Datasheet | - | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | - | - | 0dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 1.181" (30.00mm) | Bluetooth, WLAN |
|
TG.10.0113RF ANT 700MHZ/850MHZ WHIP TILT |
4,520 | - |
|
Datasheet | Triton | Bag | Active | Cellular, Navigation | Wide Band | 700MHz, 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz | 703MHz ~ 803MHz, 824MHz ~ 960MHz, 1575.42MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz | Whip, Tilt | 8 | - | - | 0.34dBi, 0.03dBi, -0.48dBi, -1.85dBi, 0.67dBi, -0.07dBi, 0.23dBi, 2.04dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 6.614" (168.00mm) | CDMA, DCS, EDGE, GPRS, GPS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA |
|

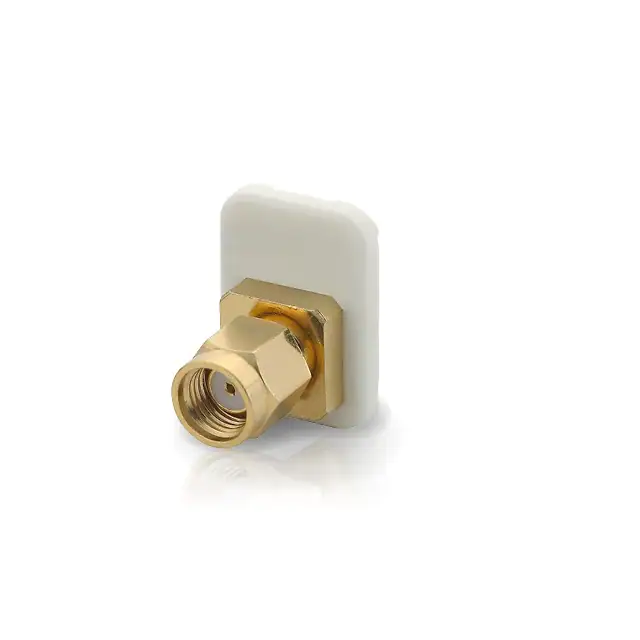

WCM.01.0151WRF ANT 2.4GHZ MODULE RP-SMA MALE |
3,901 | - |
|
Datasheet | - | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Module | 1 | - | - | 5.4dBi | 10 W | - | RP-SMA Male | IP67 | - | - | Connector Mount | 0.646" (16.40mm) | Bluetooth, Wi-Fi |
|

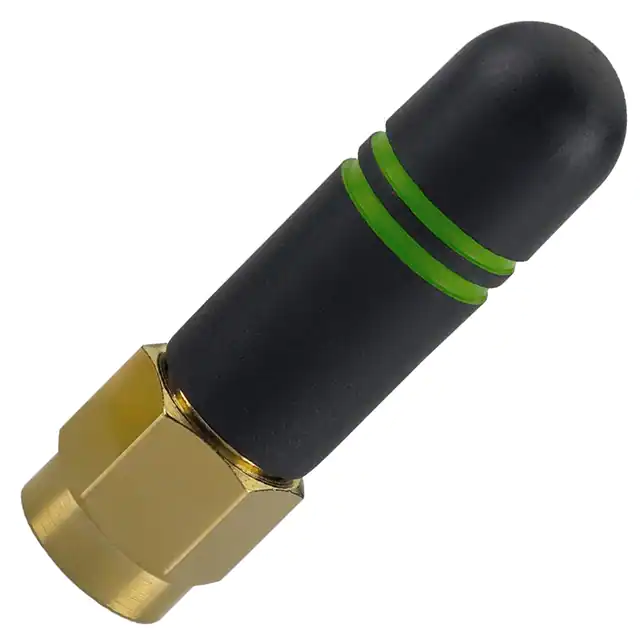

GW.26.0151RF ANT 2.4GHZ WHIP STR RP-SMA ML |
684 | - |
|
Datasheet | - | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | - | - | 1.8dBi | 1 W | - | RP-SMA Male | IP65 | - | - | Connector Mount | 1.193" (30.30mm) | Bluetooth, WLAN |
|
GW.26.0152RF ANT 2.4GHZ WHIP RA RP-SMA MAL |
183 | - |
|
Datasheet | - | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Right Angle | 1 | - | - | 0dBi | 1 W | - | RP-SMA Male | IP65 | - | - | Connector Mount | 1.114" (28.30mm) | Bluetooth, WLAN |
RF Antennas FAQ
Common questions about selecting, comparing and sourcing RF Antennas components through Winsun (HK) Electronics.
What should I check when selecting RF Antennas components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Antennas part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Antennas parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Antennas components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
