RF Antennas
Browse available RF Antennas part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

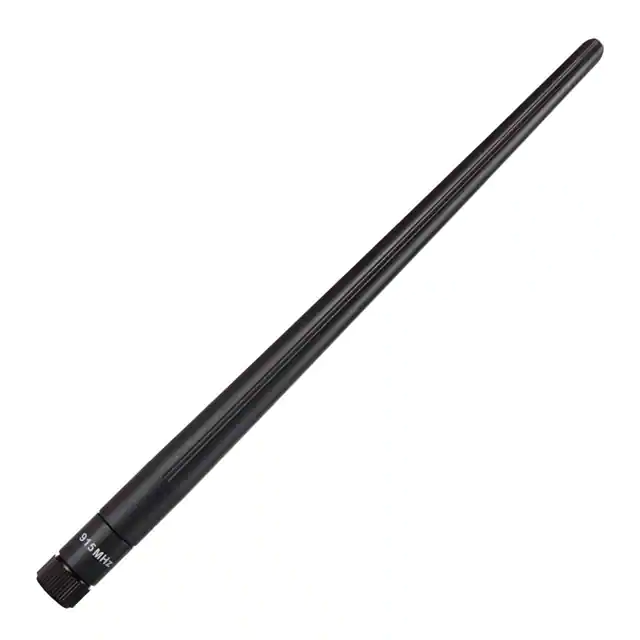

TI.92.2113915MHZ TERMINAL ANTENNA 2DBI SMA |
430 | - |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Tilt | 1 | - | - | 1.21dBi, 2.14dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 7.795" (198.00mm) | ISM |
|
ANT-916-CW-RH-SMARF ANT 916MHZ WHIP STR SMA MALE |
273 | - |
|
Datasheet | RH | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 900MHz ~ 935MHz | Whip, Straight | 1 | 1.9 | - | -1.3dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.008" (51.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
1000418RF ANT 2.4GHZ/4.9GHZ STAMPED MET |
5,523 | - |
|
Datasheet | Prestta™ | Tray | Active | Bluetooth, Cellular, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Stamped Metal | 2 | 2.1 | - | 4dBi, 4.2dBi | - | - | U.FL | - | - | - | Screw Mount | 0.201" (5.10mm) | 802.11a/b/g/n/c, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

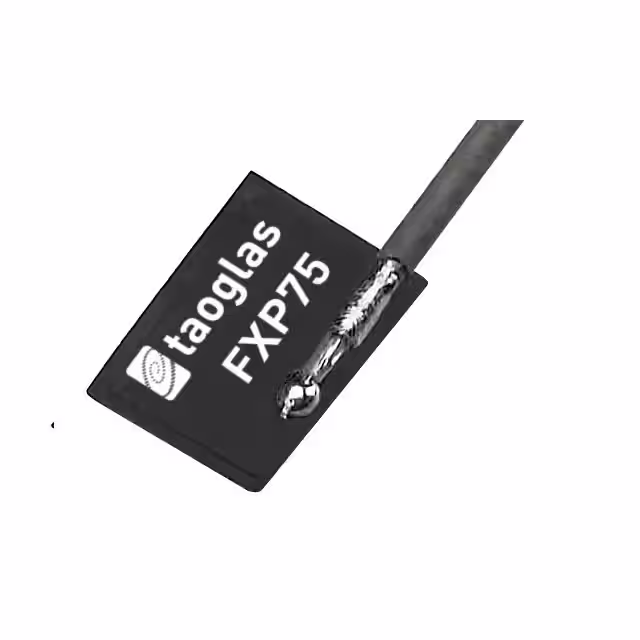

FXP75.07.0045BRF ANT 2.4GHZ FLAT IPEX 45MM |
1,287 | - |
|
Datasheet | Atom | Bag | Active | Bluetooth | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Flat Patch | 1 | 2 | - | 2.5dBi | 2 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.009" (0.24mm) | Bluetooth |
|
IP.1621.25.4.A.02RF ANT 1.6GHZ CER PATCH PIN ADH |
1,098 | - |
|
Datasheet | - | Tray | Active | - | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.616GHz ~ 1.626GHz | Ceramic Patch | 1 | 1.5 | - | 2dBi | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | - |
|
ANT-868-PW-QWRF ANT 868MHZ WHIP STR CAB PAN |
373 | - |
|
Datasheet | PW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 750MHz ~ 950MHz | Whip, Straight | 1 | 1.9 | - | 1.6dBi | - | Cable - 216mm | Solder | - | - | - | Panel Mount | 3.307" (84.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-433-PW-QWRF ANT 433MHZ WHIP STR CAB PAN |
174 | - |
|
Datasheet | PW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 400MHz ~ 470MHz | Whip, Straight | 1 | 1.9 | - | 3.3dBi | - | Cable - 216mm | Solder | - | - | - | Panel Mount | 6.811" (173.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
ANT-868-CW-QWRF ANT 868MHZ WHIP STR RP-SMA ML |
1,025 | - |
|
Datasheet | CW | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 700MHz, 750MHz, 800MHz, 900MHz, 950MHz | 750MHz ~ 950MHz | Whip, Straight | 1 | 1.9 | - | 1.6dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.307" (84.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|

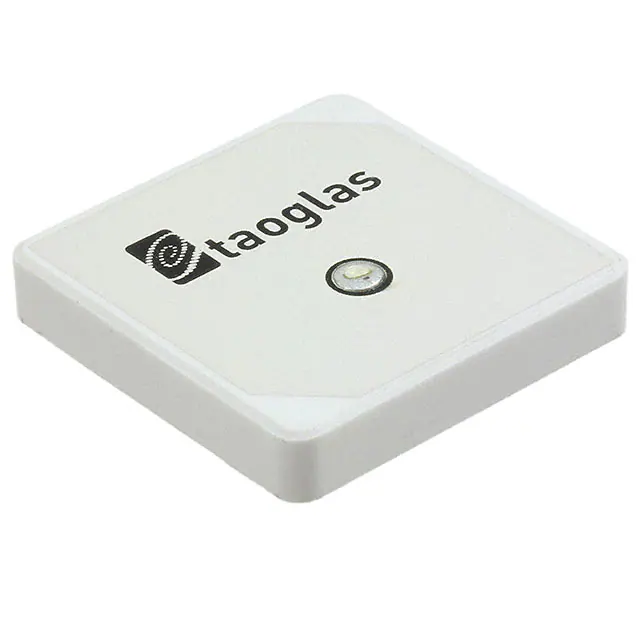

CGGBP.35.6.A.02RF ANT 1.56/1.575GHZ CER PATCH |
2,240 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.56GHz, 1.575GHz, 1.602GHz | 1.533GHz ~ 1.589GHz, 1.547GHz ~ 1.603GHz, 1.574GHz ~ 1.63GHz | Ceramic Patch | 3 | 2.5 | -10dB | 4.5dBi, 3dBi, 4.5dBi | - | - | Pin | - | - | - | Adhesive | 0.256" (6.50mm) | Beidou, Galileo, GLONASS, GPS |
|
ANT-2.4-CW-HWRF ANT 2.4GHZ WHIP STR RP-SMA ML |
1,228 | - |
|
Datasheet | HW | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.3GHz ~ 2.6GHz | Whip, Straight | 1 | 2 | - | 3.2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.724" (120.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|

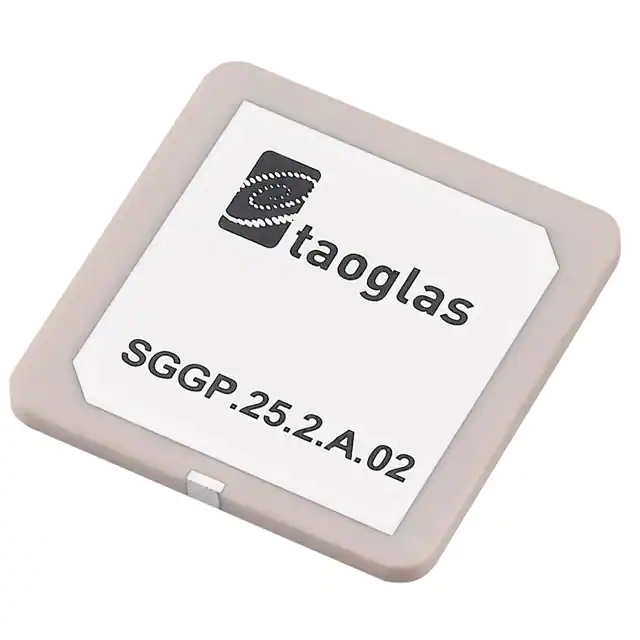

SGGP.25.2.A.02RF ANT 1.575/1.602GHZ CER PATCH |
12,011 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Ceramic Patch | 2 | - | -10dB | 3.3dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | GLONASS, GPS |
|
ANT-433-CW-HD-SMARF ANT 433MHZ WHIP STR SMA MALE |
6,473 | - |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 420MHz ~ 445MHz | Whip, Straight | 1 | 2 | - | 0.7dBi | - | - | SMA Male | - | - | - | Connector Mount | 3.465" (88.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
W6112B0100RF ANT FLAT PATCH IPEX ADH |
625 | - |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | - | 698MHz ~ 960MHz, 1.428GHz ~ 1.51GHz, 1.559GHz ~ 1.61GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz | Flat Patch | 6 | - | -6dB | 4.6dBi | 3 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | LTE |
|
ANT-916-OC-LG-SMARF ANT 916MHZ WHIP TILT SMA MALE |
736 | - |
|
Datasheet | OC | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 895MHz ~ 935MHz | Whip, Tilt | 1 | 2 | - | 2.2dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.618" (193.50mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-418-CW-RH-SMARF ANT 418MHZ WHIP STR SMA MALE |
266 | - |
|
Datasheet | RH | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 413MHz ~ 423MHz | Whip, Straight | 1 | 1.9 | - | -6.7dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.008" (51.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
2128600001WI-FI/BLUETOOTH HINGED EXT ANTEN |
1,931 | - |
|
Datasheet | 212860 | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | - | -10dB | 5.3dBi, 4.5dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.268" (108.40mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
ANT-916-CW-HDRF ANT 916MHZ WHIP STR RP-SMA ML |
185 | - |
|
Datasheet | HD | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 873MHz ~ 958MHz | Whip, Straight | 1 | 2 | - | -0.3dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 2.559" (65.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
W1063MRF ANT 898MHZ WHIP TILT SMA MALE |
1,084 | - |
|
Datasheet | - | Bulk | Active | WiFi | UHF (300MHz ~ 1GHz) | 898MHz | 868MHz ~ 928MHz | Whip, Tilt | 1 | 2.5 | - | 3dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.673" (194.90mm) | WLAN |
|
ANT-868-CW-HW-SMARF ANT 868MHZ WHIP STR SMA MALE |
481 | - |
|
Datasheet | HW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 855MHz ~ 880MHz | Whip, Straight | 1 | 1.9 | - | 0dBi | - | - | SMA Male | - | - | - | Connector Mount | 5.335" (135.50mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-868-CW-QW-SMARF ANT 868MHZ WHIP STR SMA MALE |
297 | - |
|
Datasheet | CW | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 700MHz, 750MHz, 800MHz, 900MHz, 950MHz | 750MHz ~ 950MHz | Whip, Straight | 1 | 1.9 | - | 1.6dBi | - | - | SMA Male | - | - | - | Connector Mount | 3.307" (84.00mm) | ISM, LoRa, Sensor Networks, SigFox |
RF Antennas FAQ
Common questions about selecting, comparing and sourcing RF Antennas components through Winsun (HK) Electronics.
What should I check when selecting RF Antennas components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Antennas part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Antennas parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Antennas components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
