RF Antennas

Browse available RF Antennas part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.

For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.

Compare Part Numbers Review available models and manufacturers

Datasheets & Specifications Access technical references quickly

RFQ & BOM Support Send quantities for sourcing and quotation

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	RF Family/Standard	Frequency Group	Frequency (Center/Band)	Frequency Range	Antenna Type	Number of Bands	VSWR	Return Loss	Gain	Power - Max	Features	Termination	Ingress Protection	Grade	Qualification	Mounting Type	Height (Max)	Applications
W1010 RF ANT 2.4GHZ WHIP TILT SMA 3" Pulse Electronics	544	-	RFQ	Datasheet	-	Bulk	Active	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz)	2.4GHz	2.4GHz ~ 2.5GHz	Whip, Tilt	1	2	-	2dBi	-	-	SMA Male	-	-	-	Connector Mount	4.274" (108.55mm)	Bluetooth, Wi-Fi, WLAN, Zigbee™
ACAG1204-868-T RF ANT 868MHZ CHIP SOLDER SMD Abracon LLC	3,824	-	RFQ	Datasheet	ACAG	Tape & Reel (TR)	Active	General ISM	UHF (300MHz ~ 1GHz)	868MHz	858MHz ~ 878MHz	Chip	1	2	-	2.63dBi	-	-	Solder	-	-	-	Surface Mount	0.063" (1.60mm)	ISM, LoRa, Sigfox

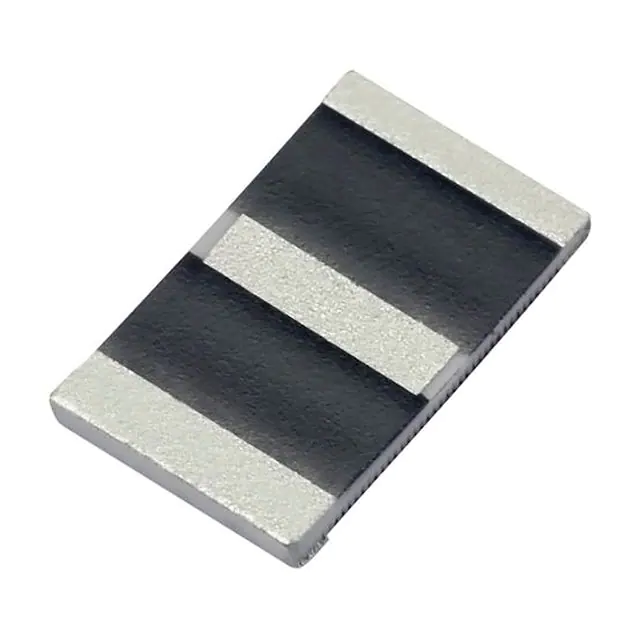

ILA.09 RF ANT 915MHZ CHIP SOLDER SMD Taoglas Limited	5,023	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	General ISM	UHF (300MHz ~ 1GHz)	915MHz	902MHz ~ 928MHz	Chip	1	-	-	-3dBi	2 W	-	Solder	-	-	-	Surface Mount	0.020" (0.50mm)	ISM, LoRa, LPWAN, Sigfox
SRFI028-100 INCA 433MHZ ANTENNA - 100MM CABL Antenova	695	-	RFQ	Datasheet	FlexiiANT®	Bulk	Active	General ISM	UHF (300MHz ~ 1GHz)	433MHz	432MHz ~ 434MHz	PCB Trace	1	1.6	-11dB	2.8dBi	-	Cable - 100mm	U.FL (UMCC), I-PEX MHF	-	-	-	Adhesive	0.006" (0.15mm)	ISM
1002289 RF ANT 700MHZ/750MHZ FLAT PATCH KYOCERA AVX	2,822	-	RFQ	Datasheet	Prestta™	Bulk	Active	Cellular	Wide Band	700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz	700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz	Flat Patch	8	2.5	-	-	2 W	Cable - 25mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.049" (1.25mm)	CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA
ANT-DB1-LCD-RPS 2.4/5.8GHZ DIPOLE ANT RP-SMA TE Connectivity Linx	520	-	RFQ	Datasheet	-	Bag	Active	WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.4GHz, 2.5GHz, 5GHz, 5.7GHz, 5.8GHz	2.4GHz ~ 2.5GHz, 5.12GHz ~ 5.72GHz, 5.72GHz ~ 5.88GHz	Whip, Tilt	3	1.9	-	2.8dBi, 2.92dBi, 4.5dBi	10 W	-	RP-SMA Male	-	-	-	Connector Mount	3.272" (83.10mm)	ISM, U-NII, WiFi, WLAN
ANT-DB1-LCD-SMA 2.4/5.8GHZ DIPOLE ANTENNA SMA TE Connectivity Linx	318	-	RFQ	Datasheet	-	Bag	Active	WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.4GHz, 2.5GHz, 5GHz, 5.7GHz, 5.8GHz	2.4GHz ~ 2.5GHz, 5.12GHz ~ 5.72GHz, 5.72GHz ~ 5.88GHz	Whip, Tilt	3	1.9	-	2.8dBi, 2.92dBi, 4.5dBi	10 W	-	SMA Male	-	-	-	Connector Mount	3.272" (83.10mm)	ISM, U-NII, WiFi, WLAN
9000440F0-AA12L0150 ANTENNA ASSY, GPS 150 D0230 KYOCERA AVX	1,231	-	RFQ	Datasheet	-	Box	Active	Navigation	UHF (1GHz ~ 2GHz)	1.56GHz, 1.575GHz, 1.598GHz, 1.606GHz	-	PCB Trace	4	2.3	-	2.4dBi, 2.4dBi, 2.5dBi, 2.5dBi	-	-	U.FL	-	-	-	Adhesive	-	Beidou, Galileo, GLONASS, GPS
1002289F0-AA10L0100 ANTENNA 100MM LTE/CELLULAR WIDE KYOCERA AVX	1,977	-	RFQ	Datasheet	Prestta™	Bulk	Active	Cellular	Wide Band	700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz	700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz	Flat Patch	8	2.5	-	-	2 W	Cable - 100mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.049" (1.25mm)	CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA
P522309 RF ANT 850MHZ/900MHZ FLAT PATCH KYOCERA AVX	1,546	-	RFQ	Datasheet	Prestta™	Bulk	Active	Cellular	Wide Band	850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz	824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz	Flat Patch	5	3	-	2.5dBi, 1.7dBi, 1.7dBi, 3.2dBi, 3.8dBi	2 W	Cable - 100mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.049" (1.25mm)	CDMA, DCS, GSM, PCS, UMTS, WCDMA
2203550001 EXTERNAL LTE ANTENNA WITH SMA MA Molex	1,898	-	RFQ	Datasheet	-	Bulk	Active	Cellular	-	-	-	Whip, Right Angle	-	-	-	-	-	-	SMA Male	-	-	-	Connector Mount	5.106" (129.70mm)	5G, LTE
ANT-LTE-RPC-UFL RF ANT LTE RIGID PCB ADHES UFL TE Connectivity Linx	1,371	-	RFQ	Datasheet	RPC	Bag	Active	Cellular, Navigation	Wide Band	600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.575GHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.4GHz, 2.5GHz, 3.3GHz, 3.4GHz, 3.5GHz, 3.6GHz	600MHz ~ 3.8GHz	PCB Trace	7	2.5, 1.8, 2.4, 1.8, 1.4, 2.1, 4.1	-7.4dB, -10.9dB, -7.7dB, -10.9dB, -15.6dB, -9.0dB, -4.3dB	3.6dBi, 4.9dBi, 6.3dBi, 5.1dBi, 5.0dBi, 4.6dBi, 3.1dBi	2 W	Cable - 100mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.031" (0.80mm)	2G, 3G, 4G, Beidou, COMPASS, GALILEO, GLONASS, GNSS, GPS, GSM, LoRaWAN, LPWA, LTE, LTE-M, NB-Iot, UMTS
ANT-8WHIP3H-SMA RF ANT 868MHZ WHIP TILT SMA MALE RF Solutions	364	-	RFQ	Datasheet	-	Bulk	Active	-	UHF (300MHz ~ 1GHz)	868MHz	-	Whip, Tilt	1	-	-	3dBi	-	-	SMA Male	-	-	-	Connector Mount	8.268" (210.00mm)	-

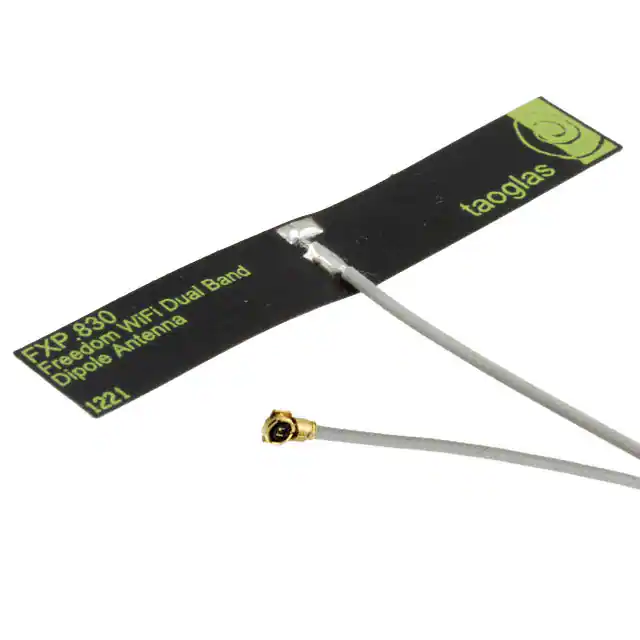

FXP830.24.0100B RF ANT 2.4GHZ/5.4GHZ FLAT PATCH Taoglas Limited	2,398	-	RFQ	Datasheet	Freedom	Bag	Active	Bluetooth, WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.4GHz, 5.4GHz	2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz	Flat Patch	2	-	-	2.6dBi, 5dBi	2 W	Cable - 100mm	I-PEX MHF4L	-	-	-	Adhesive	0.004" (0.10mm)	Bluetooth, Wi-Fi
FXP831.07.0100C RF ANT 2.4GHZ/5.4GHZ FLAT PATCH Taoglas Limited	1,255	-	RFQ	Datasheet	Freedom	Bag	Active	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.4GHz, 5.4GHz	2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz	Flat Patch	2	2.5	-	3dBi, 5.5dBi	2 W	Cable - 100mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.004" (0.10mm)	Bluetooth, DSRC, V2V, Wi-Fi, Zigbee™
ANT-GNSSCP-SM12L1 RF ANT GNSS PATCH L1 12X12 SMD TE Connectivity Linx	743	-	RFQ	Datasheet	GNSSCP	Tape & Reel (TR)	Active	Navigation	UHF (1GHz ~ 2GHz)	1.575GHz, 1.602GHz	1.567GHz ~ 1.609GHz	Ceramic Patch	2	7, 6.1	-2.5dB, -2.9dB	2.9dBi, 1dBi	8 W	-	Solder	-	-	-	Surface Mount	0.157" (4.00mm)	Beidou, Galileo, GLONASS, GNSS, GPS
2133530150 LTE/GPS COMBO FLEXIBLE ANTENNA 1 Molex	2,382	-	RFQ	Datasheet	213353	Bag	Active	Cellular, Navigation	Wide Band	829MHz, 1.45GHz, 1.6GHz, 1.5605GHz, 1.5745GHz, 1.602GHz, 2.2GHz, 3.75GHz, 4.7GHz, 7.2GHz	698MHz ~ 960MHz, 1.4GHz ~ 1.5GHz, 1.5GHz ~ 1.7GHz, 1.558GHz ~ 1.563GHz, 1.573GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz, 1.7GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.9GHz ~ 8.5GHz	Flat Patch	10	-	-5dB, -10dB	2.5dBi, 2.3dBi, 2.3dBi, 5.4dBi, 5.4dBi, 4.5dBi, 7dBi	-	Cable - 150mm	U.FL (UMCC), I-PEX MHF	-	-	-	Adhesive	0.004" (0.10mm)	Beidou, GLONASS, GPS, LTE, UWB
W1027 RF ANT 2.4GHZ WHP TILT RP-SMA 5" Pulse Electronics	1,319	-	RFQ	Datasheet	-	Bulk	Active	802.15.4, WiFi	UHF (2GHz ~ 3GHz)	2.4GHz	2.4GHz ~ 2.5GHz	Whip, Tilt	1	1.9	-	3.2dBi	-	-	RP-SMA Male	-	-	-	Connector Mount	5.913" (150.20mm)	WLAN, Zigbee™
W3907B0100 RF ANT 2.15GHZ FLAT PATCH CAB Pulse Electronics	1,685	-	RFQ	Datasheet	GEMINI	Bulk	Active	Cellular	Wide Band	2.15GHz	698MHz ~ 3.6GHz	Flat Patch	6	-	-7.5dB	4.2dBi	3 W	Cable - 100mm	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	-	LTE
FXP73.09.0100A RF ANT 2.4GHZ FLAT PATCH CAB ADH Taoglas Limited	8,593	-	RFQ	Datasheet	Blue Diamond	Bag	Active	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz)	2.4GHz	2.4GHz ~ 2.483.5GHz	Flat Patch	1	2	-10dB	2.5dBi	5 W	Cable - 100mm	MMCX Male	-	-	-	Adhesive	0.004" (0.10mm)	Bluetooth, Wi-Fi, Zigbee™

WINSUN SOURCING SUPPORT

Need RF Antennas Sourcing Support?

Send the manufacturer, part number, quantity and target delivery requirement. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and hard-to-find or obsolete components.

Global component sourcing support BOM, shortage and EOL support

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

RF Antennas FAQ

Common questions about selecting, comparing and sourcing RF Antennas components through Winsun (HK) Electronics.

What should I check when selecting RF Antennas components?

Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.

Can Winsun help source specific RF Antennas part numbers?

Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.

Do you support shortage, obsolete or hard-to-find RF Antennas parts?

Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.

How do I request a quote for RF Antennas components?

Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
