RF Antennas
Browse available RF Antennas part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FXUB66.07.0150CRF ANT 3.4GHZ FLAT PATCH U.FL |
196 | - |
|
Datasheet | - | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 3.4GHz | 700MHz ~ 6GHz | Flat Patch | 1 | 2.2 | -7dB | 5dBi | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | CDMA, GPS, GSM, LTE, UMTS, WLAN |
|
H2UE3P1D2G0100LTE/4G FULL BAND 698-960 1710-26 |
18,648 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | Wide Band | 748MHz, 892MHz, 1.94GHz, 2.35GHz, 2.59GHz | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz | Chip | 5 | 3 | - | 1.1dBi, 1.4dBi, 3.2dBi, 3.8dBi, 4.2dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.236" (6.00mm) | 2G, 3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
|
FXP830.07.0100CRF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
2,889 | - |
|
Datasheet | Freedom | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Flat Patch | 2 | - | - | 2.6dBi, 5dBi | 2 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | WLAN |
|
1052630001RF ANT 850/900MHZ FLAT 100MM |
601 | - |
|
Datasheet | 105263 | Tray | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2GHz, 2.6GHz | 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.5GHz ~ 2.69GHz | Flat Patch | 6 | - | -6.8dB, -7dB, -7.5dB, -10dB, -10.5dB | 2dBi, 2.2dBi, 2.3dBi, 3.1dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | GSM, LTE, UMTS |
|
A24-HASM-450RF ANT 2.4GHZ WHIP TILT RP-SMA |
5,319 | - |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Tilt | 1 | 2 | - | 2.1dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.500" (114.30mm) | - |
|
A24-HABUF-P5IRF ANT 2.4GHZ WHIP STR U.FL FEM |
469 | - |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 2.1dBi | 1 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 4.114" (104.50mm) | - |
|
TG.55.81134G/3G/2G MONOPOLE TERMINAL ANTEN |
1,960 | - |
|
Datasheet | - | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

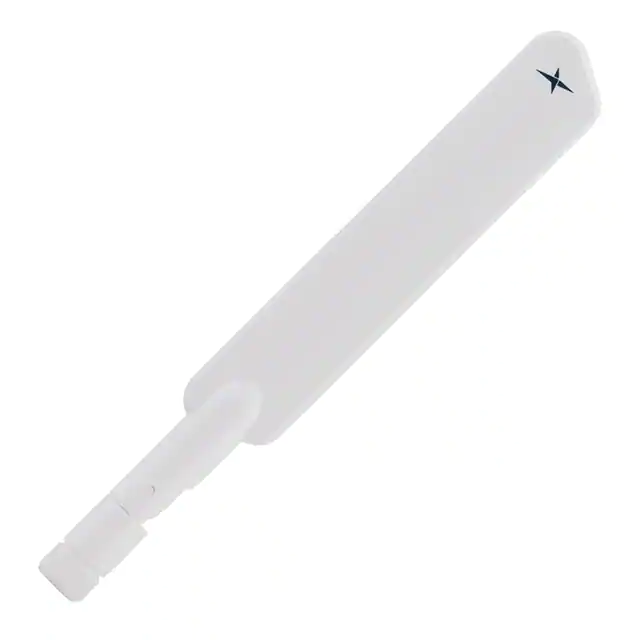

TG.55.8113W5G/4G WHITE TERMINAL MOUNT MONOP |
654 | - |
|
Datasheet | - | Bag | Active | Cellular, Navigation | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.4725GHz, 1.795GHz, 2.045GHz, 2.495GHz, 3.4GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.563GHz ~ 1.587GHz, 1.71GHz ~ 1.88GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.5GHz, 5.15GHz ~ 5.925GHz | Blade, Tilt | 10 | - | - | -0.68dBi, 0.14dBi, -2.14dBi, -1.88dBi, 0.15dBi, 0.58dBi, -0.74dBi, 0.87dBi, -0.59dBi, 1.98dBi, 1.37dBi | 2 W | - | SMA Male | - | - | - | Connector Mount | 6.772" (172.00mm) | DCS, GPS, GSM, LTE, UMTS |
|
ANT-STUB-433SMRF ANT 433MHZ WHIP STR SMA 48MM |
338 | - |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Straight | 1 | 2 | -20.1dB | 0dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.894" (48.12mm) | - |
|
ANT-916-CW-RCSRF ANT 916MHZ WHIP RA RP-SMA MAL |
531 | - |
|
Datasheet | RCS | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 886MHz ~ 946MHz | Whip, Right Angle | 1 | 1.9 | - | 3.3dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 2.106" (53.50mm) | ISM, LoRa, Sensor Networks, SigFox |
|
SRFL064-150RF ANT 2.595GHZ FLAT PATCH |
1,645 | - |
|
Datasheet | FlexiiANT® | Bulk | Active | Cellular | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.955GHz, 2.35GHz, 2.595GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz | Flat Patch | 6 | 1.6, 1.7, 2.2, 2.7, 3.1 | -12dB, -11dB, -8dB, -6dB, -5dB | 1.03dBi, 1.03dBi, 1.71dBi, 3.86dBi, 3.9dBi, 3.88dBi | - | Cable - 150mm | I-PEX, MHF | - | - | - | Adhesive | 0.006" (0.15mm) | 4G, 5G, LTE |
|
SGGP.18.4.A.08RF ANT 1.575/1.602GHZ CER PATCH |
1,083 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.607GHz | Ceramic Patch | 2 | - | -10dB | 2.86dBi, 3.04dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Galileo, GLONASS, GPS |
|
ANT-2.4-CW-RAH-RPSRF ANT 2.4GHZ WHIP RA RP-SMA MAL |
2,513 | - |
|
Datasheet | RAH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.35GHz ~ 2.6GHz | Whip, Right Angle | 1 | 2 | - | 1.6dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 1.008" (25.60mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
ANT-2.4-CW-RH-RPSRF ANT 2.4GHZ WHIP STR RP-SMA ML |
328 | - |
|
Datasheet | RH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.39GHz ~ 2.49GHz | Whip, Straight | 1 | 2 | - | -0.9dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 1.063" (27.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
NN03-310TRIO MXTEND MULTIBAND ANTENNA |
24,683 | - |
|
Datasheet | TRIO mXTEND™ | Tape & Reel (TR) | Active | Bluetooth, Cellular, Navigation, WiFi | Ultra Wide Band | 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2GHz, 2.1GHz, 2.3GHz, 2.5GHz, 2.6GHz, 1.561GHz, 1.575GHz, 1.606GHz, 2.45GHz, 3.5GHz, 3.7GHz, 3.8GHz | 698MHz ~ 3.8GHz | Chip | 12 | 3 | - | 2.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | 2G/3G/4G/5G, Bluetooth, GNSS, ISM, LTE, UWB, Wi-Fi |
|

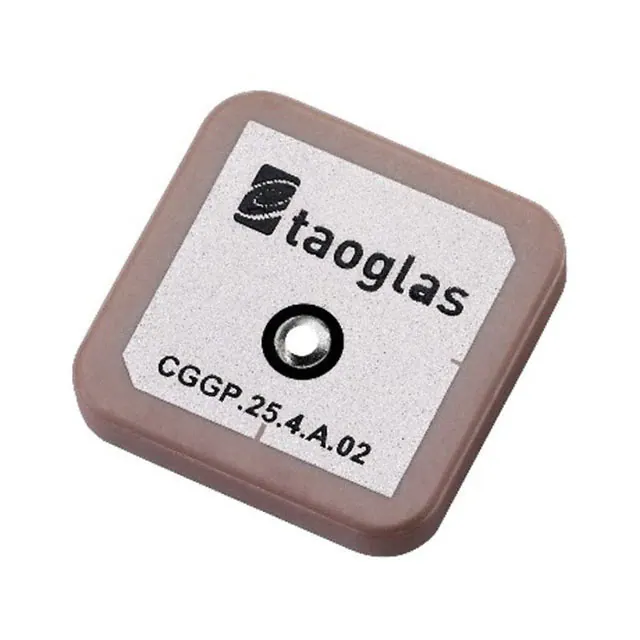

CGGP.25.4.A.02RF ANT 1.6GHZ CER PATCH PIN ADH |
3,119 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.575GHz ~ 1.61GHz | Ceramic Patch | 1 | 1.5 | - | 5dBi | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GPS |
|
ANT-2.4-CW-RAH-SMARF ANT 2.4GHZ WHIP RA SMA MALE |
1,106 | - |
|
Datasheet | RAH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.35GHz ~ 2.6GHz | Whip, Right Angle | 1 | 2 | - | 1.6dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.008" (25.60mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
UWCCP.01ACCURAUWB UWCCP.01 6-7 GHZ EMBED |
1,288 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | SHF (f > 4GHz) | 6.49GHz | 6.24GHz ~ 6.74GHz | Chip | 1 | - | -8dB | 6.5dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | UWB |
|
|
YE0001BAEXTERNAL CELLULAR ANTENNA |
1,046 | - |
|
Datasheet | - | Bag | Active | Cellular | UHF (3GHz ~ 4GHz) | 3.3GHz | 600MHz ~ 6GHz | Blade, Tilt | 1 | 3 | - | 5dBi | - | - | SMA Male | IP55 | - | - | Connector Mount | 8.701" (221.00mm) | 4G, 5G, LTE |
|

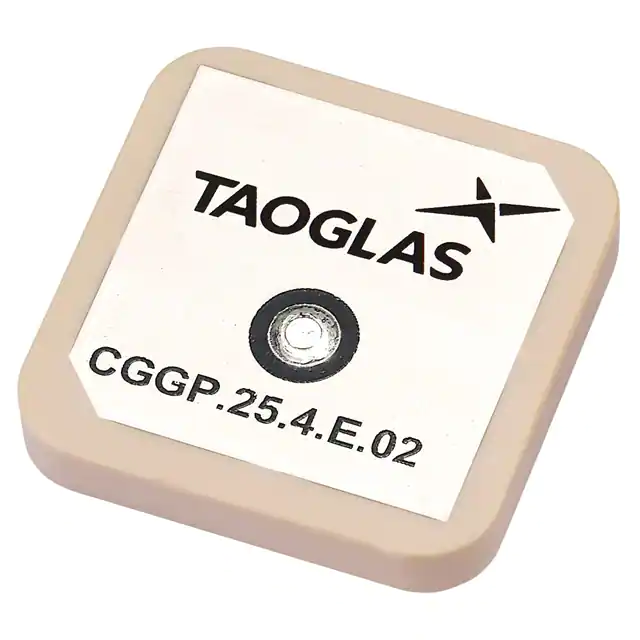

CGGP.25.4.E.02RF ANT 1.575/1.602GHZ CER PATCH |
5,084 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Ceramic Patch | 2 | 1.8 | - | 5.46dBi | - | - | Pin | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
RF Antennas FAQ
Common questions about selecting, comparing and sourcing RF Antennas components through Winsun (HK) Electronics.
What should I check when selecting RF Antennas components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Antennas part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Antennas parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Antennas components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
