RF Antennas
Browse available RF Antennas part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRFC011-100RF ANT 892MHZ/1.9GHZ FLAT PATCH |
1,912 | - |
|
Datasheet | - | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Patch | 2 | 2.2 | -12dB | 4dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | GSM, WCDMA |
|
1462000001RF ANT 829MHZ/2.2GHZ CHIP SLD |
5,045 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Chip | 2 | - | -5dB | 4.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.197" (5.00mm) | LTE |
|
1461530200RF ANT 2.4/5GHZ FLAT PATCH 200MM |
706 | - |
|
Datasheet | 146153 | Bulk | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | - | -10dB | 2.6dBi, 4dBi | 2 W | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | WLAN, Zigbee™ |
|
ANT-LPC-FPC-100RF ANT LTE CBRS FLEX ADHES UFL |
13,145 | - |
|
Datasheet | FPC | Bag | Active | Cellular, Navigation | Wide Band | 750MHz, 876MHz, 1.58GHz, 1.96GHz, 2.35GHz, 2.44GHz, 2.59GHz, 3.55GHz | 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.553GHz ~ 1.609GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.485GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Flat Patch | 8 | 8.2, 4.8, 1.7, 4.9, 3.5, 2.7, 3.1, 2 | -3.7dB, -11.7dB, -3.6dB, -5.1dB, -5.8dB, -9.5dB | 0.1dBi, 3.7dBi, 3.3dBi, 2.2dBi, 3.3dBi, 3.9dBi, 5dBi, 5.7dBi | 2 W | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.010" (0.20mm) | General Purpose |
|
FXP73.07.0100ARF ANT 2.4GHZ FLAT PATCH IPEX |
10,602 | - |
|
Datasheet | Blue Diamond | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | Flat Patch | 1 | 2 | - | 2.5dBi | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, WLAN, Zigbee™ |
|
ANT-916-JJB-HT-TRF ANT 916MHZ DOME SLD TH |
11,803 | - |
|
Datasheet | JJB-HT | Strip | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 2 | - | -12.3dBi | - | - | Solder | - | - | - | Through Hole | 0.480" (12.20mm) | ISM, LoRa, Sensor Networks, SigFox |
|
1461860050RF ANT 1.561/1.575GHZ FLAT 50MM |
5,377 | - |
|
Datasheet | 146186 | Bulk | Active | Navigation, WiFi | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz, 5GHz | 1.575GHz ~ 1.602GHz, 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz | Flat Patch | 5 | - | -10dB | 3.15dBi, 4.25dBi, 5dBi | 2 W | Cable - 50mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | BeiDou, GLONASS, WiMax, WLAN, Wi-Fi |
|
1052630002RF ANT 850MHZ/900MHZ FLAT 150MM |
3,463 | - |
|
Datasheet | 105263 | Tray | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2GHz, 2.6GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.69GHz | Flat Patch | 6 | - | -6.8dB, -7.5dB, -7.7dB, -8.5dB, -10.5dB, -11dB | 1.5dBi, 1.7dBi, 1.8dBi, 2.1dBi, 2.2dBi, 3dBi | 2 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | GSM, LTE, UMTS |
|
W1049B050RF ANT 2.4GHZ WHIP/TILT CONN MT |
408 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | - | - | 2dBi | - | Cable - 127mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 3.248" (82.50mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
AH168M245001-TRF ANT BLUETOOTH/WLAN/ZIGBEE SMD |
4,000 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 3 | - | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.026" (0.65mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

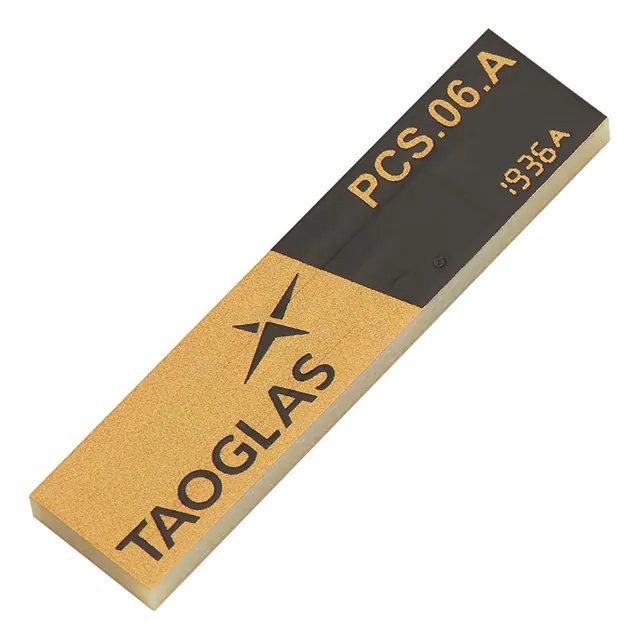

PCS.06.ARF ANT 700MHZ/850MHZ CHIP SLD |
5,699 | - |
|
Datasheet | Havok | Tape & Reel (TR) | Active | Cellular | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Chip | 7 | - | -7dB, -6dB | -0.21dBi, 0.77dBi, 0.61dBi, 3.05dBi, 2.92dBi, 3.17dBi, 3.72dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA |
|
W1039B030ANT EXT 2.4-2.5GHZ 76MM U.FL |
4,268 | - |
|
Datasheet | Stick Antenna | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz | Whip, Tilt | 2 | 2 | - | 1dBi, 2dBi | 2 W | Cable - 76mm | U.FL (UMCC), I-PEX MHF1 | IP20 | - | - | Connector Mount | 7.138" (181.30mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
P522304RF ANT 850MHZ/900MHZ CHIP SLD |
7,543 | - |
|
Datasheet | Prestta™ | Tape & Reel (TR) | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 5 | 2.5 | - | 1.4dBi, 1.2dBi, 1.8dBi, 1.1dBi, 2.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | CDMA, DCS, GSM, PCS, UMTS, WCDMA |
|
ANT-2.4-FPC-LH100UFANT 2.4 FPC 45X7 100MM CBL UFL |
1,988 | - |
|
Datasheet | ANT-2.4-FPC-LH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.4 | - | 6.1dBi | 2 W | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
ANTX100P001BWPEN3RF ANT 850MHZ/900MHZ FLAT PATCH |
8,547 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Flat Patch | 5 | 3 | - | 4.2dBi, 5.1dBi, 3.9dBi, 5dBi, 4.5dBi | 1 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.037" (0.95mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
W3908B0100RF ANT 1.585GHZ FLAT PATCH ADH |
5,797 | - |
|
Datasheet | GEMINI | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.585GHz | 1.56GHz ~ 1.61GHz | Flat Patch | 1 | - | -10dB | 0.3dBi | 3 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | Beidou, Galileo, GLONASS, GPS |
|
W3538B0150RF ANT 850/900MHZ PCB TRAC 150MM |
5,569 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 5 | - | -3dB, -6dB | 1.5dBi, 4.5dBi, 3.9dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.028" (0.70mm) | GSM, WCDMA |
|

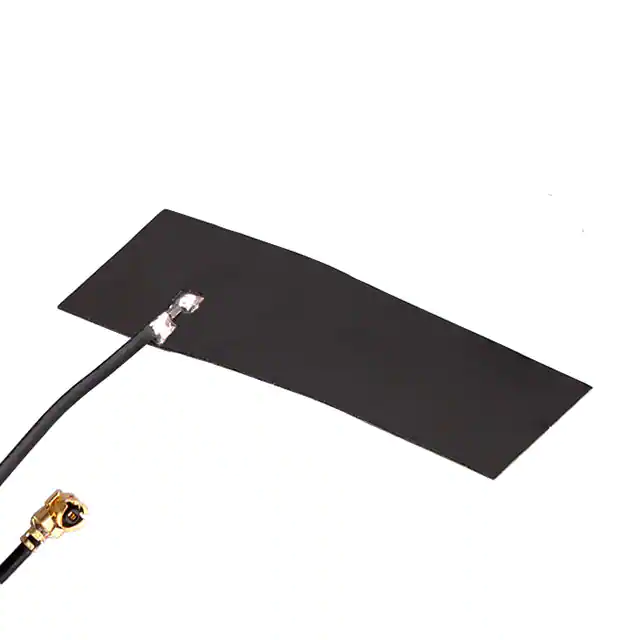

ANT-5GLFPC1-UFL-100RF ANT <960MHZ 5G FLEX ADHES UFL |
999 | - |
|
Datasheet | FPC | Bag | Active | Cellular | Wide Band | 700MHz, 800MHz | 698MHz ~ 803MHz, 791MHz ~ 960MHz | Flat Patch | 2 | 6.8, 3.7 | -2.5dB, -4.8dB | -3.2dBi, -3dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.010" (0.20mm) | 5G, Cellular, LTE |
|
0479500011RF ANT 2.4/5GHZ PCB TRC CAB .61" |
1,356 | - |
|
Datasheet | 47950 | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.483.5GHz, 4.8GHz ~ 5.9GHz | PCB Trace | 2 | - | -10dB, -9dB | 2.27dBi, 4.9dBi | 2 W | Cable - 100mm | SMT Male | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, WLAN, Zigbee™ |
|
ANT-5GWWS6-SMARF ANT 617MHZ-6GHZ 5G TILT SMA |
1,134 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.9475GHz, 3.75GHz, 4.7GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Blade, Tilt | 9 | 1.6, 1.7, 1.8, 1.9, 2, 2.1, 3.9 | - | 5.3dBi, 6dBi, 6dBi, 7.1dBi, 7dBi, 8.9dBi, 8.5dBi, 5.5dBi, 3.9dBi, 4.9dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 0.433" (11.00mm) | 5G, LTE |
RF Antennas FAQ
Common questions about selecting, comparing and sourcing RF Antennas components through Winsun (HK) Electronics.
What should I check when selecting RF Antennas components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Antennas part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Antennas parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Antennas components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
