RF Antennas
Browse available RF Antennas part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

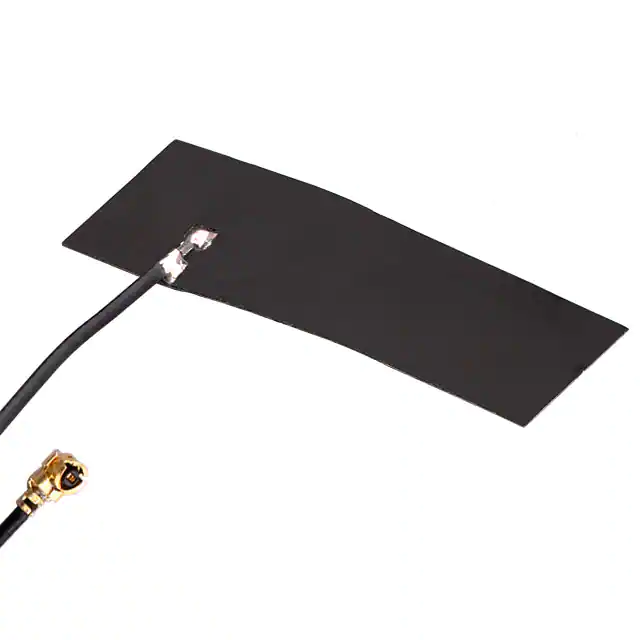

ANT-8/9-FPC-UFL-100RF ANT <960MHZ 5G FLEX ADHES UFL |
484 | - |
|
Datasheet | FPC | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 862MHz ~ 876MHz, 902MHz ~ 930MHz | Flat Patch | 2 | 2, 1.6 | -9.5dB, -12.7dB | -3.2dBi, -3dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.010" (0.20mm) | ISM, LoRaWAN, LPWA |
|
2065600300RF ANT 1.561/1.575GHZ FLAT 300MM |
3,065 | - |
|
Datasheet | 206560 | Bulk | Active | Navigation | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz | 1.558GHz ~ 1.61GHz | Flat Patch | 3 | - | -8dB | 0.5dBi, 0.9dBi | - | Cable - 300mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, GLONASS, GNSS, GPS |
|
GGBLA.125.AGPS/GLONASS/GALILEO/BEIDOU CERAM |
8,468 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | Wide Band | 1.1764GHz, 1.2276GHz, 1.2788GHz, 1.561GHz, 1.575GHz, 1.602GHz | - | Chip | 6 | - | -10dB, -10dB, -5dB, -10dB, -10dB, -10dB | 3.6dBi, 3.3dBi, 3.3dBi, 2.6dBi, 2.8dBi, 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
P822601RF ANT 700MHZ/750MHZ FLAT BAR |
5,975 | - |
|
Datasheet | Prestta™ | Tape & Reel (TR) | Active | Cellular | Wide Band | 700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz | 700MHz ~ 787MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | Flat Bar | 8 | 2.5 | - | 1.1dBi, 1.7dBi, 1.8dBi, 2.2dBi, 3.9dBi, 3.8dBi, 3.4dBi, 3.6dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
|
ANT-LTE-SP610-TRF ANT LTE 698MHZ-2.7GHZ CHIP SL |
7,797 | - |
|
Datasheet | Splatch® | Tape & Reel (TR) | Active | Cellular | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz | Chip | 4 | 3.4, 3.1, 3.0, 5.0 | -5.3dB, -5.8dB, -6.0dB, -3.5dB | 5.1dBi, 5.3dBi, 4.9dBi, 2.7dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.110" (2.80mm) | CAT-M1, Cellular, GSM, LTE, LTE-M, LPWA, NB-IOT, UMTS, 4G |
|
001-0021RF ANT 2.4GHZ/5.5GHZ PCB TRACE |
4,652 | - |
|
Datasheet | FlexPIFA™ | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 4.9GHz ~ 5.9GHz | PCB Trace | 2 | 3 | - | 3dBi | - | Cable - 100mm | MHF4L | - | - | - | Adhesive | 0.055" (1.40mm) | - |
|
2067640100RF ANT 868MHZ/915MHZ FLAT PATCH |
4,789 | - |
|
Datasheet | 206764 | Tray | Active | General ISM, Lora | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz | Flat Patch | 2 | - | -9dB | 1.2dBi | - | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | General Purpose |
|
SC0480COMPUTE MODULE CM4 ANTENNA KIT |
2,863 | - |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.45GHz | 2.4GHz ~ 2.5GHz, 5.1GHz ~ 5.8GHz | Whip, Tilt | 2 | 2 | - | 2dBi | 10 W | Cable - 205mm | SMA Female | - | - | - | Screw | 4.252" (108.00mm) | - |
|
F56NBAAA-G150ULTE FLEX ANTENNA |
988 | - |
|
Datasheet | Profile Contour | Bag | Active | Cellular | Wide Band | - | 617MHz ~ 960MHz, 1.7GHz ~ 6GHz | FlexPIFA | 7 | 01:02.5 | - | 1.7dBi, 3.5dBi, 3dBi, 4.2dBi, 4dBi, 5.1dBi, 6.9dBi | - | - | U.FL | - | - | - | Adhesive | - | 2G, 3G, 4G, 5G, LTE |
|
H2B1PD1A1C385LUNICTRON AA222 - DUAL BAND WIFI, |
880 | - |
|
Datasheet | - | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | PCB Trace | 2 | 2 | - | 3dBi, 4.4dBi | - | Cable - 100mm | I-PEX MHF | - | - | - | Adhesive | 0.020" (0.50mm) | 802.11b/g/n |
|
2367286-2LTE ANTENNA COTS FPC ASSEMBLY 50 |
2,224 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | PCB Trace | 3 | 4 | - | 4dBi, 4dBi, 4dBi | - | Cable - 200mm | MHF | - | - | - | Adhesive | 0.007" (0.19mm) | LTE, UMTS, WCDMA |
|

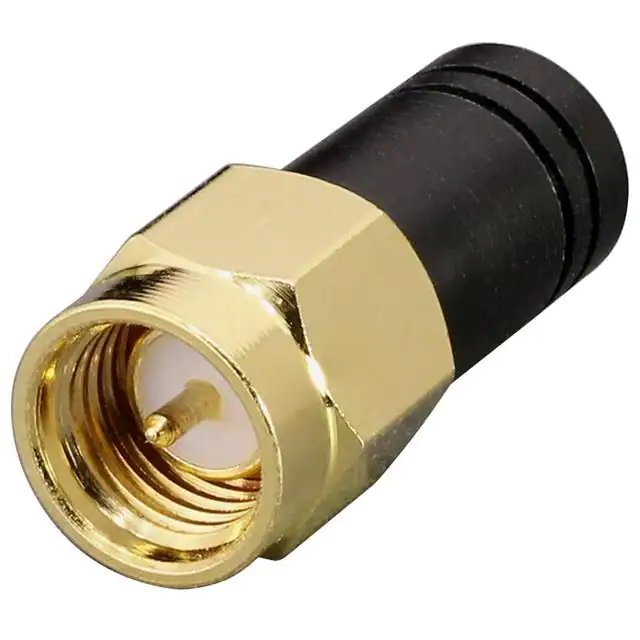

ANT-868-NUB-SMARF ANT 868MHZ SHORT WHIP SMA |
1,088 | - |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 862MHz ~ 876MHz | Whip, Straight | 1 | 1.7 | - | 4.2dBi | 25 W | - | SMA Male | - | - | - | Connector Mount | 0.776" (19.70mm) | ISM, LoRaWAN, LPWA, Sigfox |
|

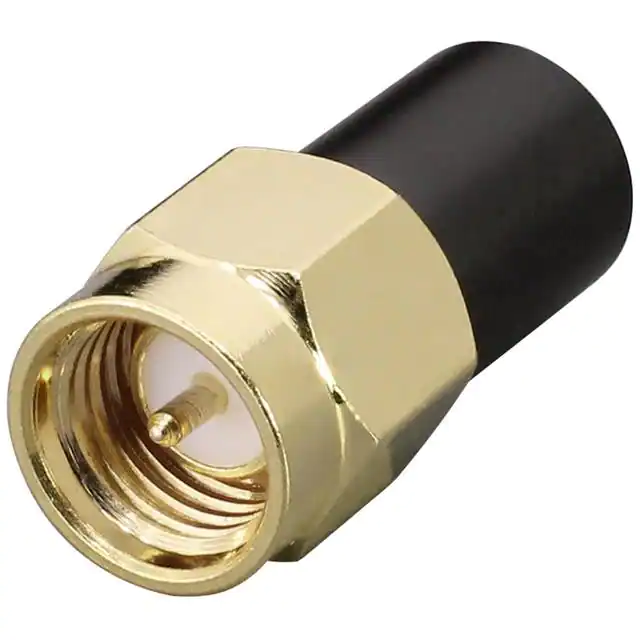

ANT-915-NUB-SMARF ANT 915MHZ SHORT WHIP SMA |
535 | - |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 930MHz | Whip, Straight | 1 | 2.6 | - | 3.9dBi | 25 W | - | SMA Male | - | - | - | Connector Mount | 0.697" (17.70mm) | ISM, LoRaWAN, LPWA |
|
W1030RF ANT 2.4GHZ WHP TILT RP-SMA 3" |
4,067 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.264" (108.30mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
W3538B0045STAND ALONE PWB ANTENNA |
578 | - |
|
Datasheet | Internal PCB Antenna | Box | Active | Cellular, Navigation | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99MHz, 1.92GHz ~ 2.17GHz | PCB Trace | 5 | - | -3dB, -5dB | 0.78dBi, 1.73dBi, 1.84dBi | - | Cable - 45mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.028" (0.70mm) | GPS, WCDMA |
|
PRO-IS-237RF ANT 2.4GHZ PCB TRACE CAB ADH |
1,295 | - |
|
Datasheet | Embedded Antenna | Bulk | Active | General ISM | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.485GHz | PCB Trace | 1 | 2 | - | 3dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | ISM |
|
|
YE0021AAMAG MNT LTE MONOPOL SMA M |
1,282 | - |
|
Datasheet | - | Bag | Not For New Designs | Cellular | Wide Band | 825MHz, 829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 2.2GHz, 2.43GHz, 3.65GHz, 4.5GHz, 5.5GHz | 690MHz ~ 960MHz, 698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz | Whip, Straight | 10 | 3 | - | 3.3dBi, 3.3dBi, 1.2dBi, 3.3dBi, -0.3dBi | - | Cable - 1.5m | SMA Male | IP65 | - | - | Magnetic | 1.173" (29.80mm) | LTE |
|
AH316M245001-TRF ANT 2.4GHZ CHIP SOLDER SMD |
23,486 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 3 | - | 1.9dBi | - | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | Bluetooth, WLAN, Zigbee™ |
|
ANT-4WHIP3H-SMARF ANT 433MHZ WHIP TILT SMA MALE |
503 | - |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Tilt | 1 | 2 | - | 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 8.504" (216.00mm) | - |
|
1001826RF ANT 868MHZ PCB CAB |
6,303 | - |
|
Datasheet | Prestta™ | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 868MHz ~ 870MHz | PCB Trace | 1 | - | -2.5dB | -9dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.031" (0.80mm) | ISM |
RF Antennas FAQ
Common questions about selecting, comparing and sourcing RF Antennas components through Winsun (HK) Electronics.
What should I check when selecting RF Antennas components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Antennas part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Antennas parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Antennas components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
