RF Antennas

Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	RF Family/Standard	Frequency Group	Frequency (Center/Band)	Frequency Range	Antenna Type	Number of Bands	VSWR	Return Loss	Gain	Power - Max	Features	Termination	Ingress Protection	Grade	Qualification	Mounting Type	Height (Max)	Applications
PE9863B-15 WR-284 Standard Gain Horn Antenn Pasternack	3,970	-	RFQ	Datasheet	-	Retail Package	Active	General ISM	Wide Band	3.275GHz	2.6GHz ~ 3.95GHz	Horn	1	1.5	-	15dBi	-	-	-	-	-	-	Waveguide Mount	16.090" (408.69mm)	General Purpose
PEWAN075-15NF WR75 GAIN HRN 10-15GHZ 15DBI Pasternack	3,854	-	RFQ	Datasheet	-	Tape & Box (TB)	Active	-	Wide Band	12.5GHz	10GHz ~ 15GHz	Horn	1	1.3	-	15dBi	-	Cable - 305mm, Cable - 3.048m, Cable - 7.62m	N Type Female	-	-	-	Waveguide Mount	1.122" (28.50mm)	General Purpose
PEWAN075-15ELSF WR75 GAIN HRN 10-15GHZ 15DBI Pasternack	4,005	-	RFQ	Datasheet	-	Tape & Box (TB)	Active	-	Wide Band	12.5GHz	10GHz ~ 15GHz	Horn	1	1.4	-	15dBi	-	Cable - 305mm, Cable - 3.048m, Cable - 7.62m	SMA Female	-	-	-	Waveguide Mount	1.122" (28.50mm)	General Purpose
PEWAN1048 WR-12 Waveguide Conical Gain Hor Pasternack	3,462	-	RFQ	Datasheet	-	Retail Package	Active	General ISM	SHF (f > 4GHz)	82GHz	77GHz ~ 87GHz	Horn	1	1.15	-	25dBi	-	-	-	-	-	-	Waveguide Mount	4.000" (101.60mm)	General Purpose
PEWAN1065 WR-5 Waveguide Conical Gain Horn Pasternack	4,297	-	RFQ	Datasheet	-	Retail Package	Active	General ISM	SHF (f > 4GHz)	180GHz	140GHz ~ 220GHz	Horn	1	1.15	-	10dBi	-	-	-	-	-	-	Waveguide Mount	1.000" (25.40mm)	General Purpose
PEANOM1140 L-band Omni Antenna 1.15 GHz to Pasternack	2,099	-	RFQ	Datasheet	-	Retail Package	Active	General ISM	UHF (1GHz ~ 2GHz)	1.275GHz	1.15GHz ~ 1.4GHz	Whip, Straight	1	2	-	4dBi	20 W	-	N Type Male	IP65	-	-	-	13.470" (342.13mm)	General Purpose

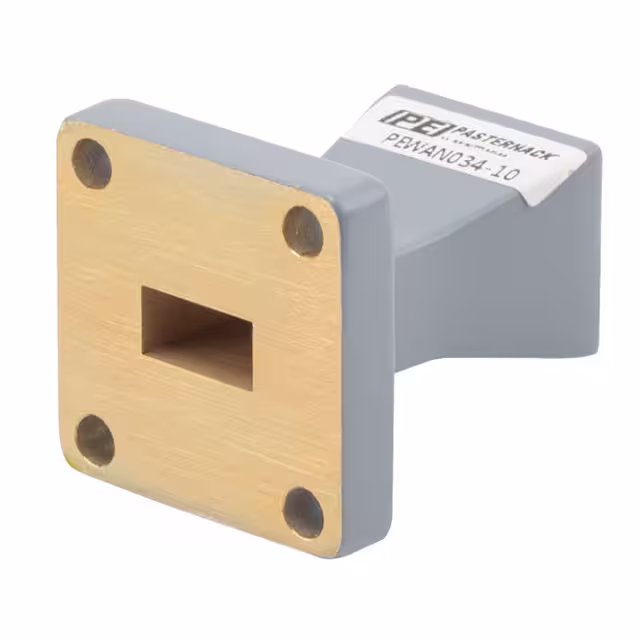

PEWAN034-10 WR34 GAIN HORN 22-33GHZ 10DBI Pasternack	2,067	-	RFQ	Datasheet	-	Bulk	Active	Waveguide	K-Ka Band (18GHz ~ 40GHz)	27.4GHz	22GHz ~ 33GHz	Horn	1	1.3	-	10dBi	-	-	-	-	-	-	Waveguide Flange Mount	-	-
PEWAN1066 WR-5 Waveguide Conical Gain Horn Pasternack	4,603	-	RFQ	Datasheet	-	Retail Package	Active	General ISM	SHF (f > 4GHz)	180GHz	140GHz ~ 220GHz	Horn	1	1.15	-	15dBi	-	-	-	-	-	-	Waveguide Mount	1.000" (25.40mm)	General Purpose

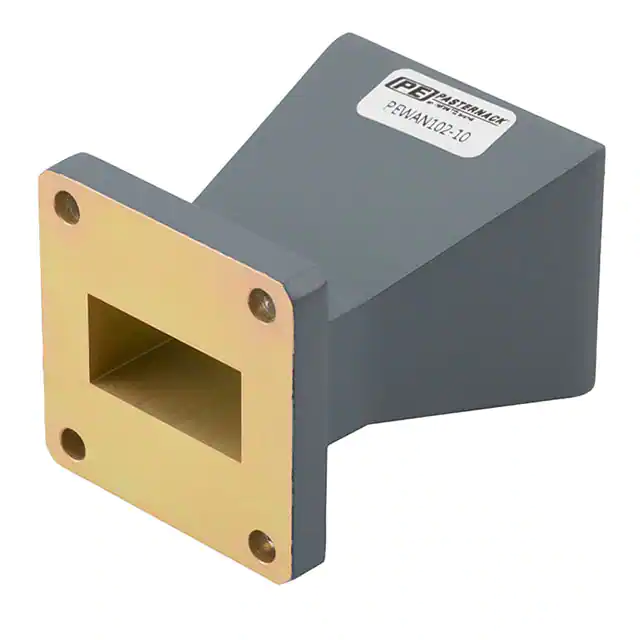

PEWAN102-10 WR102 GAIN HORN 7-11GHZ 10DBI Pasternack	3,354	-	RFQ	Datasheet	-	Bulk	Active	Waveguide	C-X Band (4GHz ~ 12GHz)	9GHz	7GHz ~ 11GHz	Horn	1	1.3	-	10dBi	-	-	-	-	-	-	Waveguide Flange Mount	-	-

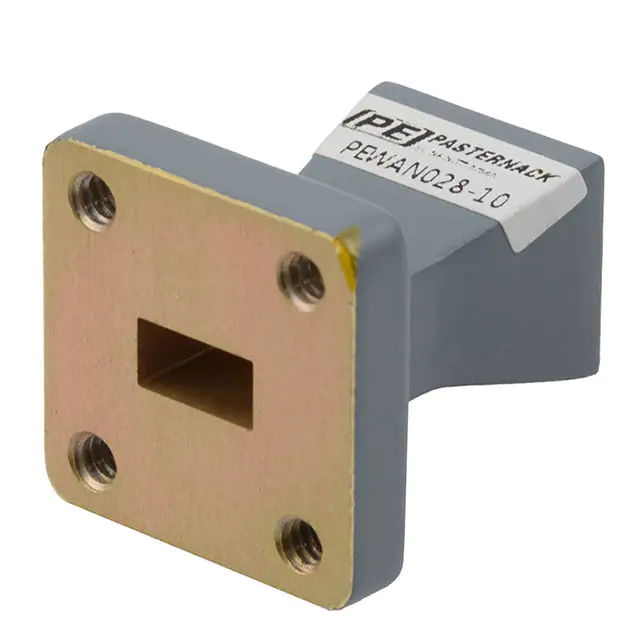

PEWAN028-10 WR28 GAIN HORN 26.5-40GHZ 10DBI Pasternack	2,311	-	RFQ	Datasheet	-	Bulk	Active	Waveguide	Ka Band (27GHz ~ 40GHz)	33.3GHz	26.5GHz ~ 40GHz	Horn	1	1.3	-	10dBi	-	-	-	-	-	-	Waveguide Flange Mount	-	-
