RF Antennas

Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	RF Family/Standard	Frequency Group	Frequency (Center/Band)	Frequency Range	Antenna Type	Number of Bands	VSWR	Return Loss	Gain	Power - Max	Features	Termination	Ingress Protection	Grade	Qualification	Mounting Type	Height (Max)	Applications

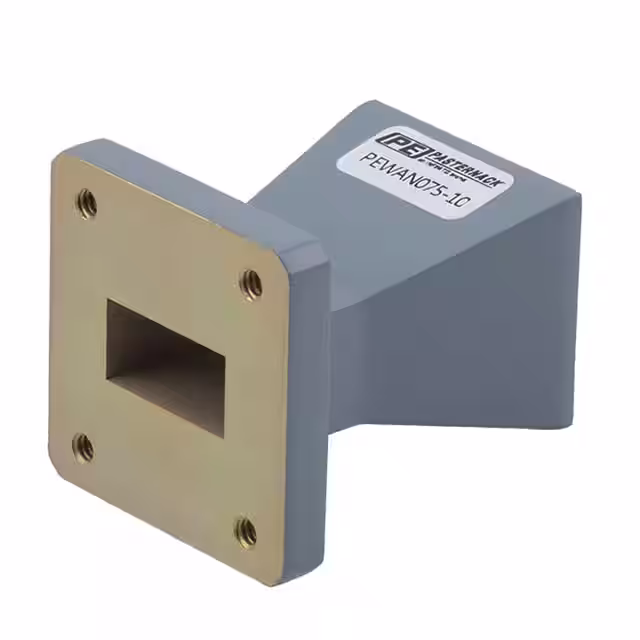

PEWAN075-10 WR75 GAIN HORN 10-15GHZ 10DBI Pasternack	3,844	-	RFQ	Datasheet	-	Bulk	Active	Waveguide	X-Ku Band (8GHz ~ 18GHz)	12.5GHz	10GHz ~ 15GHz	Horn	1	1.3	-	10dBi	-	-	-	-	-	-	Waveguide Flange Mount	-	-

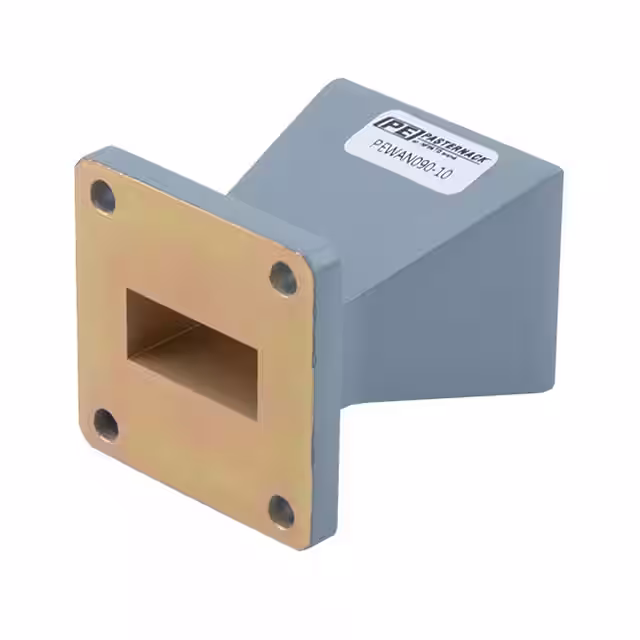

PEWAN090-10 WR90 GAIN HORN 8.2-12.4GHZ 10DBI Pasternack	4,842	-	RFQ	Datasheet	-	Bulk	Active	Waveguide	X Band (8GHz ~ 12GHz)	10.3GHz	8.2GHz ~ 12.4GHz	Horn	1	1.3	-	10dBi	-	-	-	-	-	-	Waveguide Flange Mount	-	-

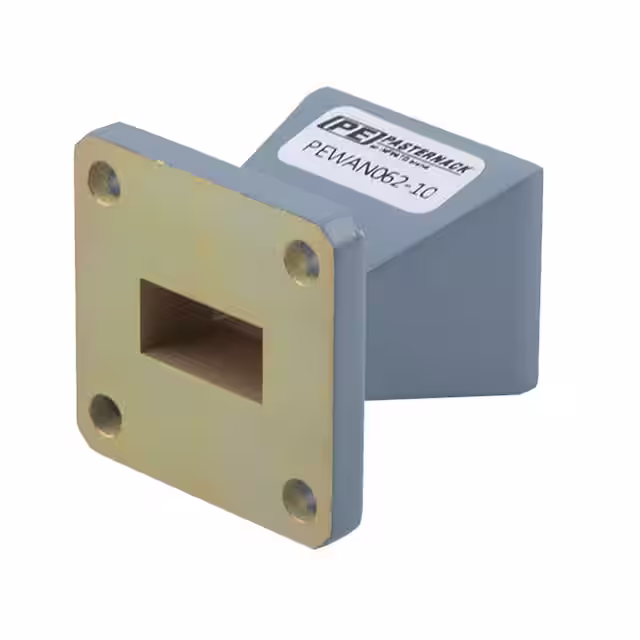

PEWAN062-10 WR62 GAIN HORN 12.4-18GHZ 10DBI Pasternack	1,679	-	RFQ	Datasheet	-	Bulk	Active	Waveguide	Ku Band (12GHz ~ 18GHz)	15.2GHz	12.4GHz ~ 18GHz	Horn	1	1.3	-	10dBi	-	-	-	-	-	-	Waveguide Flange Mount	-	-

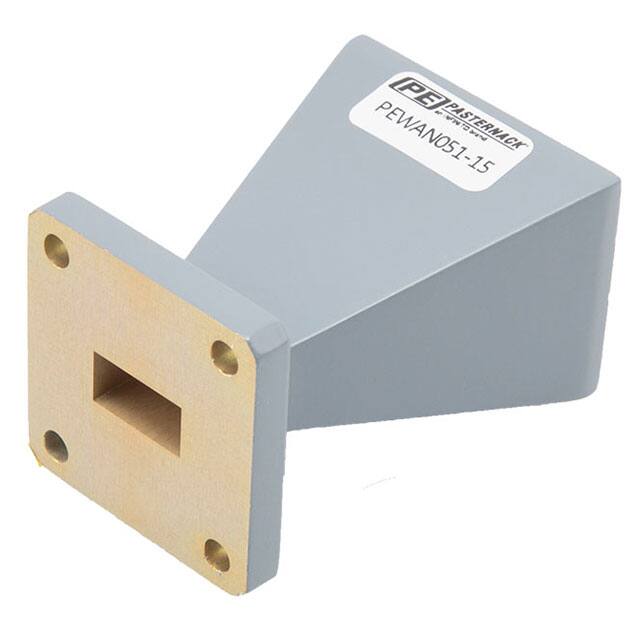

PEWAN051-15 WR51 GAIN HORN 15-22GHZ 15DBI Pasternack	4,598	-	RFQ	Datasheet	-	Bulk	Active	Waveguide	Ku-K Band (12GHz ~ 27GHz)	18.3GHz	15GHz ~ 22GHz	Horn	1	1.3	-	15dBi	-	-	-	-	-	-	Waveguide Flange Mount	-	-

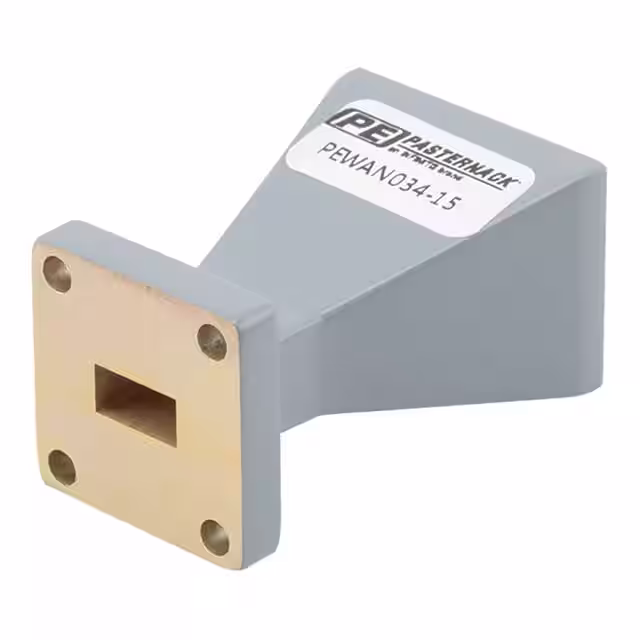

PEWAN034-15 WR34 GAIN HORN 22-33GHZ 15DBI Pasternack	1,281	-	RFQ	Datasheet	-	Bulk	Active	Waveguide	K-Ka Band (18GHz ~ 40GHz)	27.4GHz	22GHz ~ 33GHz	Horn	1	1.3	-	15dBi	-	-	-	-	-	-	Waveguide Flange Mount	-	-
PE9853B-10 WR-51 Waveguide Standard Gain Ho Pasternack	4,126	-	RFQ	Datasheet	-	Retail Package	Active	General ISM	SHF (f > 4GHz)	18.5GHz	15GHz ~ 22GHz	Horn	1	1.5	-	10dBi	-	-	-	-	-	-	Waveguide Mount	1.420" (36.07mm)	General Purpose
PEWAN1132 WR-34 Waveguide Probe Antenna Op Pasternack	2,387	-	RFQ	Datasheet	-	Retail Package	Active	Cellular	SHF (f > 4GHz)	27.5GHz	22GHz ~ 33GHz	Horn	1	2	-	6.5dBi	-	-	-	-	-	-	Waveguide Mount	3.400" (86.36mm)	5G
PEWAN1129 WR-19 Waveguide Probe Antenna Op Pasternack	4,173	-	RFQ	Datasheet	-	Retail Package	Active	General ISM	SHF (f > 4GHz)	50GHz	40GHz ~ 60GHz	Horn	1	2	-	6.5dBi	-	-	-	-	-	-	Waveguide Mount	2.000" (50.80mm)	General Purpose
PEWAN1127 WR-12 Waveguide Probe Antenna Op Pasternack	1,512	-	RFQ	Datasheet	-	Retail Package	Active	General ISM	SHF (f > 4GHz)	75GHz	60GHz ~ 90GHz	Horn	1	2	-	6.5dBi	-	-	-	-	-	-	Waveguide Mount	1.200" (30.48mm)	General Purpose
PEWAN1125 WR-8 Waveguide Probe Antenna, 90 Pasternack	4,775	-	RFQ	Datasheet	-	Retail Package	Active	General ISM	SHF (f > 4GHz)	115GHz	90GHz ~ 140GHz	Horn	1	2	-	6.5dBi	-	-	-	-	-	-	Waveguide Mount	1.000" (25.40mm)	General Purpose
