RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEANED10102 Folded Dipole antenna, 406 MHz |
2,205 | - |
|
Datasheet | - | Retail Package | Active | General ISM | UHF (300MHz ~ 1GHz) | 459MHz | 406MHz ~ 512MHz | Module | 1 | 1.8 | - | 7dBi | 100 W | - | N Type Female | - | - | - | - | 59.055" (150.00cm) | General Purpose |
|
|
PEWAN1052WR-10 Waveguide Conical Gain Hor |
1,071 | - |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 93.5GHz | 87GHz ~ 100GHz | Horn | 1 | 1.15 | - | 25dBi | - | - | - | - | - | - | Waveguide Mount | 2.910" (73.91mm) | General Purpose |
|
|
PEWAN1044WR-12 Waveguide Conical Gain Hor |
4,777 | - |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 72.5GHz | 68GHz ~ 77GHz | Horn | 1 | 1.15 | - | 25dBi | - | - | - | - | - | - | Waveguide Mount | 4.000" (101.60mm) | General Purpose |
|
|
PEWAN1008WR-19 Waveguide Standard Gain Ho |
2,184 | - |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 50GHz | 40GHz ~ 60GHz | Horn | 1 | 1.15 | - | 25dBi | - | - | - | - | - | - | Waveguide Mount | 4.700" (119.38mm) | General Purpose |
|
|
PEWAN1036WR-19 Waveguide Conical Gain Hor |
2,096 | - |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 54GHz | 50GHz ~ 58GHz | Horn | 1 | 1.15 | - | 25dBi | - | - | - | - | - | - | Waveguide Mount | 6.000" (152.40mm) | General Purpose |
|

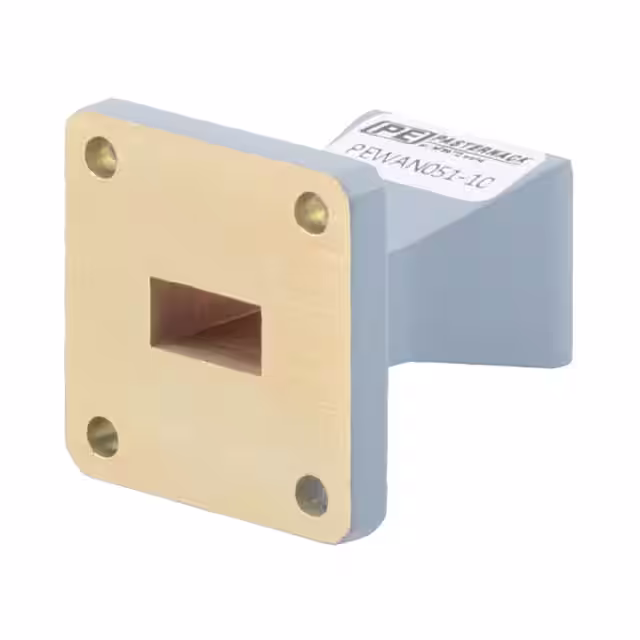

PEWAN051-10WR51 GAIN HORN 15-22GHZ 10DBI |
1,043 | - |
|
Datasheet | - | Bulk | Active | Waveguide | Ku-K Band (12GHz ~ 27GHz) | 18.3GHz | 15GHz ~ 22GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PEWAN062-20SMWR62 GAIN HRN 12.4-18GHZ 20DBI |
3,544 | - |
|
Datasheet | - | Tape & Box (TB) | Active | - | Wide Band | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.2 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Male | - | - | - | Waveguide Mount | 2.257" (57.33mm) | General Purpose |
|

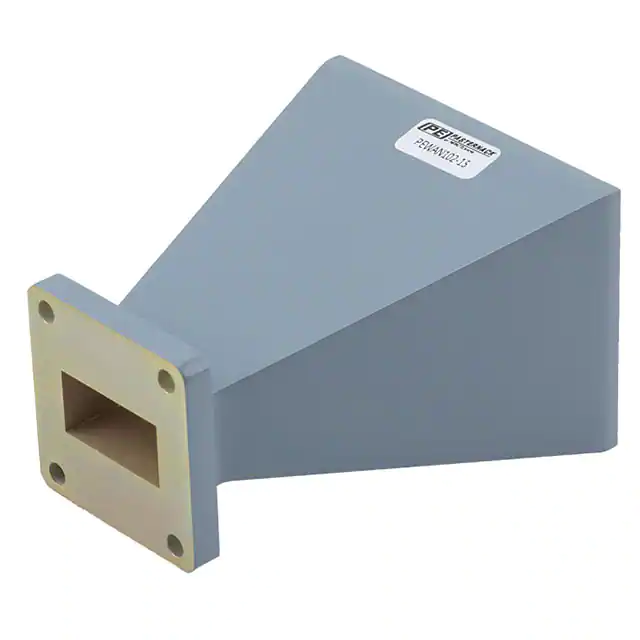

PEWAN102-15WR102 GAIN HORN 7-11GHZ 15DBI |
3,588 | - |
|
Datasheet | - | Bulk | Active | Waveguide | C-X Band (4GHz ~ 12GHz) | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PE9857B-20WR-102 Waveguide Standard Gain H |
1,928 | - |
|
Datasheet | - | Retail Package | Active | General ISM | SHF (f > 4GHz) | 9GHz | 7GHz ~ 11GHz | Horn | 1 | 1.5 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 9.140" (232.16mm) | General Purpose |
|
|
PEWAN028-10KMWR28 GAIN HRN 26.5-40GHZ 15DBI |
3,168 | - |
|
Datasheet | - | Bulk | Active | - | SHF (f > 4GHz) | 33.25GHz | 26.5GHz ~ 40GHz | Horn | 1 | 1.29 | - | 10dBi | - | - | 2.92mm Male | - | - | - | Waveguide Flange Mount | 1.593" (40.46mm) | - |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
