RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4313-213-06158RF ANT 5.3GHZ CHIP SOLDER SMD |
4,172 | - |
|
Datasheet | - | Bulk | Obsolete | WiFi | SHF (f > 4GHz) | 5.3GHz | 5.16GHz ~ 5.37GHz | Chip | 1 | 2 | - | 5dBi | - | - | Solder | - | - | - | Surface Mount | 0.094" (2.40mm) | WLAN |
|

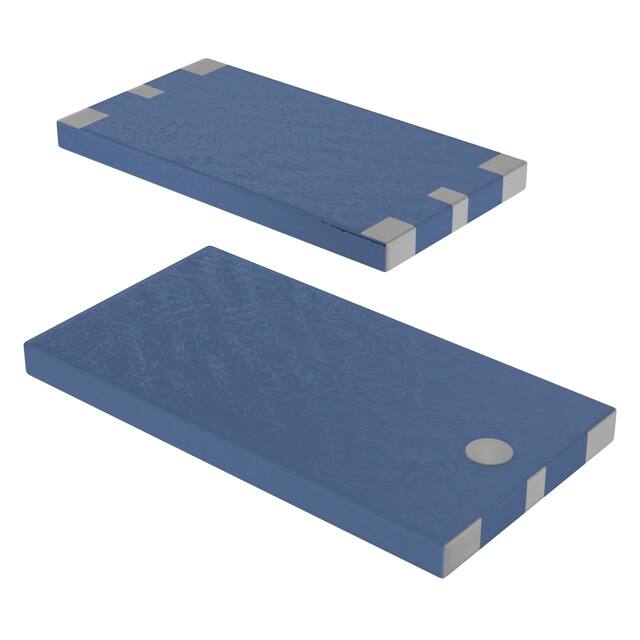

CAN4313114001581BANTENNA GPS LP-MODE CERAMIC SMD |
3,960 | - |
|
Datasheet | - | Bulk | Obsolete | - | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.529GHz ~ 1.629GHz | Chip | 1 | 2 | - | 1.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | - |
|

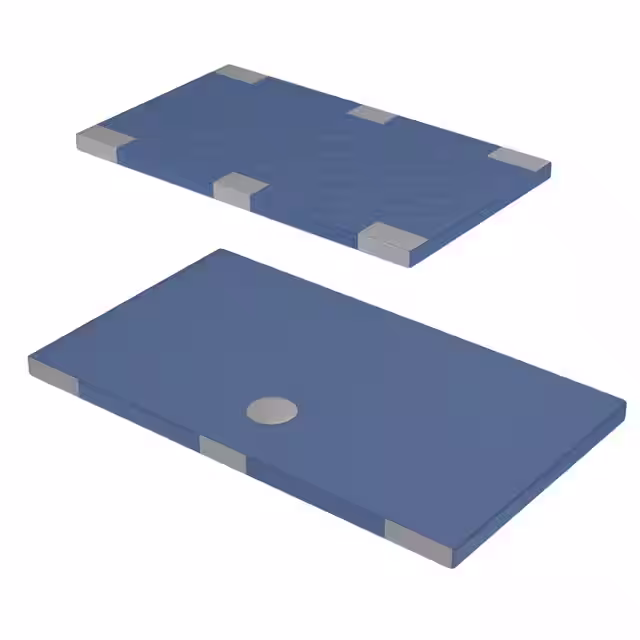

CAN4313118009181BANTENNA EGSM/DCS DUAL BAND SMD |
2,284 | - |
|
Datasheet | - | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 920MHz, 1.8GHz | 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | Chip | 2 | 2.7 | - | 1dBi | - | - | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | - |
|

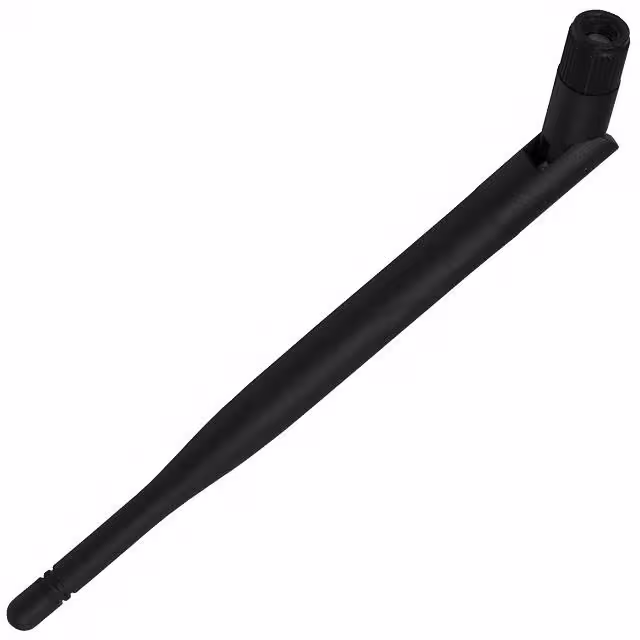

W1028RF ANT 5.5GHZ WHP TILT RP-SMA 5" |
2,903 | - |
|
Datasheet | - | Bulk | Obsolete | 802.15.4, WiFi | SHF (f > 4GHz) | 5.5GHz | 5.15GHz ~ 5.85GHz | Whip, Tilt | 1 | 1.9 | - | 2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 5.913" (150.20mm) | WLAN, Zigbee™ |
|
|
W3030RF ANT 2.1GHZ CHIP SOLDER SMD |
3,442 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.1GHz | 2.11GHz ~ 2.17GHz | Chip | 1 | - | -10dB | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | - |
|
|
W3032RF ANT 900MHZ CHIP SOLDER SMD |
3,517 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | UHF (300MHz ~ 1GHz) | 900MHz | 925MHz ~ 960MHz | Chip | 1 | - | -5dB | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GSM |
|
|
W3017RF ANT 2.3GHZ CHIP SOLDER SMD |
2,258 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.3GHz | 2.32GHz ~ 2.345GHz | Chip | 1 | - | -12dB | 2.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | - |
|
|
W1049B070RF ANT 2.4GHZ WHIP/TILT CONN MT |
3,741 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | - | - | 2dBi | - | Cable - 178mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 3.248" (82.50mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
W3029RF ANT 2GHZ CHIP SOLDER SMD |
2,930 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (1GHz ~ 2GHz) | 2GHz | 1.93GHz ~ 1.99GHz | Chip | 1 | - | -10dB | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | - |
|
|
W3028RF ANT 1.8GHZ CHIP SOLDER SMD |
2,428 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (1GHz ~ 2GHz) | 1.8GHz | 1.805GHz ~ 1.88GHz | Chip | 1 | - | -9dB | 2.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | - |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
