RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT2525B00FT1575SRF ANT 1.575GHZ CER PATCH PIN |
1,185 | - |
|
Datasheet | 2525 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.57GHz ~ 1.59GHz | Ceramic Patch | 1 | 2 | -40dB | 5.5dBic | - | - | Pin | - | - | - | Surface Mount | 0.177" (4.50mm) | GPS |
|
ANTX300P002B24553RF ANT 2.4/5.5GHZ PCB TRACE IPEX |
4,222 | - |
|
Datasheet | - | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2.5 | - | 1.9dBi | 1 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.022" (0.55mm) | Bluetooth, WLAN |
|

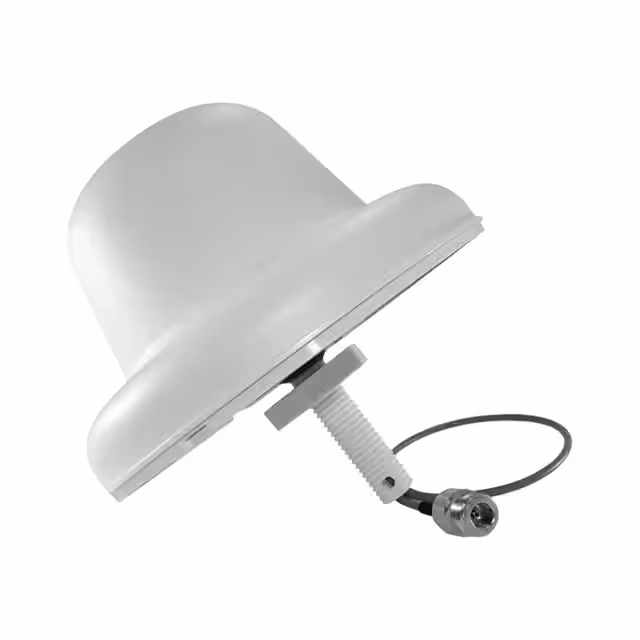

DASLTE500NFRF ANT 829MHZ/2.2GHZ DOME N FEM |
4,892 | - |
|
Datasheet | PIMinator™ | Bulk | Obsolete | - | Wide Band | 829MHz, 2.2GHz, 5.4GHz | 698MHz ~ 960MHz, 1.7GHz ~ 2.7GHz, 4.9GHz ~ 5.9GHz | Dome | 3 | 1.8 | - | 8dBi | 50 W | - | N Type Female | - | - | - | Panel Mount | 4.606" (117.00mm) | - |
|
DASLTEDINRF ANT 829MHZ/2.2GHZ DOME CONN |
1,911 | - |
|
Datasheet | PIMinator™ | Bulk | Obsolete | - | Wide Band | 829MHz, 2.2GHz, 5.4GHz | 698MHz ~ 960MHz, 1.7GHz ~ 2.7GHz, 4.9GHz ~ 5.9GHz | Dome | 3 | 1.8 | - | 8dBi | 50 W | - | Connector | - | - | - | Panel Mount | 48.031" (122.00cm) | - |
|
|
ICEBLADEWTRF ANT 2.4/5.4GHZ BLADE TNC MALE |
3,675 | - |
|
Datasheet | - | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Blade, Tilt | 2 | 2 | - | 4.2dB | 2 W | - | TNC Male | - | - | - | Connector Mount | 9.114" (231.50mm) | Wi-Fi |
|
|
NMOMMR200NF12NMOHF MMR LMR200 N-FEM 12F NPB |
1,301 | - |
|
Datasheet | - | Bulk | Active | - | UHF (3GHz ~ 4GHz) | 3.0135GHz | 27MHz ~ 6GHz | Module | 1 | - | - | 5dBi | - | Cable - 3.6576m | N Type Female | - | - | - | Magnetic | - | General Purpose |
|
|
NMOMMR200NF3NMOHF MMR LMR200 N-FEM 3FT NPB |
2,480 | - |
|
Datasheet | - | Bulk | Active | - | UHF (3GHz ~ 4GHz) | 3.0135GHz | 27MHz ~ 6GHz | Module | 1 | - | - | 5dBi | - | Cable - 914.4mm | N Type Female | - | - | - | Magnetic | - | General Purpose |
|
|
RO3ISMNFRADOMEOMNI 430-440 860-930 N FEM |
3,497 | - |
|
Datasheet | - | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz) | 435MHz, 895MHz | 430MHz ~ 440MHz, 860MHz ~ 930MHz | Whip, Straight | 2 | 2 | - | 2dBi, 2.5dBi | 20 W | - | N Type Female | - | - | - | Bracket Mount | 21.300" (541.02mm) | 4G, LTE |
|
|
SLPT24005900KUDKIT SLPT2400/5900NMOHF |
1,048 | - |
|
Datasheet | Shadow | Bulk | Active | Cellular, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.45GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Dome | 2 | 2.1, 2.2 | - | 4.78dBi, 5.14dBi | 10 W | - | N Type Female | - | - | - | Connector Mount | 2.624" (66.66mm) | 3G, 4G, DSRC, LTE, ISM, Wi-Fi |
|
|
SLPT6982170KUDKIT SLPT698/2170NMOHF AND NMOKHF |
1,747 | - |
|
Datasheet | Shadow | Bulk | Active | Cellular, General ISM, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.205GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Dome | 2 | 2.1, 2.2, 3.2 | - | 3.51dBi, 4.81dBi | 10 W | - | N Type Female | - | - | - | Connector Mount | 3.099" (78.71mm) | 3G, 4G, DSRC, LTE, ISM, Wi-Fi |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
