RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W3315B0065MHF1DUAL BAND WIFI FPC ANTENNA |
1,956 | - |
|
Datasheet | Internal Antenna | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz | Flat Patch | 2 | 2 | - | 2dBi, 5dBi | 2 W | Cable - 65mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | Bluetooth, DSRC, Wi-Fi, Zigbee™ |
|
|
ANT1212B00FT1575SRF ANT 1.58GHZ CER PATCH PIN ADH |
1,829 | - |
|
Datasheet | 1212 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.58GHz | - | Ceramic Patch | 1 | 2 | - | -1.5dBi | 1 W | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GPS |
|
|
ANT1010B00FT1575SRF ANT 1.58GHZ CER PATCH PIN ADH |
2,271 | - |
|
Datasheet | 1010 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.58GHz | - | Ceramic Patch | 1 | 2 | - | -2.5dBi | 1 W | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GPS |
|
|
ANTX100P001B50003RF ANT 5.3685GHZ PCB TRACE CAB |
4,869 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | SHF (f > 4GHz) | 5.3685GHz | 5.15GHz ~ 5.875GHz | PCB Trace | 1 | 2.5 | - | 2.5dBi | 1 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.022" (0.55mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
ANTX100P011B50003RF ANT 5.3685GHZ PCB TRACE CAB |
4,534 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | SHF (f > 4GHz) | 5.3685GHz | 5.15GHz ~ 5.875GHz | PCB Trace | 1 | 2.5 | - | 3.2dBi | 1 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.022" (0.55mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

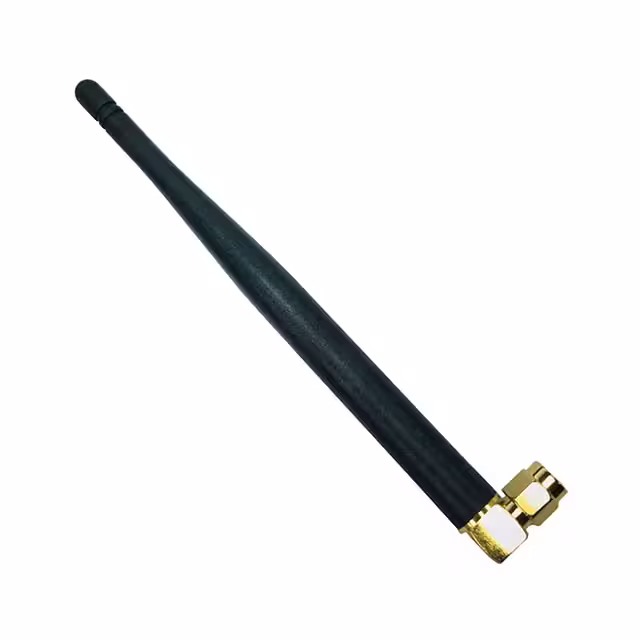

W1079ANT EXT 779-787MHZ RA SMA MALE |
4,720 | - |
|
Datasheet | Stick Antenna | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 783MHz | 779MHz ~ 787MHz | Whip, Right Angle | 1 | 2 | - | 0dBi | 5 W | - | SMA Male | IP42 | - | - | Connector Mount | 5.040" (128.00mm) | ISM |
|
|
DAS500MDMIMOANTENNA |
1,789 | - |
|
Datasheet | PIMinator™ | Bulk | Obsolete | Cellular, WiFi | Wide Band | 829MHz, 1.94GHz, 2.5GHz, 5.4GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 4.9GHz ~ 5.9GHz | Dome | 4 | 1.7 | - | 2dBi, 5dBi | 50 W | - | Connector | - | - | - | Panel Mount | 4.720" (119.88mm) | 2G, 3G, 4G, LTE, Wi-Fi, WiMax™ |
|
|
DASUTCCR500MDANTENNA |
4,932 | - |
|
Datasheet | Clarity™ | Bulk | Obsolete | Cellular, WiFi | Wide Band | 784MHz, 1.947GHz, 2.5GHz | 608MHz ~ 960MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz | Flat Patch | 3 | 2 | - | 5dBi, 7dBi | 40 W | Cable - 500mm | Mini-DIN Female | - | - | - | Panel Mount | 0.331" (8.40mm) | 2G, 3G, 4G, LTE, Wi-Fi |
|
|
DASUTWC500MDANTENNA |
2,296 | - |
|
Datasheet | Clarity™ | Bulk | Obsolete | WiFi | Wide Band | 784MHz, 1.947GHz, 2.5GHz | 608MHz ~ 960MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz | Flat Patch | 3 | 2 | - | 4dBi, 6dBi | 40 W | Cable - 500mm | Mini-DIN Female | - | - | - | Panel Mount | 0.331" (8.40mm) | Wi-Fi |
|
|
DASUTWCR500MDANTENNA |
3,682 | - |
|
Datasheet | Clarity™ | Bulk | Obsolete | WiFi | Wide Band | 784MHz, 1.947GHz, 2.5GHz | 608MHz ~ 960MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz | Flat Patch | 3 | 2 | - | 5dBi, 7dBi | 40 W | Cable - 500mm | Mini-DIN Female | - | - | - | Panel Mount | 0.331" (8.40mm) | Wi-Fi |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
