RF Antennas

Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	RF Family/Standard	Frequency Group	Frequency (Center/Band)	Frequency Range	Antenna Type	Number of Bands	VSWR	Return Loss	Gain	Power - Max	Features	Termination	Ingress Protection	Grade	Qualification	Mounting Type	Height (Max)	Applications
W3538B0035 ANTENNA PCB Pulse Electronics	2,070	-	RFQ	Datasheet	Internal PCB Antenna	Box	Active	Cellular	Wide Band	892MHz, 1.94GHz, 2.045GHz	824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz	PCB Trace	3	-	-4dB, -7dB	-1.2dBi, 1dBi, 1.1dBi	-	Cable - 35mm	U.FL	-	-	-	Adhesive	0.028" (0.70mm)	GSM, WCDMA
TWA422CC01 ANT WIFI 2.4-2.5GHZ/5.15-5.85GHZ Pulse Electronics	976	-	RFQ	Datasheet	-	Bag	Active	WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.45GHz, 5.5GHz	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz	PCB Trace	2	-	-9dB, -7dB	1.75dBi, 5.72dBi	1 W	Cable - 95mm	U.FL	-	-	-	Adhesive	0.096" (2.44mm)	Wi-Fi
ANTX100ETHAB24553 ANT 2.4GHZ 5GHZ WHIP SWIVEL Pulse Electronics	1,146	-	RFQ	Datasheet	-	Bag	Active	General ISM	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.45GHz, 5.5GHz	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz	Whip, Tilt	2	2, 2.5	-	2dBi, 3dBi	-	Cable - 100mm	I-PEX	-	-	-	Connector Mount	-	General Purpose

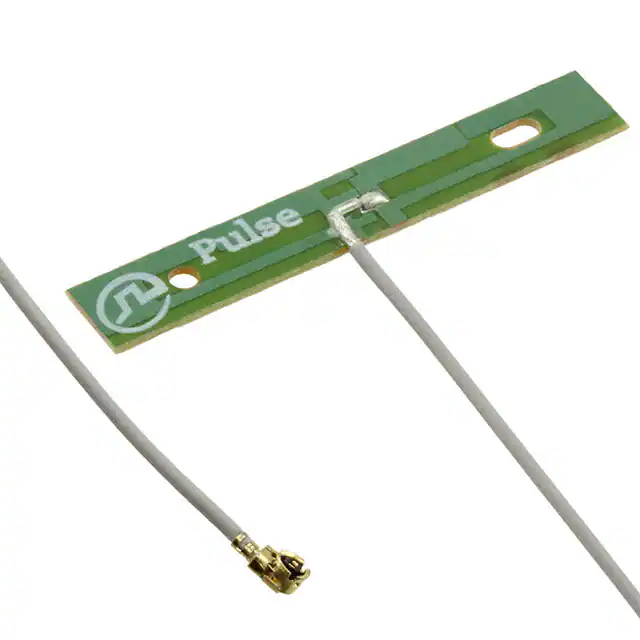

W3593B0100 RF ANT 5GHZ PCB TRACE IPEX ADH Pulse Electronics	1,275	-	RFQ	Datasheet	-	Bulk	Active	-	Wide Band	5GHz	4.9GHz ~ 5.85GHz	PCB Trace	1	-	-	2dBi	-	-	U.FL (UMCC), I-PEX MHF1	-	-	-	Adhesive	0.031" (0.80mm)	-
W6109B0100 ANT MIMO WIFI 6E FPC 100MM 2X2 Pulse Electronics	951	-	RFQ	Datasheet	-	Bag	Active	WiFi	Wide Band	2.44GHz, 6.137GHz	2.4GHz ~ 2.48GHz, 5.15GHz ~ 7.125GHz	Flat Patch	2	-	7dB	3.2dBi, 6.9dBi	1 W	Cable - 100mm	U.FL	-	-	-	Adhesive	-	Wi-Fi
W3079 RF ANT 2.4/5.5GHZ INTEG CHIP SLD Pulse Electronics	2,800	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	802.15.4, Bluetooth, WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.4GHz, 5.5GHz	2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz	Integrated, Chip	2	1.9	-	2.4dBi	-	-	Solder	-	-	-	Surface Mount	0.043" (1.10mm)	Bluetooth, WLAN, Zigbee™
W3312BB0100 ANTENNA 860-930MHZ Pulse Electronics	567	-	RFQ	Datasheet	Internal Antenna	Box	Active	General ISM	UHF (300MHz ~ 1GHz)	895.5MHz	863MHz ~ 928MHz	PCB Trace	1	-	-8dB	0.8dBi	2 W	Cable - 100mm	U.FL	-	-	-	Adhesive	0.004" (0.10mm)	ISM
SWA425A ANT WIFI 6E IPEX MHF 4L 95MM Pulse Electronics	244	-	RFQ	Datasheet	-	Bag	Active	WiFi	Wide Band	2.45GHz, 6.137GHz	2.4GHz ~ 2.5GHz, 5.15GHz ~ 7.125GHz	Flat Patch	2	-	-5dB	3dBi, 4.5dBi	-	Cable - 95mm	I-PEX MHF4L	-	-	-	Surface Mount	0.144" (3.65mm)	Wi-Fi
W5029RPGT 2.4-2.5 / 5.15-5.925 GHZ STICK A Pulse Electronics	492	-	RFQ	Datasheet	External Antenna	Bulk	Active	802.15.4, General ISM, WiFi	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)	2.45GHz, 5.538GHz	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz	Whip, Straight	2	-	-10dB, -4dB	1.8dBi, 2.55dBi	1 W	-	RP-SMA Male	IP65	-	-	Connector Mount	2.992" (76.00mm)	DSRC, WLAN, Zigbee™
W3326 ANTENNA 791-2170MHZ Pulse Electronics	1,989	-	RFQ	Datasheet	Domino	Tape & Reel (TR)	Active	Cellular	UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)	875.5MHz, 1.94GHz	791MHz ~ 960MHz, 1.71GHz ~ 2.17GHz	Chip	2	-	5dB	0.6dBi, 2.3dBi	-	-	Solder	-	-	-	Surface Mount	0.059" (1.50mm)	LTE
