RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PD617-4200S143ANT DAS DIR 4G LTE 5G CBRS SISO |
2,013 | - |
|
Datasheet | Directional DAS | Box | Active | Cellular | Wide Band | 720.5MHz, 892MHz, 1.45GHz, 2.755GHz, 4GHz | 617MHz ~ 824MHz, 824MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.71GHz ~ 3.8GHz, 3.8GHz ~ 4.2GHz | Module | 5 | 1.7, 1.8, 2 | - | 6dBi, 6dBi, 8dBi, 9dBi, 9dBi | 50 W | Cable - 300mm | 4.3/10 - Female | IP50 | - | - | Wall Mount | 2.402" (61.00mm) | 4G, 5G |
|
|
RO450NFKITANTENNA UHG 410-520 MHZ N-FEMALE |
3,390 | - |
|
Datasheet | - | Box | Active | Cellular | UHF (300MHz ~ 1GHz) | 465MHz | 410MHz ~ 520MHz | Dome | 1 | 1.5 | - | 2.3dBi | 60 W | - | N Type Female | IP67 | - | - | Bracket Mount | 8.638" (219.40mm) | LTE |
|
|
OD617-6000M443ANT DAS OMNI 5G CBRS 4 PORT MIMO |
4,461 | - |
|
Datasheet | Omni Antenna | Box | Active | Cellular | Wide Band | 657.5MHz, 829MHz, 2.025GHz, 3.65GHz, 5.4GHz | 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.35GHz ~ 2.7GHz, 3.3GHz ~ 4GHz, 4.8GHz ~ 6GHz | Dome | 5 | 1.8 | - | 3dBi, 3dBi, 4.5dBi, 4.5dBi, 4.5dBi | 50 W | Cable - 300mm | 4.3/10 - Female (4) | IP50 | - | - | Through Hole | 0.945" (24.00mm) | 4G, 5G |
|
W3008GRF ANT 2.4GHZ CHIP SOLDER SMD |
2,675 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Bluetooth | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Chip | 1 | 1.6 | - | 1.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | Bluetooth |
|

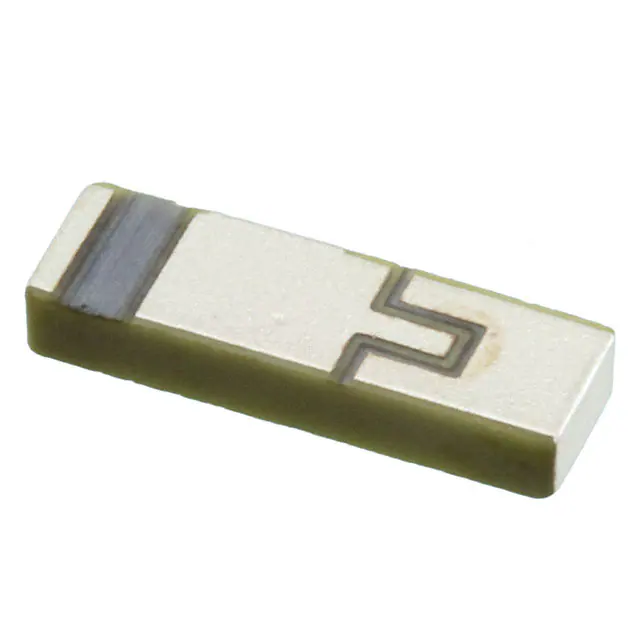

W3056RF ANT 1.575GHZ/2.4GHZ CHIP SLD |
1,930 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Bluetooth, Navigation, WiFi | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.575GHz, 2.4GHz | 1.575GHz, 2.4GHz ~ 2.5GHz | Chip | 2 | - | -20dB | - | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | Bluetooth, GPS, WLAN |
|

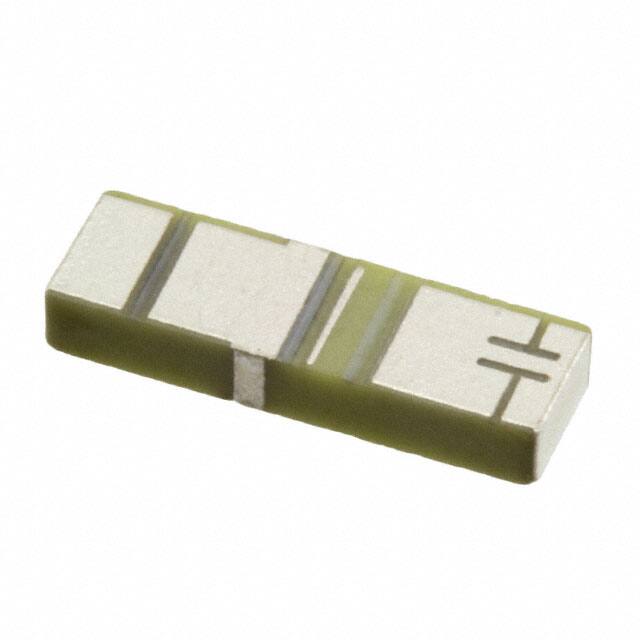

W3095RF ANT 1.575GHZ/1.602GHZ CHIP |
2,098 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | Wide Band | 1.575GHz, 1.602GHz, 2.4GHz, 5.4GHz | 1.575GHz ~ 1.61GHz, 2.4GHz ~ 2.49GHz, 4.9GHz ~ 5.85GHz | Chip | 3 | 1.2 | - | 2.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | GLONASS, GPS |
|

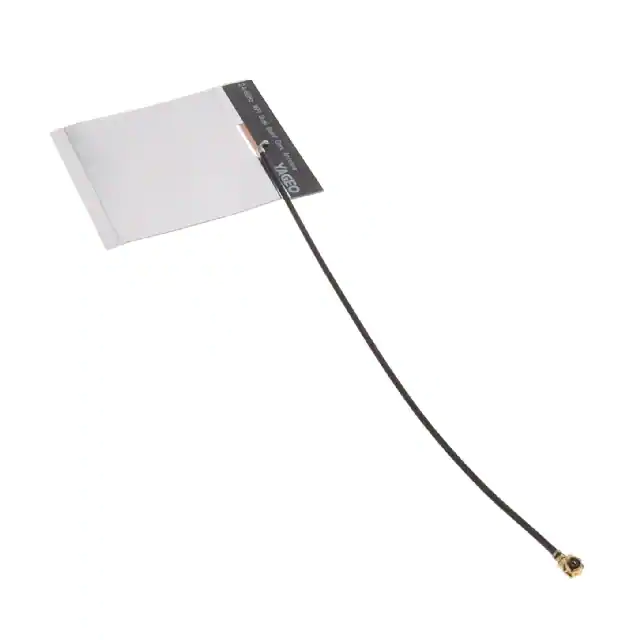

ANTX100P002B24553RF ANT 2.45GHZ/5.3685GHZ PCB |
3,427 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.3685GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.587GHz | PCB Trace | 2 | 2.5 | - | 0.7dBi, 1.9dBi | 1 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.022" (0.55mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
W3224ANT CERAMIC PATCH 18X18X4MM GPS/ |
129 | - |
|
Datasheet | Ceramic Patch | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz | Ceramic Patch | 2 | - | -10dB | 2dBi, 2.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
|

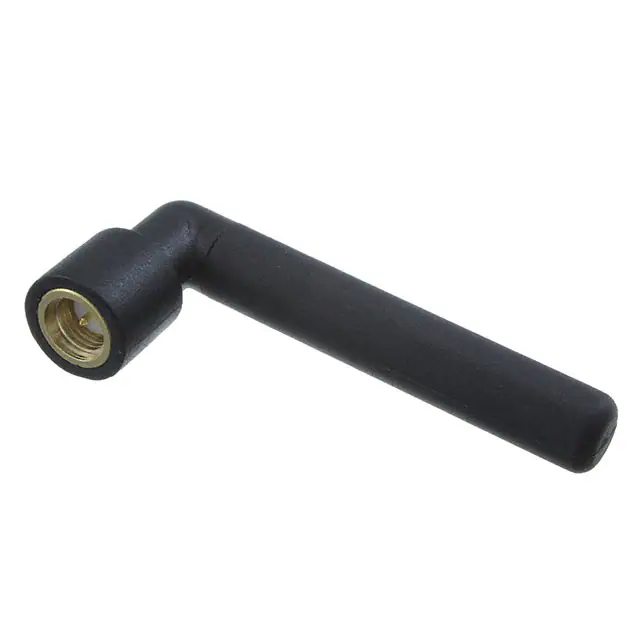

W1900-M3G PENTABAND 824-2170MHZ RIGHT A |
300 | - |
|
Datasheet | Stubby Antenna | Bulk | Obsolete | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Right Angle | 5 | - | -4dB, -6dB | 1dBi, 2dBi | 5 W | - | SMA Male | IP65 | - | - | Connector Mount | 1.988" (50.50mm) | GSM, WCDMA |
|

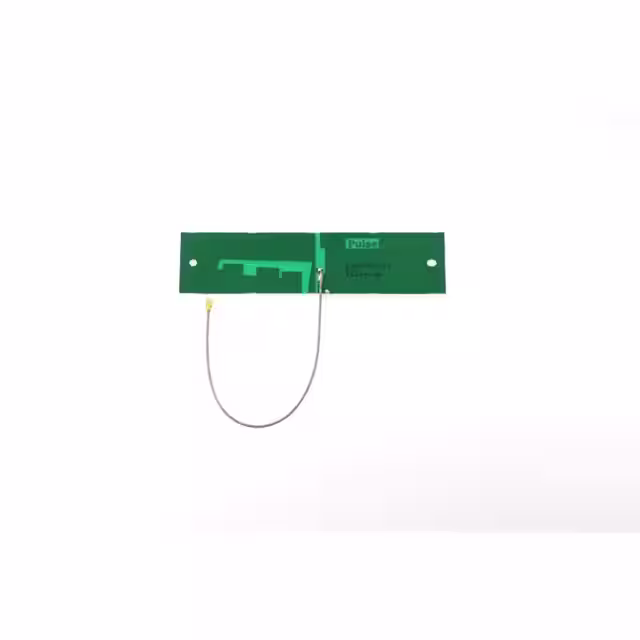

W3554E0193ANTENNA ASSEMBLY 6GHZ 193MM MMCX |
128 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi | Wide Band | 829MHz, 1.5GHz, 2.2GHz, 3.55GHz, 5.45GHz | 698MHz ~ 960MHz, 1.4GHz ~ 1.6GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | PCB Trace | 5 | - | -4dB, -3dB, -6dB, -5dB, -4dB | 1.9dBi, 2.5dBi, 3.2dBi, 3.3dBi, 3.5dBi | 5 W | Cable - 193mm | MMCX | - | - | - | Adhesive | 0.008" (0.20mm) | 2G, 3G, 4G, 5G, Bluetooth, GNSS, ISM, Wi-Fi, Zigbee™ |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
