RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT1606JB12B1575ARF ANT 1.575GHZ CER PATCH IPEX |
2,270 | - |
|
Datasheet | 1606 | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.566GHz ~ 1.584GHz | Ceramic Patch | 1 | 2 | - | -2.52dBic | - | LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.205" (5.20mm) | GPS |
|
W540WHIP, 5/8 OR 1/4 WAVE, 27 - 174 |
1,930 | - |
|
Datasheet | - | Bag | Active | - | VHF (f < 300MHz) | 100.5MHz | 27MHz ~ 174MHz | Whip, Straight | 1 | - | - | - | - | - | - | - | - | - | - | - | - |
|
W5095RF ANT 829MHZ/2.05GHZ BLADE TNC |
1,642 | - |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 829MHz, 2.05GHz | 698MHz ~ 960MHz, 1.4GHz ~ 2.69GHz | Blade | 2 | 2.5 | - | 2.16dBi | 3 W | - | TNC Male | IP65 | - | - | Connector Mount | - | LTE |
|
|
W490WHIP, 5/8 WAVE, 27 - 174 MHZ, .1 |
1,583 | - |
|
Datasheet | - | Bag | Active | - | VHF (f < 300MHz) | 100.5MHz | 27MHz ~ 174MHz | Whip, Straight | 1 | - | - | - | - | - | - | - | - | - | - | - | - |
|

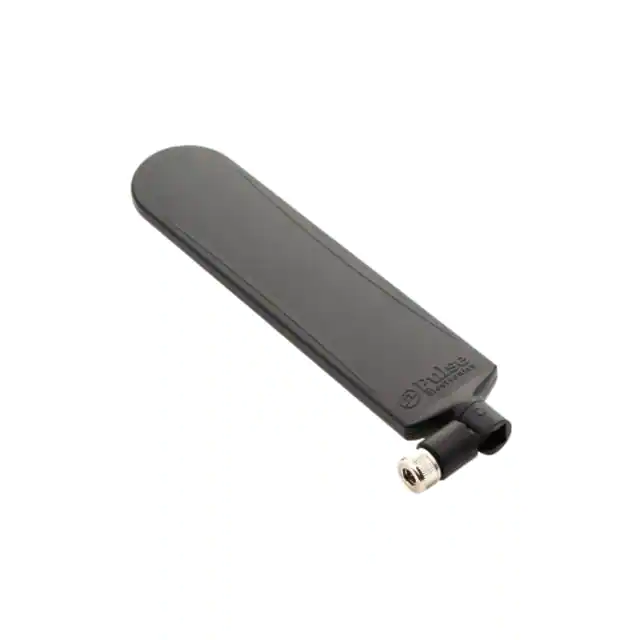

SPDA24617/3900ANT EXT 617-3900 SMA IP65 |
4,959 | - |
|
Datasheet | Omni Antenna | Bag | Active | Cellular | Wide Band | 788.5MHz, 2.05GHz, 3.55GHz | 617MHz ~ 960MHz, 1.4GHz ~ 2.7GHz, 3.2GHz ~ 3.9GHz | Blade | 3 | 3 | - | 1dBi, 2.5dBi, 3dBi | 5 W | - | SMA Male | IP65 | - | - | Connector Mount | 8.789" (223.24mm) | 4G, 5G, LTE |
|

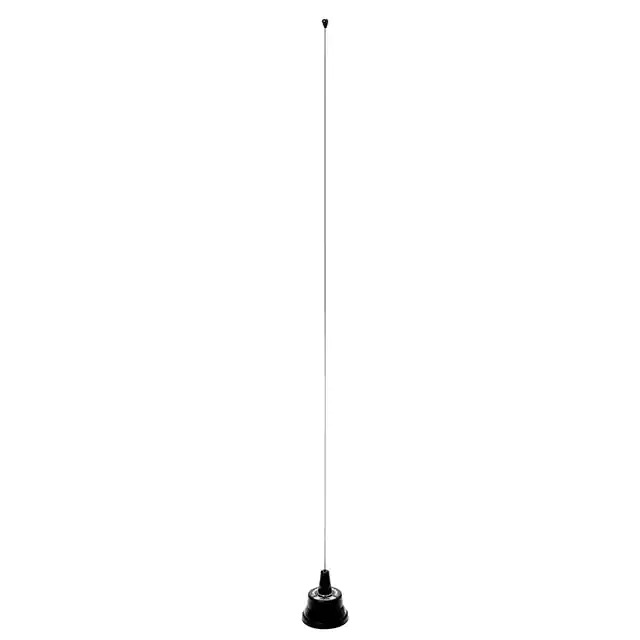

NMOQCBASE / WHIP, UNITY, 136 - 512 MH |
2,307 | - |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 324MHz | 136MHz ~ 512MHz | Whip, Straight | 1 | 1 | - | 2dBi | 200 W | - | NMO | - | - | - | Magnetic | 23.000" (584.20mm) | - |
|

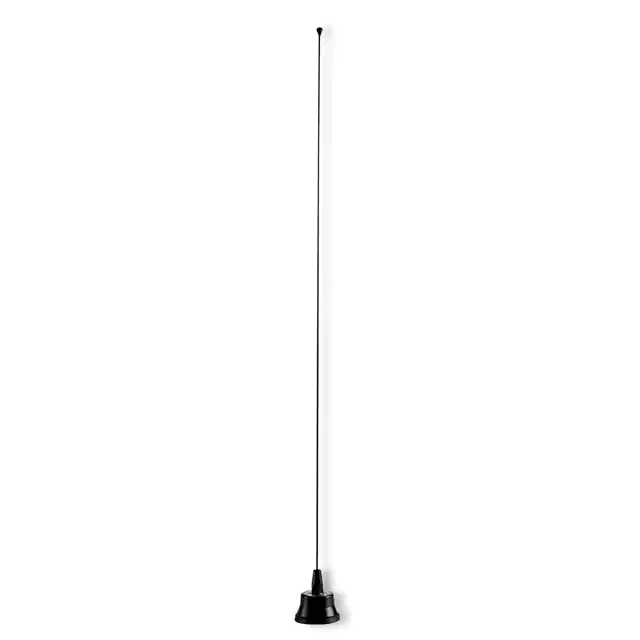

NMOQBBASE / WHIP, UNITY, 136 - 512 MH |
2,449 | - |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 324MHz | 136MHz ~ 512MHz | Whip, Straight | 1 | 1 | - | 2dBi | 200 W | - | NMO | - | - | - | Magnetic | 23.000" (584.20mm) | - |
|

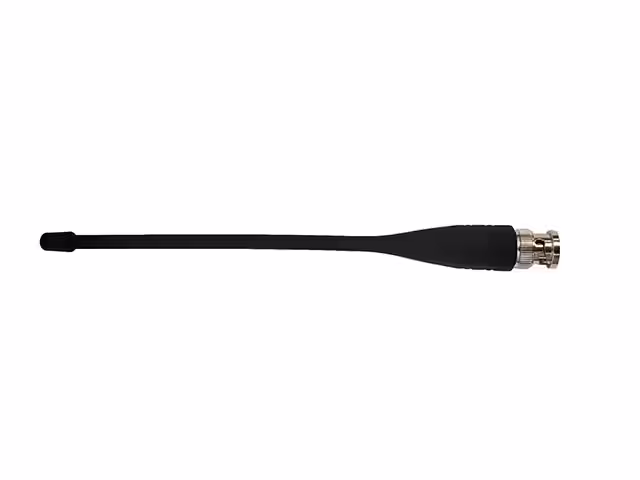

SPWH15FTWHIP - STANDARD - 1/4 WAVE, FIEL |
2,058 | - |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 456MHz | 400MHz ~ 512MHz | Whip, Straight | 1 | - | - | - | - | - | BNC | - | - | - | Connector Mount | 6.000" (152.40mm) | - |
|
SLPT698/2170NMOHFRF ANT 829MHZ/1.9GHZ WHIP STR |
2,863 | - |
|
Datasheet | Shadow | Bulk | Active | Cellular, WiFi | Wide Band | 829MHz, 1.9GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz | Dome | 3 | 3, 2 | - | 4.5dBi, 5.6dBi, 4dBi | 10 W | - | NMO | IP67 | - | - | Base Mount | 3.000" (76.20mm) | LTE, WLAN |
|

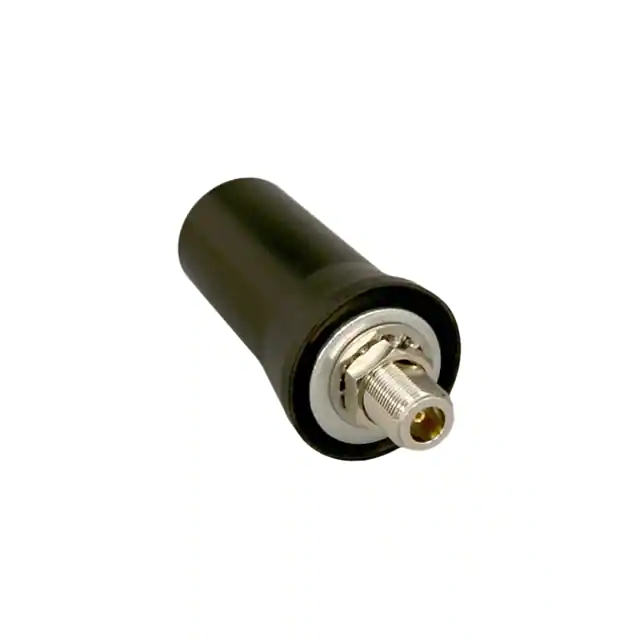

LPT698/2700DMNRF ANT 829MHZ/1.94GHZ DOME N |
1,436 | - |
|
Datasheet | - | Bag | Active | - | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Dome | 3 | 2.5, 2 | - | 3.1dBi, 4.4dBi, 5dBi | 10 W | - | N Type | IP67 | - | - | Connector Mount | - | General Purpose |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
