RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

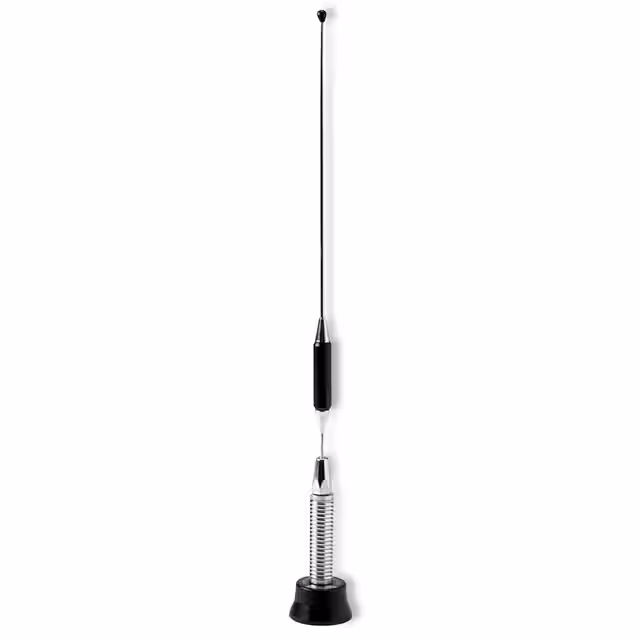

NMO900STAINLESS SPRING BASE / WHIP, EN |
4,621 | - |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 925MHz | 890MHz ~ 960MHz | Whip, Straight | 1 | - | - | 5.6dBi | 200 W | - | NMO | - | - | - | Magnetic | 12.750" (323.85mm) | - |
|

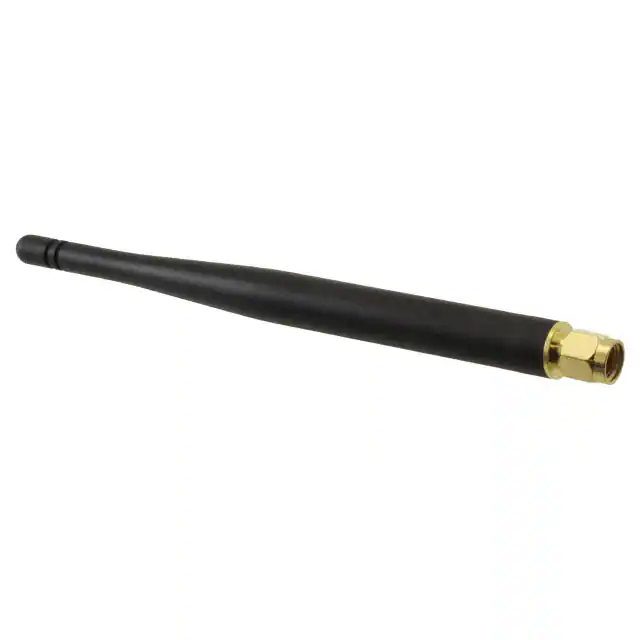

W5010RF ANT 2.4GHZ WHIP STR RP-SMA ML |
4,626 | - |
|
Datasheet | - | Bulk | Active | 802.15.4 | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | - | -10dB | 1.5dBi | - | - | RP-SMA Male | IP65 | - | - | Connector Mount | 5.122" (130.09mm) | ZigBee™ |
|
GNSSMMSMAANT ACTIVE GNSS MAG MNT 3M SMA |
3,978 | - |
|
Datasheet | GNSS Active Antenna | Bag | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.5755GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.577GHz, 1.598GHz ~ 1.606GHz | Module | 3 | 2, 2.5 | - | 1dBic, 2.4dBic, 3.5dBic | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Magnetic | 0.571" (14.50mm) | Beidou, GLONASS, GNSS, GPS |
|

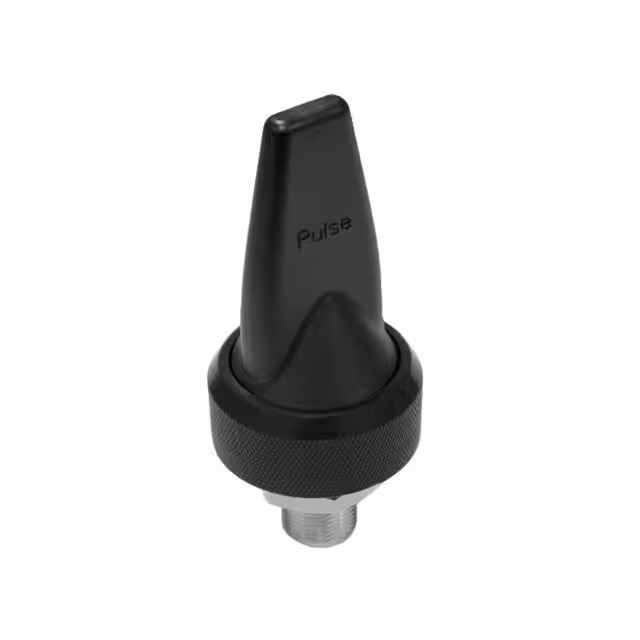

SLPT2400/5900DMNRF ANT 2.4/5.4GHZ WHIP STR N FEM |
2,866 | - |
|
Datasheet | Shadow | Bulk | Active | Cellular, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Dome | 2 | 2 | - | 5.5dBi | 10 W | - | N Type Female | IP67 | - | - | Connector Mount | 2.500" (63.50mm) | LTE, WLAN |
|
W3554K0153ANTENNA ASSEMBLY 6GHZ 153MM SMA |
2,247 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi | Wide Band | 829MHz, 1.5GHz, 2.2GHz, 3.55GHz, 5.45GHz | 698MHz ~ 960MHz, 1.4GHz ~ 1.6GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | PCB Trace | 5 | - | -4dB, -3dB, -6dB, -5dB, -4dB | 1.9dBi, 2.5dBi, 3.2dBi, 3.3dBi, 3.5dBi | 5 W | Cable - 153mm | SMA Male | - | - | - | Adhesive | 0.008" (0.20mm) | 2G, 3G, 4G, 5G, Bluetooth, GNSS, ISM, Wi-Fi, Zigbee™ |
|
|
W3554B0170ANTENNA ASSEMBLY 6GHZ 170MM U.FL |
2,853 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi | Wide Band | 829MHz, 1.5GHz, 2.2GHz, 3.55GHz, 5.45GHz | 698MHz ~ 960MHz, 1.4GHz ~ 1.6GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | PCB Trace | 5 | - | -4dB, -3dB, -6dB, -5dB, -4dB | 1.9dBi, 2.5dBi, 3.2dBi, 3.3dBi, 3.5dBi | 5 W | Cable - 170mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | 2G, 3G, 4G, 5G, Bluetooth, GNSS, ISM, Wi-Fi, Zigbee™ |
|
KG3E825UDON GLASS, ENCLOSED, 3 DB, 806 - |
2,414 | - |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 851MHz | 806MHz ~ 896MHz | Whip, Straight | 1 | - | - | 5.14dBi | 60 W | - | - | - | - | - | Magnetic | 13.000" (330.20mm) | - |
|
|
W3715RF ANT 2.45/5.425GHZ PCB TRACE |
2,628 | - |
|
Datasheet | Embedded Antenna | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.425GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | PCB Trace | 2 | 2 | - | 3.7dBi, 5.5dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.630" (16.00mm) | General Purpose |
|
ANT2112A010B0918ARF ANT 900MHZ/1.8GHZ CHIP SLD |
1,068 | - |
|
Datasheet | 2112 | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 900MHz, 1.8GHz | 885MHz ~ 915MHz, 1.715GHz ~ 1.885GHz | Chip | 2 | - | -6.543dB, -9.217dB | 0.5dBi, 1dBi | 4 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | - |
|
|
ANT1212B00BT2400SRF ANT 2.45GHZ CER PATCH SLDR |
3,885 | - |
|
Datasheet | 1212 | Tray | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | 3 | - | 4dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | General Purpose |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
