RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

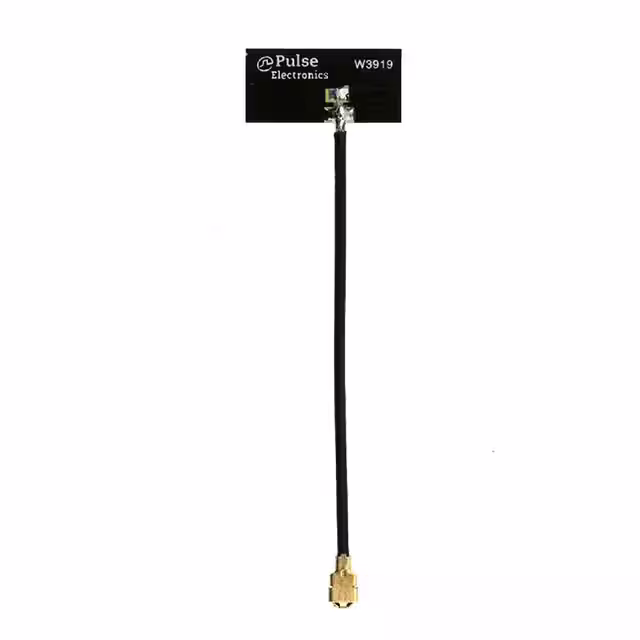

W3919B0100RF ANT 5.4GHZ FLAT PATCH CAB ADH |
2,441 | - |
|
Datasheet | - | Bulk | Active | WiFi | SHF (f > 4GHz) | 5.4GHz | 4.9GHz ~ 5.925GHz | Flat Patch | 1 | 2 | - | 3dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.018" (0.45mm) | Wi-Fi |
|

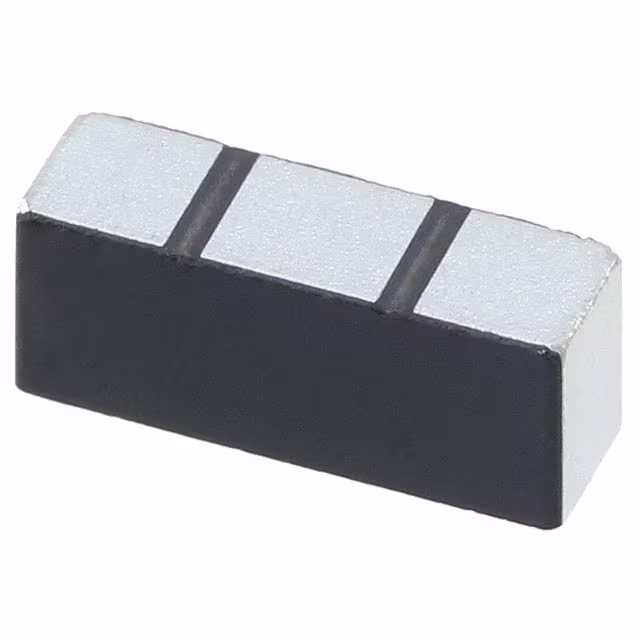

W3001RF ANT 2.4GHZ CHIP SOLDER SMD |
3,550 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Chip | 1 | - | -6dB | 1.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Bluetooth, WLAN |
|
W1699ANT EXT ISM868/915/2.4 RPSMA |
1,343 | - |
|
Datasheet | Stubby Antenna | Tray | Active | Bluetooth, General ISM, WiFi | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 868MHz, 915MHz, 2.45GHz | 868MHz ~ 928MHz, 2.4GHz ~ 2.5GHz | Whip, Straight | 3 | 3 | - | 0.3dBi, 1.2dBi | 5 W | - | RP-SMA Male | IP42 | - | - | Connector Mount | 1.953" (49.60mm) | Bluetooth, LoRa, Sigfox, Wi-Fi |
|

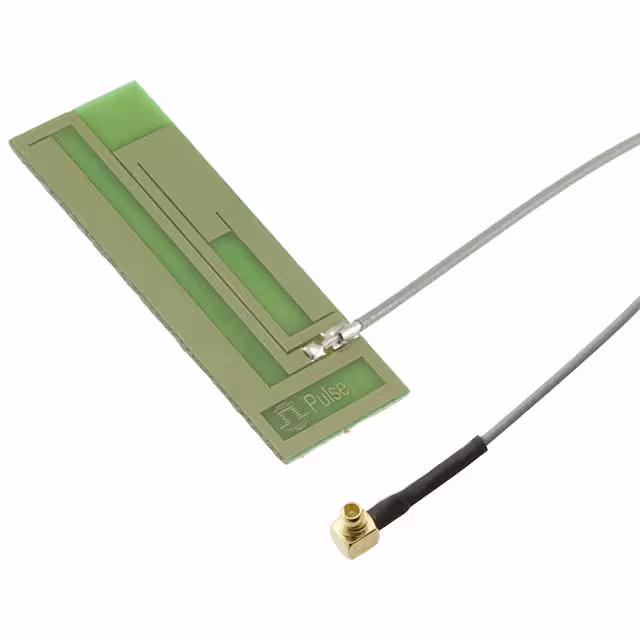

W3538E0150RF ANT 850/900MHZ PCB TRAC 150MM |
1,397 | - |
|
Datasheet | - | Tray | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 5 | - | -3dB, -6dB | 1.5dBi, 4.5dBi, 3.9dBi | - | Cable - 150mm | MMCX Male | - | - | - | Surface Mount | 0.028" (0.70mm) | GSM, WCDMA |
|

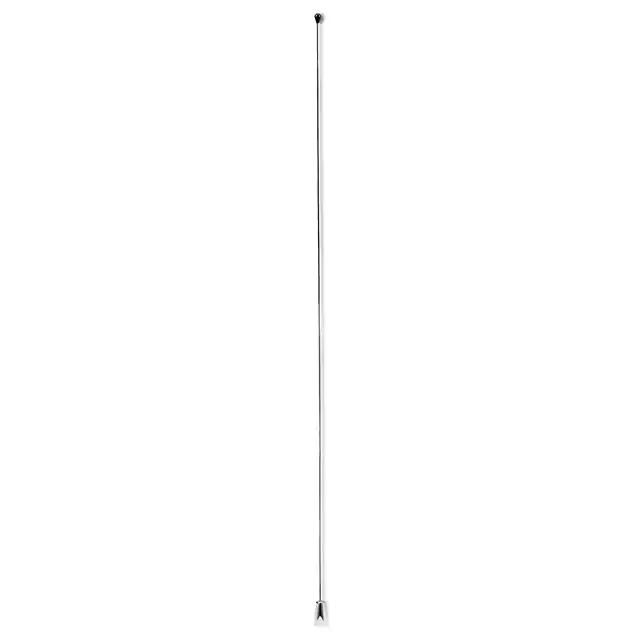

QSTAINLESS CONE / WHIP, UNITY, 13 |
3,244 | - |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 324MHz | 136MHz ~ 512MHz | Whip, Straight | 1 | 1 | - | 2dBi | 200 W | - | - | - | - | - | Magnetic | 22.000" (558.80mm) | - |
|

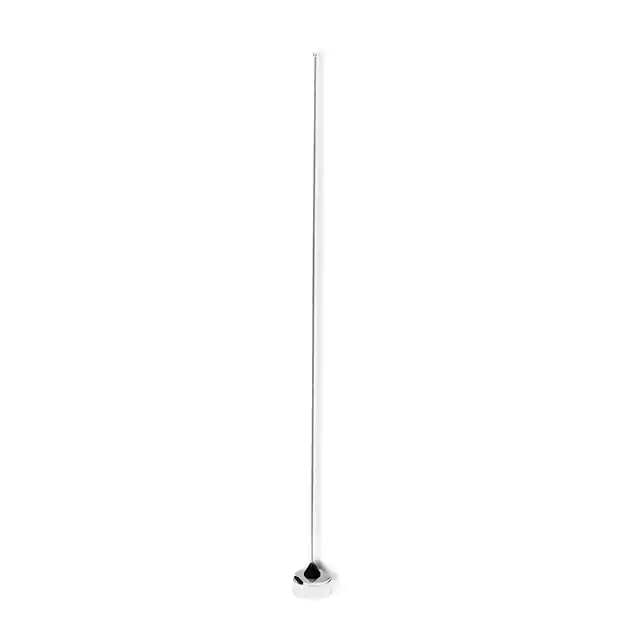

NMOQW152STAINLESS BASE / WHIP, UNITY, 15 |
3,014 | - |
|
Datasheet | - | Bag | Active | - | VHF (f < 300MHz) | 157MHz | 152MHz ~ 162MHz | Whip, Straight | 1 | - | - | 2dBi | 200 W | - | NMO | - | - | - | Magnetic | 19.000" (482.60mm) | - |
|
|
GNSSCGMSMAANT ACTIVE GNSS ADH MNT 5M SMA |
1,931 | - |
|
Datasheet | GNSS Active Antenna | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.559GHz ~ 1.61GHz | Module | 1 | 2.5 | - | -2dBi, -1.5dBi, -2.5dBi | - | Cable - 5m, LNA | SMA Male | IP65 | - | - | Adhesive | 0.260" (6.60mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

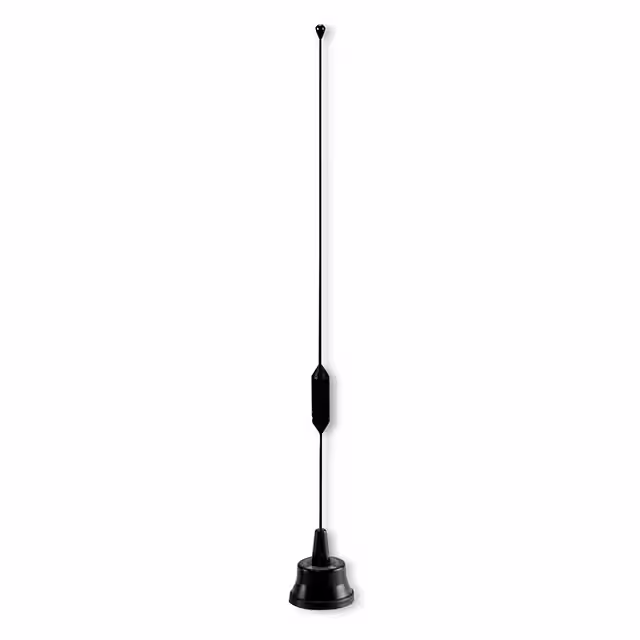

NMO3E800BBASE / WHIP ENCLOSED, 3 DB, 806 |
4,884 | - |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 836MHz | 806MHz ~ 866MHz | Whip, Straight | 1 | - | - | 5.4dBi | 200 W | - | NMO | - | - | - | Magnetic | 13.500" (342.90mm) | - |
|

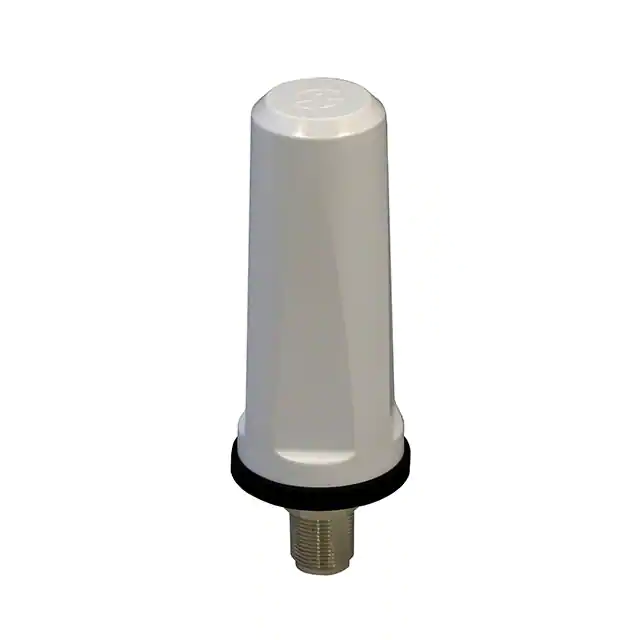

LPT600/71DMNWANTENNA 617-7125MHZ MONOPOLE |
4,685 | - |
|
Datasheet | Monopole Antenna | Bag | Active | Cellular, WiFi | Wide Band | 788.5MHz, 1.94GHz, 2.5GHz, 3.6GHz, 6.0125GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 7.125GHz | Dome | 5 | 2, 3 | - | 2dBi, 3.9dBi, 5.3dBi, 4.7dBi, 6.1dBi | 60 W | - | N Type Female | IP67 | - | - | Connector Mount | 3.776" (95.90mm) | 4G, 5G, Wi-Fi |
|
W4165MMSMA5RF ANT 892MHZ/1.58GHZ MOD CAB 5' |
1,502 | - |
|
Datasheet | Disc | Bulk | Active | Cellular, Navigation | Wide Band | 892MHz, 1.58GHz, 1.94GHz | 824MHz ~ 960MHz, 1.56GHz ~ 1.608GHz, 1.71GHz ~ 2.17GHz | Module | 3 | 2 | - | 4.5dB | - | Cable - 1.5m | SMA Male (2) | IP67 | - | - | Magnetic | 1.689" (42.90mm) | Beidou, Galileo, GLONASS, GPRS, GPS, GSM |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
