RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

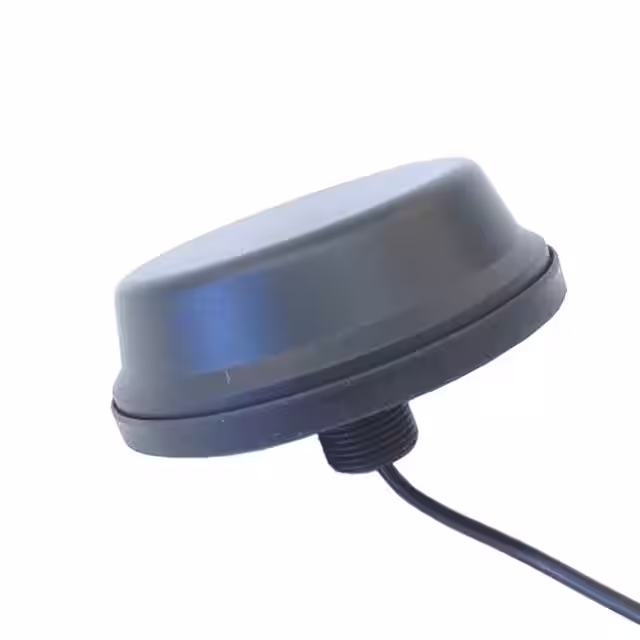

TANGO23/2.5M/SMAM/S/RP/19RF ANT 2.4GHZ/5.5GHZ PUCK RP-SMA |
120 | - |
|
Datasheet | TANGO 23 | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.1GHz ~ 5.9GHz | Puck | 2 | 1.7 | - | 5dBi | - | - | RP-SMA Male | - | - | - | Panel Mount | 0.906" (23.00mm) | Bluetooth, WLAN, Zigbee™ |
|

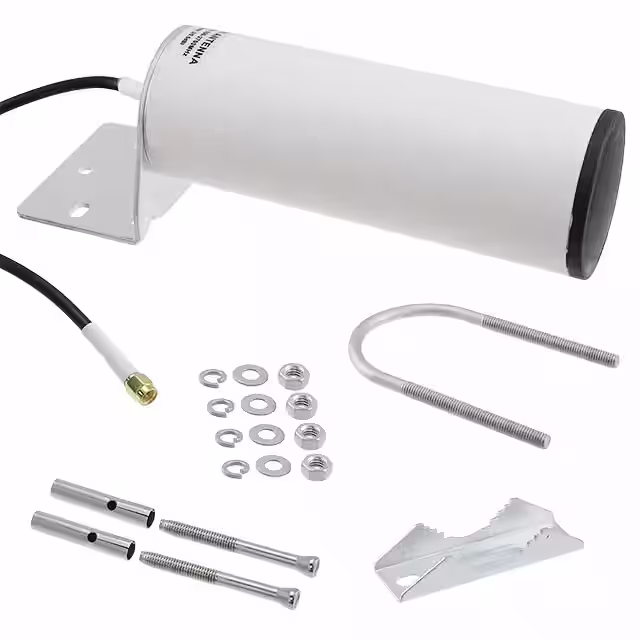

OSCAR40/10M/LL/SMAM/S/S/33RF ANT 880MHZ/2.2GHZ WHIP STR |
682 | - |
|
Datasheet | OSCAR 40 | Bulk | Active | 802.15.4, Bluetooth, Cellular, General ISM, WiFi | Wide Band | - | 433MHz ~ 5.8GHz | Whip, Straight | 2 | 1.5 | - | 5.5dBi | - | - | SMA Male | - | - | - | Pole Mount, Wall Mount | 9.449" (240.00mm) | 802.11n/ac/ax, Bluetooth, LoRa, NB-IOT, Wi-Fi, WLAN, Sigfox, Zigbee™ |
|
OSCAR18/X/NF/S/S/22RF ANT 850MHZ/900MHZ YAGI N FEM |
121 | - |
|
Datasheet | OSCAR 18 | Bulk | Active | 802.15.4, Bluetooth, Cellular, WiFi | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | - | Yagi | 6 | 1.5 | - | 10dBi | - | - | N Type Female | - | - | - | Bracket Mount | 2.559" (65.00mm) | Bluetooth, GPRS, GSM, UMTS, WLAN, Zigbee™ |
|
DELTA2D/X/SMAM/S/RA/34RF ANT 800/900MHZ WHIP RA 51MM |
164 | - |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 800MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Right Angle | 5 | 2 | - | 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.047" (52.00mm) | GPRS, GSM |
|

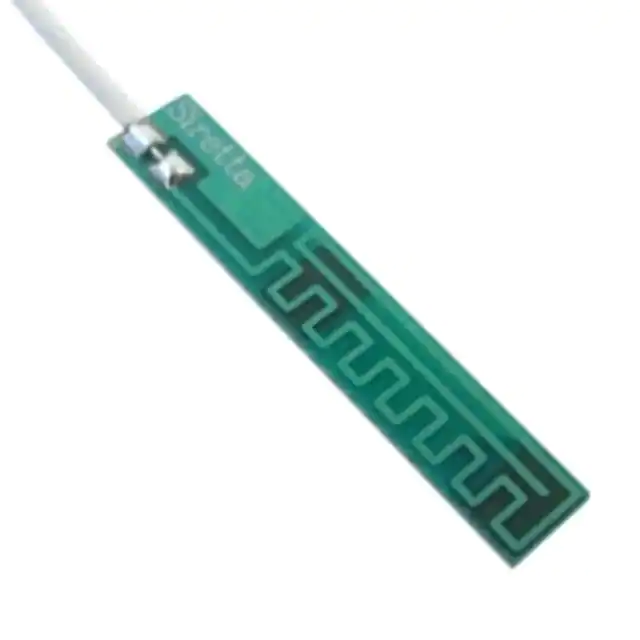

ECHO1A/0.1M/IPEX/S/S/11RF ANT 850/868MHZ PCB TRACE IPEX |
747 | - |
|
Datasheet | ECHO 1A | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 868MHz, 900MHz, 915MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | PCB Trace | 1 | 2 | - | 3.6dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.024" (0.60mm) | GPRS, GSM, UMTS |
|
DELTA8A/X/SMAM/S/S/17RF ANT 2.4GHZ WHIP STR SMA MALE |
212 | - |
|
Datasheet | DELTA 8A | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 0dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.063" (27.00mm) | Bluetooth, WLAN, Zigbee™ |
|
DELTA22A/X/SMAM/S/S/20868MHZ ISM BAND 115MM SMALL ANTE |
106 | - |
|
Datasheet | Delta 22A | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | - | Whip, Tilt | 1 | 1.5 | - | 3dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 4.528" (115.00mm) | ISM |
|
DELTA12/X/SMAM/S/S/17RF ANT 151MHZ/173MHZ WHIP STR |
446 | - |
|
Datasheet | DELTA 12 | Bulk | Active | General ISM | VHF (f < 300MHz) | 151MHz, 173MHz | - | Whip, Straight | 2 | 2 | - | 3dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 5.118" (130.00mm) | ISM |
|

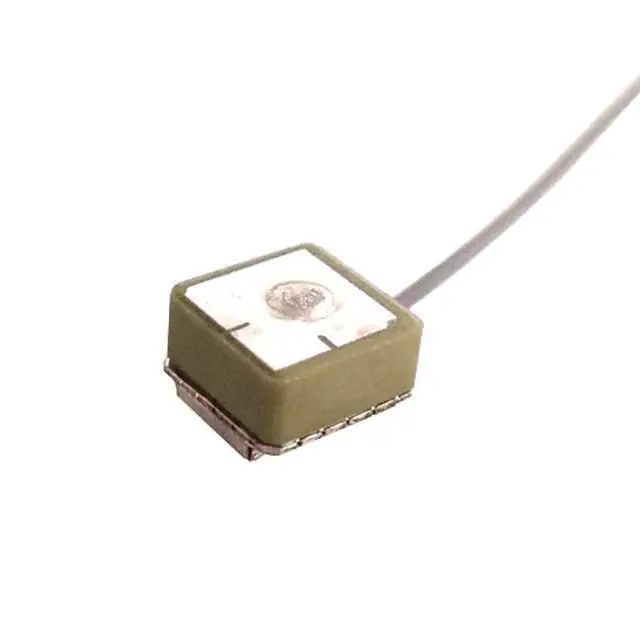

ECHO19/0.1M/UFL/S/S/17RF ANT 1.575GHZ CER PATCH U.FL |
422 | - |
|
Datasheet | ECHO 19 | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 1.8 | - | 16dB | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.256" (6.50mm) | GPS |
|
DELTA12C/X/BNCM/S/S/17RF ANT 915MHZ WHIP STR BNC MALE |
356 | - |
|
Datasheet | DELTA 12C | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | - | Whip, Straight | 1 | 2 | - | 3dBi | 50 W | - | BNC Male | - | - | - | Connector Mount | 5.118" (130.00mm) | ISM |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
