RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

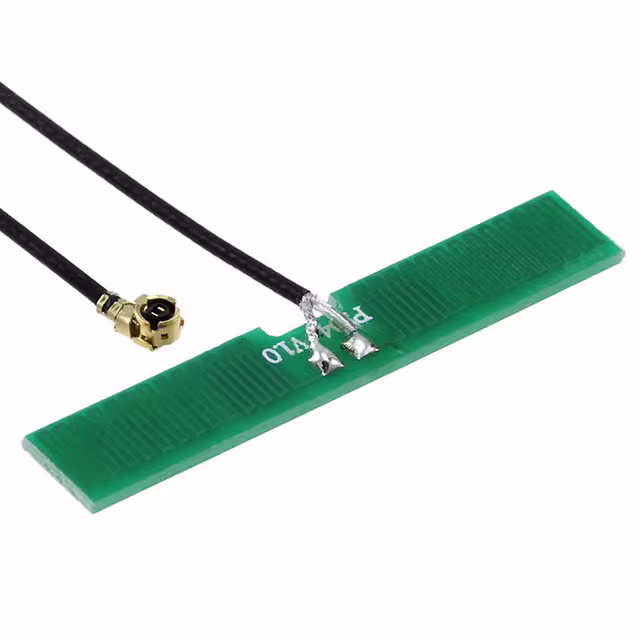

ECHO30/0.1M/IPEX/S/S/26RF ANT 892MHZ/2.1GHZ PCB TRACE |
269 | - |
|
Datasheet | ECHO 30 | Bulk | Active | Cellular | Wide Band | 892MHz, 2.1GHz | - | PCB Trace | 2 | 3 | - | 2dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.047" (1.20mm) | GPRS, GSM |
|

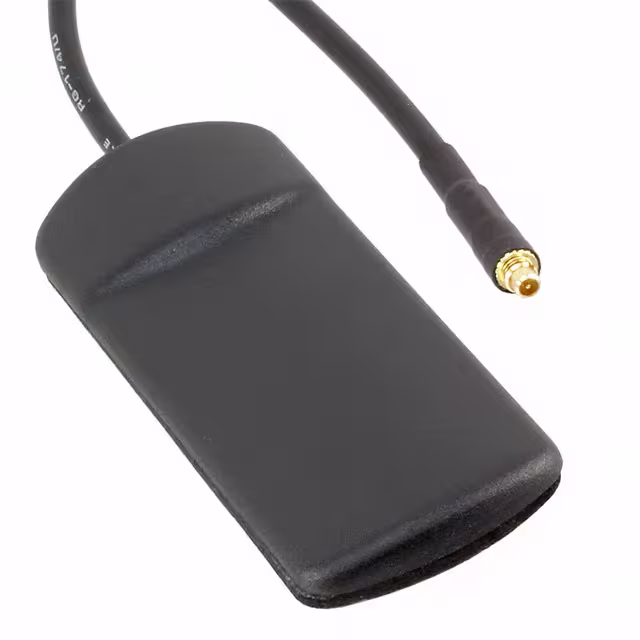

ALPHA3A/0.2M/MMCXM/S/S/26RF ANT 850MHZ/868MHZ BLADE MMCX |
112 | - |
|
Datasheet | ALPHA 3A | Bulk | Active | 802.15.4, Bluetooth, Cellular, WiFi | Wide Band | 850MHz, 868MHz, 900MHz, 915MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | - | Blade | 8 | 2 | - | 3dBi | - | - | MMCX Male | - | - | - | Adhesive | 0.098" (2.50mm) | Bluetooth, GPRS, GSM, UMTS, WLAN, Zigbee™ |
|

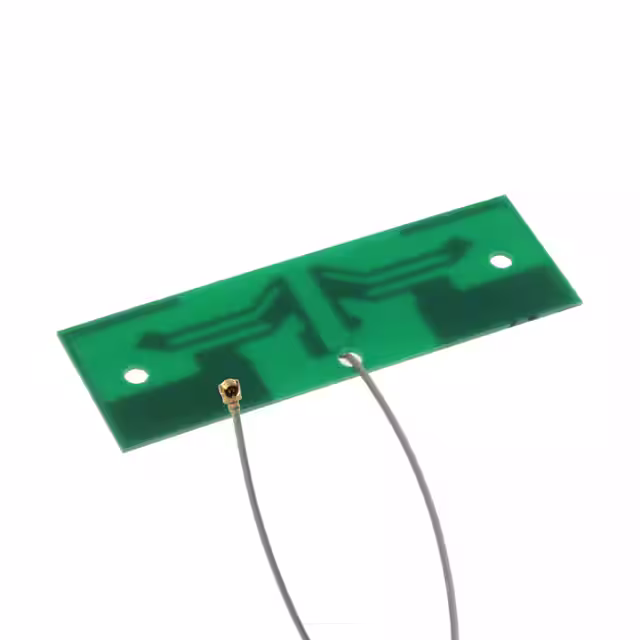

ECHO2/0.2M/UFL/S/S/1RF ANT 850/868MHZ PCB TRACE CAB |
114 | - |
|
Datasheet | ECHO 2 | Bulk | Active | - | Wide Band | 850MHz, 868MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | - | PCB Trace | 7 | 1.5 | - | 2dBi | - | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.039" (1.00mm) | - |
|
ECHO44/0.1M/UFL/365G C-BAND AND WI-FI 7 FLEXIBLE P |
500 | - |
|
Datasheet | Echo 44 | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | Wide Band | 4.35GHz, 4.487GHz | 2GHz ~ 6.525GHz, 2.45GHz ~ 6.7GHz | Flat Patch | 2 | - | - | 6.93dBi, 6.93dBi | 50 W | Cable - 100mm | MHF1, U.FL | - | - | - | Adhesive | 0.009" (0.24mm) | 5G, 802.11 ac/ax/be, Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
ECHO44/0.1M/MHF4/365G C-BAND AND WI-FI 7 FLEXIBLE P |
490 | - |
|
Datasheet | Echo 44 | Bulk | Active | 802.15.4, Bluetooth, General ISM, WiFi | Wide Band | 4.35GHz, 4.487GHz | 2GHz ~ 6.525GHz, 2.45GHz ~ 6.7GHz | Flat Patch | 2 | - | - | 6.93dBi, 6.93dBi | 50 W | Cable - 100mm | I-PEX MHF4 | - | - | - | Adhesive | 0.009" (0.24mm) | 5G, 802.11 ac/ax/be, Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
ECHO47/0.1M/UFL/365G/4G FLEXIBLE PRINTED CIRCUIT W |
500 | - |
|
Datasheet | Echo 47 | Bulk | Active | 802.15.4, Bluetooth, Cellular, General ISM, WiFi | Wide Band | 1.155GHz, 3.479GHz, 3.95GHz | 410MHz ~ 1.9GHz, 433MHz ~ 5.9GHz, 2GHz ~ 6.525GHz | Flat Patch | 3 | - | - | 5.84dBi, 5.84dBi | 50 W | Cable - 100mm | MHF1, U.FL | - | - | - | Adhesive | 0.009" (0.24mm) | 3G, 4G, 5G, Bluetooth, ISM, LoRa, LTE, Sigfox, UMTS, Zigbee™ |
|
|
ECHO47/0.1M/MHF4/365G/4G FLEXIBLE PRINTED CIRCUIT W |
493 | - |
|
Datasheet | Echo 47 | Bulk | Active | 802.15.4, Bluetooth, Cellular, General ISM, WiFi | Wide Band | 1.155GHz, 3.479GHz, 3.95GHz | 410MHz ~ 1.9GHz, 433MHz ~ 5.9GHz, 2GHz ~ 6.525GHz | Flat Patch | 3 | - | - | 5.84dBi, 5.84dBi | 50 W | Cable - 100mm | I-PEX MHF4 | - | - | - | Adhesive | 0.009" (0.24mm) | 3G, 4G, 5G, Bluetooth, ISM, LoRa, LTE, Sigfox, UMTS, Zigbee™ |
|
|
DELTA47/SMAM/365G HINGED BLADE ANTENNA FOR 600- |
463 | - |
|
Datasheet | Delta 47 | Bulk | Active | 802.15.4, Bluetooth, Cellular, General ISM | Wide Band | 1.155GHz, 3.116GHz, 3.95GHz | 410MHz ~ 1.9GHz, 433MHz ~ 5.8GHz, 2GHz ~ 5.9GHz | Whip, Straight | 3 | - | - | 7.77dBi, 7.77dBi, 7.77dBi | 10 W | - | SMA Male | - | - | - | Direct Mount | 5.508" (139.90mm) | 2G, 3G, 4G, 5G, Bluetooth, GSM, ISM, LoRa, LTE, Sigfox, UMTS, Zigbee™ |
|

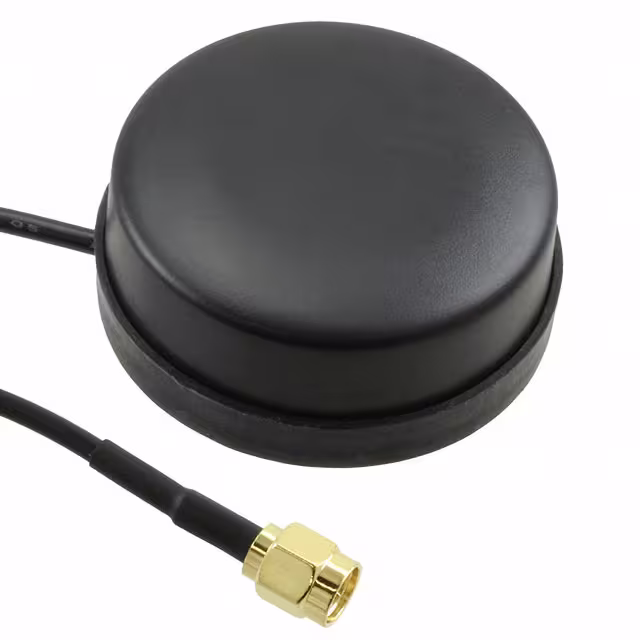

TANGO20A/3M/SMAM/S/S/26RF ANT 1.592GHZ PUCK SMA MALE |
2,515 | - |
|
Datasheet | TANGO 20A | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.592GHz | - | Puck | 1 | 2 | - | 28dB | - | - | SMA Male | IP67 | - | - | Panel Mount | 0.571" (14.50mm) | GLONASS, GPS |
|

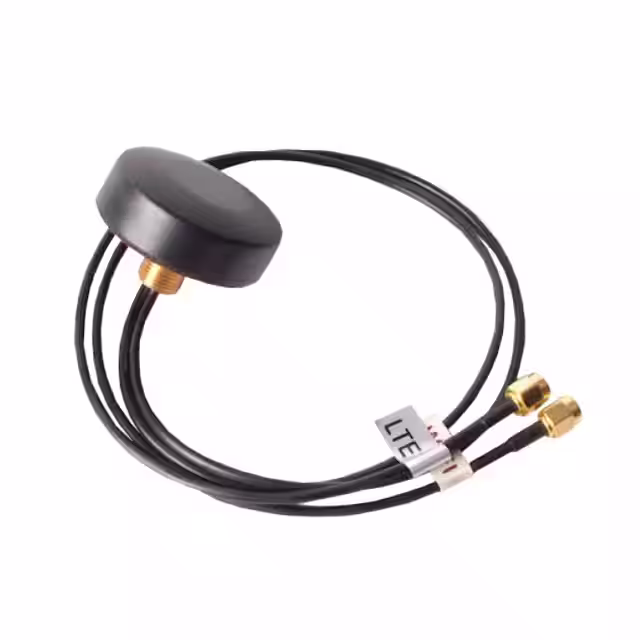

TANGO43/0.5M/SMAM/SMAM/RP/S/S/17RF ANT DOME RP-SMA MALE PAN MT |
4,674 | - |
|
Datasheet | - | Bulk | Active | Cellular, WiFi | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | - | - | Dome | 3 | 1.5 | - | 2dBi | 60 W | - | RP-SMA Male | IP67 | - | - | Panel Mount | 0.571" (14.50mm) | LTE, Wi-Fi |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
