RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DELTA26/X/SMAM/S/S/194G/LTE 0/2DBI DIPOLE KNUCKLE ANT |
144 | - |
|
Datasheet | DELTA 26 | Bulk | Active | Bluetooth, Cellular, Navigation, WiFi | UHF (300MHz ~ 1GHz) | 830MHz, 2.2GHz | 700MHz ~ 960MHz, 1.7GHz ~ 2.7GHz | Whip, Tilt | 2 | 3.6 | - | 0dBi, 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.874" (200.00mm) | 2G, 3G, 4G, Bluetooth, GPS, GSM, LTE, UMTS, Wi-Fi |
|

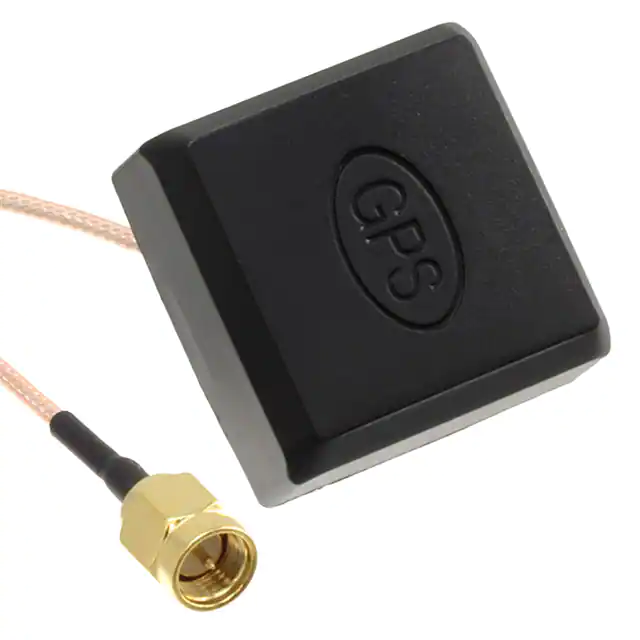

TANGO21/0.3M/SMAM/S/S/26RF ANT 1.575GHZ MOD SMA PAN MT |
436 | - |
|
Datasheet | TANGO 21 | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Module | 1 | 1.5 | - | 28dB | - | LNA | SMA Male | - | - | - | Panel Mount | 0.547" (13.90mm) | GPS |
|

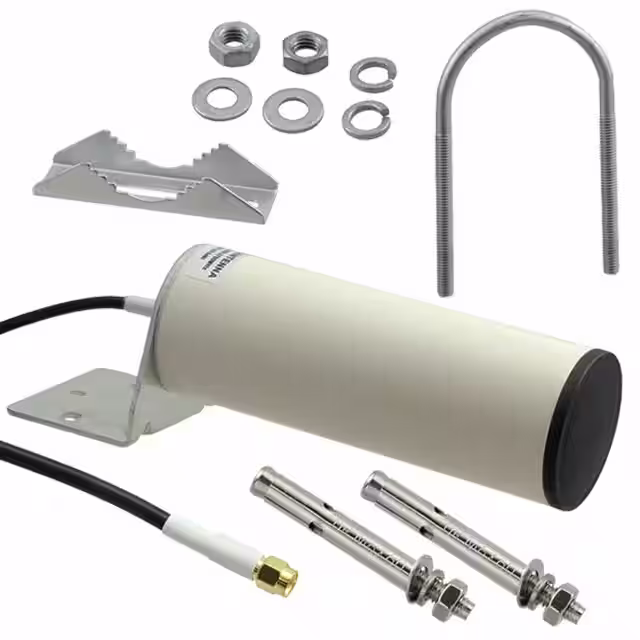

OSCAR40/5M/LL/SMAM/S/S/33RF ANT 880MHZ/2.2GHZ WHIP STR |
433 | - |
|
Datasheet | OSCAR 40 | Bulk | Active | 802.15.4, Bluetooth, Cellular, General ISM, WiFi | Wide Band | - | 433MHz ~ 5.8GHz | Whip, Straight | 2 | 1.5 | - | 5.5dBi | - | - | SMA Male | - | - | - | Pole Mount, Wall Mount | 9.449" (240.00mm) | 802.11n/ac/ax, Bluetooth, LoRa, NB-IOT, Wi-Fi, WLAN, Sigfox, Zigbee™ |
|
DELTA20/X/SMAM/S/S/35RF ANT 2.4GHZ WHIP STR ML 28.5MM |
354 | - |
|
Datasheet | - | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 0dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 1.122" (28.50mm) | Bluetooth, Wi-Fi |
|

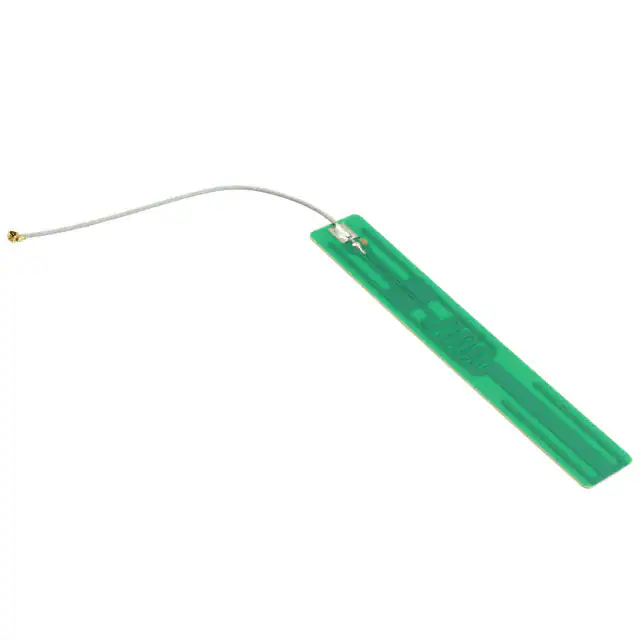

ECHO14/0.1M/UFL/S/S/15RF ANT 800/868MHZ PCB TRACE U.FL |
2,585 | - |
|
Datasheet | ECHO 14 | Bulk | Active | Cellular | Wide Band | 800MHz, 868MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz | - | PCB Trace | 7 | 3.2 | - | 0dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.039" (1.00mm) | GPRS, GSM, UMTS |
|

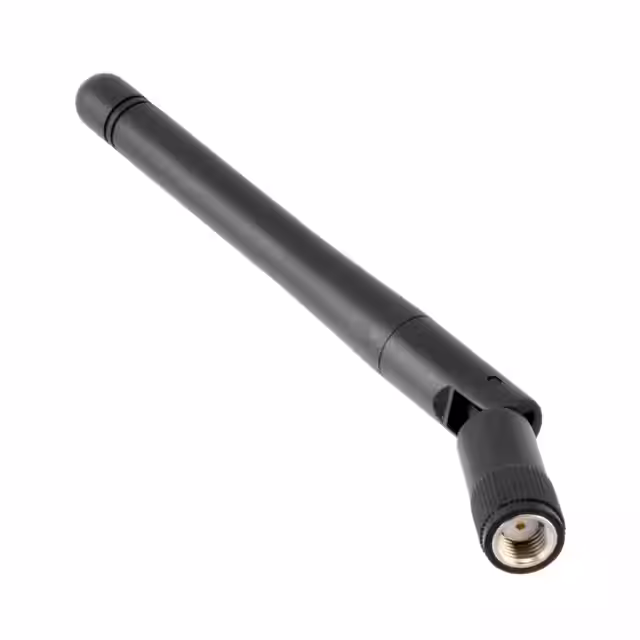

DELTA7A/X/SMAM/RP/S/11RF ANT 2.4GHZ/5.8GHZ WHIP TILT |
116 | - |
|
Datasheet | DELTA 7A | Bulk | Active | General ISM | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | - | Whip, Tilt | 2 | 2 | - | 1.5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.331" (110.00mm) | ISM |
|
ALPHA40/1.5M/SMAM/S/S/29RF ANT 762MHZ/1.94GHZ FLAT BAR |
598 | - |
|
Datasheet | ALPHA 40 | Bulk | Active | 802.15.4, Bluetooth, Cellular, WiFi | Wide Band | 762MHz, 1.94GHz, 2.5GHz | 700MHz ~ 824MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Flat Bar | 3 | - | - | 2dBi | - | - | SMA Male | - | - | - | Adhesive | 0.177" (4.50mm) | Bluetooth, WLAN |
|

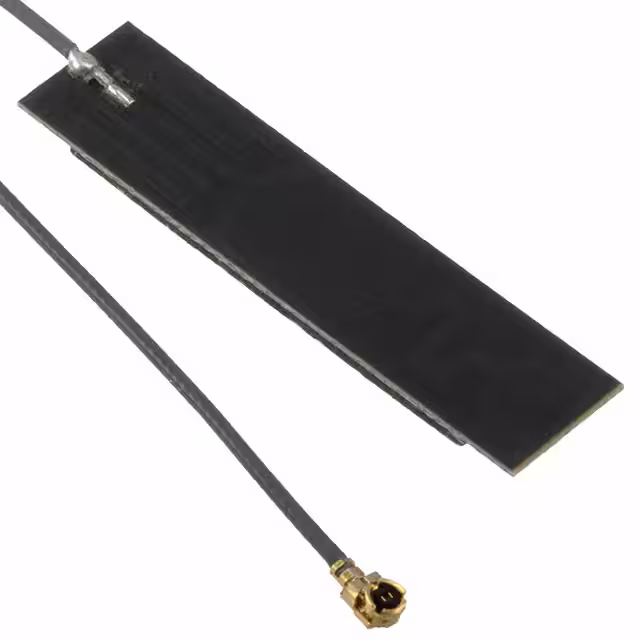

ECHO11/0.2M/IPEX/S/S/12RF ANT 2.4GHZ PCB TRACE IPEX SMD |
213 | - |
|
Datasheet | ECHO 11 | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.6 | - | 2.6dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, WLAN, Zigbee™ |
|

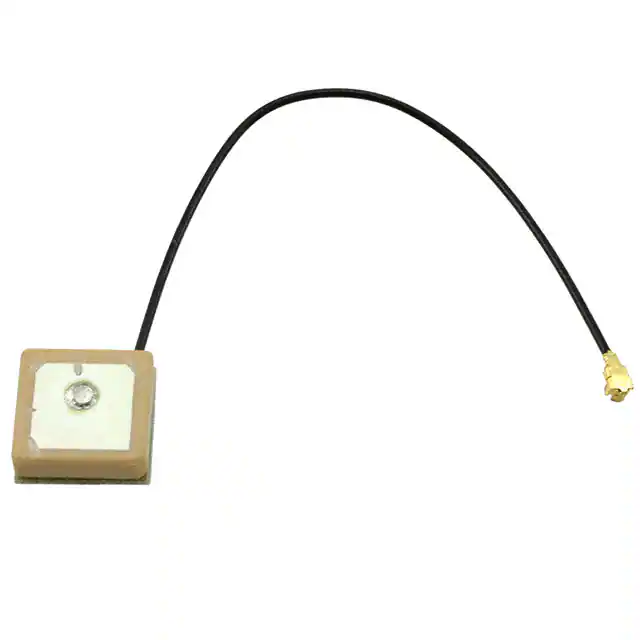

ECHO27/0.1M/IPEX/S/S/15RF ANT 1.575GHZ PCB TRACE CAB |
352 | - |
|
Datasheet | ECHO 27 | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | PCB Trace | 1 | 1.5 | - | 22dBi | - | Cable - 100mm, LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.256" (6.50mm) | GPS |
|
ALPHA14/2.5M/SMAM/S/S/26RF ANT 850MHZ/868MHZ BLADE SMA |
174 | - |
|
Datasheet | ALPHA 14 | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 868MHz, 900MHz, 915MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Blade | 7 | 2 | - | 2.7dBi | - | - | SMA Male | - | - | - | Adhesive | 0.079" (2.00mm) | GPRS, GSM, UMTS |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
