RF Antennas
Browse available RF Antennas part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

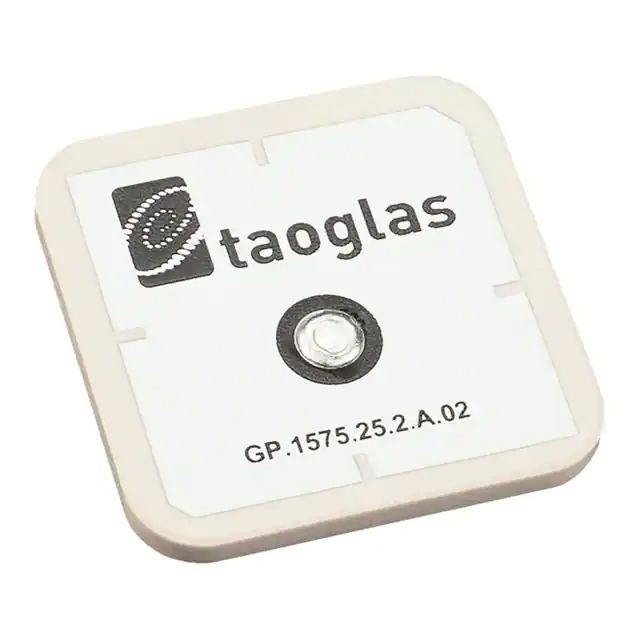

GP.1575.25.2.A.02RF ANT 1.575GHZ CER PATCH PIN |
498 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.577GHz | Ceramic Patch | 1 | 1.5 | -10dB | 2dBic | - | - | Pin | - | - | - | Adhesive | 0.098" (2.50mm) | GPS |
|
1003893FT-AA10L0050ANTENNA ASSY, WLANB FT AA10 0050 |
6,307 | - |
|
Datasheet | - | Box | Active | - | UHF (2GHz ~ 3GHz) | 2.4425GHz | 2.4GHz ~ 2.485GHz | PCB Trace | 1 | 1.5 | - | 3.3dBi | 500 mW | Cable - 50mm | U.FL | - | - | - | Adhesive | 0.005" (0.12mm) | WLAN |
|
YCGO010AAPATCH ACTIVE GNSS L1 UFL 18X18 |
2,311 | - |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.582GHz | 1.559GHz ~ 1.606GHz | Ceramic Patch | 1 | - | - | - | - | Cable - 50mm | I-PEX | - | - | - | Adhesive | 0.256" (6.50mm) | GNSS, GPS |
|
|
YCGO008AAPATCH ACTIVE GNSS L1 UFL 10X10 |
752 | - |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.582GHz | 1.559GHz ~ 1.606GHz | Ceramic Patch | 1 | - | - | - | - | Cable - 50mm | I-PEX | - | - | - | Adhesive | 0.256" (6.50mm) | GNSS, GPS |
|
|
YDX001AAEXTERNAL DIPOLE LTE ANTENNA SMAM |
250 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 829MHz, 1.228GHz, 1.505GHz, 1.762GHz, 1.94GHz, 2.43GHz, 3.65GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 824MHz ~ 1.28GHz, 1.176GHz ~ 1.61GHz, 1.4GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 2.7GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz | Whip, Straight | 9 | 6 | - | 1.5dBi, 2.02dBi, 3dBi, 2.22dBi | - | - | SMA Male | IP55 | - | - | Connector Mount | 8.189" (208.00mm) | LTE |
|
|
YE0009AAEXTERNAL DIPOLE LTE ANTENNA SMAM |
123 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 829MHz, 1.228GHz, 1.505GHz, 1.762GHz, 1.94GHz, 2.43GHz, 3.65GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 824MHz ~ 1.28GHz, 1.176GHz ~ 1.61GHz, 1.4GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 2.7GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz | Whip, Straight | 9 | 3 | - | 1.7dBi, 1.9dBi, 3dBi, 2.6dBi | - | - | SMA Male | IP55 | - | - | Connector Mount | 7.480" (190.00mm) | LTE |
|
2133530200LTE/GPS COMBO FLEXIBLE ANTENNA 2 |
1,774 | - |
|
Datasheet | - | Bulk | Active | Cellular, Navigation | Wide Band | 829MHz, 1.45GHz, 1.6GHz, 1.5605GHz, 1.5745GHz, 1.602GHz, 2.2GHz, 3.75GHz, 4.7GHz, 7.2GHz | 698MHz ~ 960MHz, 1.4GHz ~ 1.5GHz, 1.5GHz ~ 1.7GHz, 1.558GHz ~ 1.563GHz, 1.573GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz, 1.7GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.9GHz ~ 8.5GHz | Flat Patch | 10 | - | -5dB, -10dB | 2.5dBi, 2.3dBi, 2.3dBi, 5.4dBi, 5.4dBi, 4.5dBi, 7dBi | - | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | BeiDou, GLONASS, GPS, LTE, UWB |
|
X9001091-W3DSMBANTENNA, WLAN BLACK SMA MALE |
4,761 | - |
|
Datasheet | - | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | - | -14dB, -11dB | 1.8dBi, 4dBi | - | - | SMA Male | - | - | - | Connector Mount | 3.307" (84.00mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
1001932PT-AA10L0100RF ANT 2.4GHZ/5GHZ PCB TRACE ADH |
1,913 | - |
|
Datasheet | Prestta™ | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | PCB Trace | 2 | 2 | - | 2.5dBi, 3.7dBi, 3.4dBi, 4.4dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
X9003019-W3DSMBWI-FI 6E & 7 EXTERNAL WHIP HINGE |
197 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.442GHz, 5.375GHz, 6.562GHz | 2.4GHz ~ 2.485GHz, 4.9GHz ~ 5.85GHz, 6GHz ~ 7.125GHz | Whip, Right Angle | 3 | 2 | - | 2.8dBi, 4.9dBi, 5.5dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.283" (58.00mm) | WLAN, Zigbee™ |
|
DELTA2D/X/SMAM/S/RA/34RF ANT 800/900MHZ WHIP RA 51MM |
164 | - |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 800MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Whip, Right Angle | 5 | 2 | - | 2dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.047" (52.00mm) | GPRS, GSM |
|
SRF2I019-100RF ANT 868MHZ/915MHZ FLAT PATCH |
1,438 | - |
|
Datasheet | Montana | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz | Flat Patch | 2 | 1.7 | -11dB | 1.9dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | ISM |
|
2144140001ISM/DSRC ANTENNA_HINGED_B_M |
1,265 | - |
|
Datasheet | 214414 | Tray | Active | General ISM | SHF (f > 4GHz) | 5.9GHz | 5.8GHz ~ 6GHz | Whip, Tilt | 1 | - | -10dB | 3.9dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.268" (108.40mm) | DSRC, ISM |
|
FLEXI-SMA-868RF ANT 868MHZ WHIP STR SMA CONN |
105 | - |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | - | Whip, Straight | 1 | 1.4 | - | - | - | - | SMA | - | - | - | Connector Mount | 2.874" (73.00mm) | - |
|
ANT-915-NUB-RPSRF ANT 915MHZ SHORT WHIP RP-SMA |
131 | - |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 930MHz | Whip, Straight | 1 | 2.6 | - | 3.9dBi | 25 W | - | RP-SMA Female | - | - | - | Connector Mount | 0.697" (17.70mm) | ISM, LoRaWAN, LPWA |
|
1461860200RF ANT 1.561/1.575GHZ FLAT 200MM |
847 | - |
|
Datasheet | 146186 | Bulk | Active | Navigation, WiFi | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz, 5GHz | 1.575GHz ~ 1.602GHz, 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz | Flat Patch | 5 | - | -10dB | 2.7dBi, 3.5dBi, 4.2dBi | 2 W | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | BeiDou, GLONASS, WiMax, WLAN, Wi-Fi |
|
ANT-2.4-FPC-LV100MXANT 2.4 FPC 45X7 100 CBL MMCX |
125 | - |
|
Datasheet | ANT-2.4-FPC-LV | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.7 | - | 4.3dBi | 2 W | Cable - 100mm | MMCX | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
9003034F0-AC10L0100LTE 5G FPC ANTENNA W/MHF4 CONNEC |
701 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 2.395GHz, 4.15GHz | 2.1GHz ~ 2.69GHz, 3.3GHz ~ 5GHz | Flat Bar | 2 | - | -7.3dB, -7.7dB | 4.2dBi, 4.3dBi | - | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.008" (0.20mm) | 5G |
|
|
YE0006AAMAG MT ANTENNA WHIP 1.5M LTE |
670 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 829MHz, 1.228GHz, 1.505GHz, 1.7GHz, 1.94GHz, 2.43GHz, 3.65GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 700MHz ~ 1.28GHz, 1.176GHz ~ 1.61GHz, 1.4GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 2.7GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz | Whip, Straight | 9 | 3 | - | 3.5dBi, 3.5dBi, 2.8dBi, 3dBi | - | Cable - 1.5m | SMA Male | IP65 | - | - | Magnetic | 12.520" (318.00mm) | LTE |
|
21249801502.4GHZ ON FULL METAL CABL |
117 | - |
|
Datasheet | - | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4425GHz | 2.4GHz ~ 2.485GHz | PCB Trace | 1 | - | -6dB | 3.6dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.138" (3.50mm) | Bluetooth, WirelessHART, Wi-Fi, Zigbee™ |
RF Antennas FAQ
Common questions about selecting, comparing and sourcing RF Antennas components through Winsun (HK) Electronics.
What should I check when selecting RF Antennas components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Antennas part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Antennas parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Antennas components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
