RF Antennas
Browse available RF Antennas part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2108793-1902~928 & 2400~2483.5 DUAL BAND |
4,348 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 915MHz, 2.44GHz | 902MHz ~ 928MHz, 2.4GHz ~ 2.4835GHz | PCB Trace | 2 | 2 | - | 2dBi, 2.1dBi | - | Cable - 185mm | MMCX | - | - | - | Adhesive | 0.012" (0.30mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
APAM2764YK0175RF ANT 1.575GHZ CER PATCH CAB |
1,184 | - |
|
Datasheet | APAM | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.578GHz | Ceramic Patch | 1 | 1.5 | - | 2.5dBic | - | Cable - 50mm, LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.276" (7.00mm) | GPS |
|
W3554B0293ANTENNA ASSEMBLY 6GHZ 293MM U.FL |
2,349 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi | Wide Band | 829MHz, 1.5GHz, 2.2GHz, 3.55GHz, 5.45GHz | 698MHz ~ 960MHz, 1.4GHz ~ 1.6GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | PCB Trace | 5 | - | -4dB, -3dB, -6dB, -5dB, -4dB | 1.9dBi, 2.5dBi, 3.2dBi, 3.3dBi, 3.5dBi | 5 W | Cable - 293mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | 2G, 3G, 4G, 5G, Bluetooth, GNSS, ISM, Wi-Fi, Zigbee™ |
|
2144140011ISM/DSRC ANTENNA_HINGED_B_F |
1,029 | - |
|
Datasheet | 214414 | Tray | Active | General ISM | SHF (f > 4GHz) | 5.9GHz | 5.8GHz ~ 6GHz | Whip, Tilt | 1 | - | -10dB | 3.9dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.268" (108.40mm) | DSRC, ISM |
|
ANT-2.4-FPC-SAH50UFANT 2.4 FPC 12X8 50MM CBL UFL |
880 | - |
|
Datasheet | ANT-2.4-FPC-SAH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 4.1 | - | 0.1dBi | 2 W | Cable - 50mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
ST1226-20-501-ARF ANTENNA STICK RP-SMA PLUG SIN |
201 | - |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | - | -10dB | 1.5dBi | 1 W | - | RP-SMA | - | - | - | Connector Mount | 2.008" (51.00mm) | Wi-Fi |
|
ANT-24G-S21-SMARF ANT 2.4GHZ WHIP STR SMA MALE |
272 | - |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Straight | 1 | 2 | - | 0dBi | - | - | SMA Male | - | - | - | Connector Mount | 0.827" (21.00mm) | General Purpose |
|
|
ANT-20087EB56RF ANT, GPS/GLONASS/BEIDOU/GALIL |
192 | - |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.559GHz, 1.575GHz, 1.602GHz | - | Whip, Tilt | 3 | 1.1, 1.2 | -22.7dB, -27.8dB, -23dB | 4.3dBi, 4.1dBi, 4.4dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 4.291" (109.00mm) | Beidou, Galileo, GLONASS, GPS |
|
1052630003RF ANT 850MHZ/900MHZ FLAT 200MM |
385 | - |
|
Datasheet | 105263 | Tray | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2GHz, 2.6GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.69GHz | Flat Patch | 6 | - | -7.5dB, -8dB, -8.5dB, -8.8dB, -9dB, -12dB | 1.3dBi, 1.7dBi, 2dBi, 2.2dBi, 3dBi | 2 W | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | GSM, LTE, UMTS |
|
|
YG0048AASTACKED PATCH L1/L5 PASS 25X25 |
796 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.575GHz | - | Ceramic Patch | 2 | - | - | - | - | LNA | Pin | - | - | - | Adhesive | 0.319" (8.10mm) | GNSS, LTE |
|
|
YE0025AA5G TERMINAL ANT SMA MALE |
481 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 829MHz, 3.355GHz | 698MHz ~ 960MHz, 1.71GHz ~ 5GHz | Whip, Straight | 2 | 3 | - | 4.7dBi, 4.7dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.835" (199.00mm) | 5G |
|
|
YEWM001AAMAG ANTENNA WIFI 2.4 1.5M SMA M |
189 | - |
|
Datasheet | - | Bag | Active | Cellular | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 1.5dBi | - | Cable - 1.5m | SMA Male | - | - | - | Magnetic | 3.047" (77.40mm) | Wi-Fi |
|
ANT-B20-CW-QW-SMARF ANT LTE B20 WHIP STR SMA PLUG |
238 | - |
|
Datasheet | CW | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 800MHz, 850MHz, | 790MHz ~ 870MHz | Whip, Straight | 1 | 2.1 | - | 1.6dBi | 10 W | O-Ring Compatible | SMA Male | - | - | - | Connector Mount | 3.531" (89.70mm) | LTE, NB-IoT, UMTS |
|
W3554B0140RF ANT 829MHZ/2.2GHZ PCB TRACE |
233 | - |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | PCB Trace | 2 | - | -27.1dB | - | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.008" (0.20mm) | GSM, LTE, W-CDMA |
|
X9000984-4GDSMBRF ANTENNA SMA MALE BLACK |
137 | - |
|
Datasheet | - | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 875MHz, 2.2GHz | 790MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Whip, Tilt | 2 | - | -4dB, -5dB, -6dB | 2.2dBi, 3.8dBi, 3.4dBi, 4.7dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.717" (196.00mm) | LoRa, LPWAN, LTE, Sigfox |
|

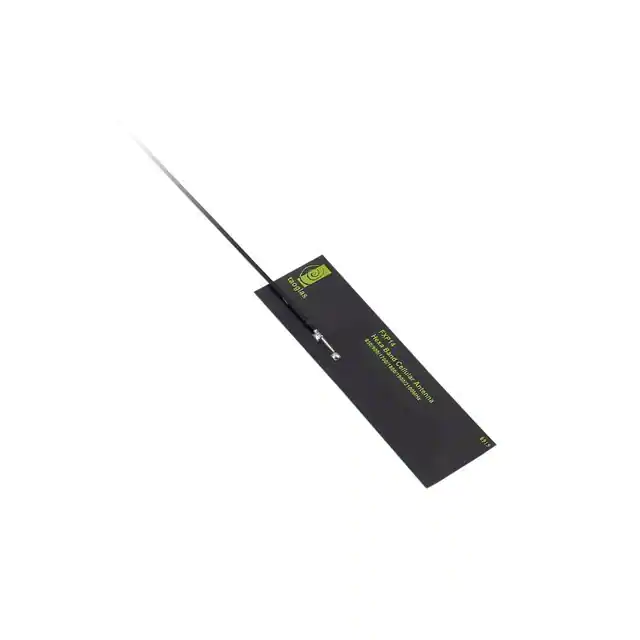

FXP14.24.0100BRF ANT 850MHZ/900MHZ FLAT PATCH |
280 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz | - | Flat Patch | 6 | 2.5 | -7dB, -12dB, -8dB, -9dB, -9dB, -8dB | 2dBi, 1.5dBi, 3dBi, 2.5dBi, 2dBi, 2.5dBi | 5 W | Cable - 100mm | I-PEX MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | 3G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, PCS, UMTS, WCDMA |
|

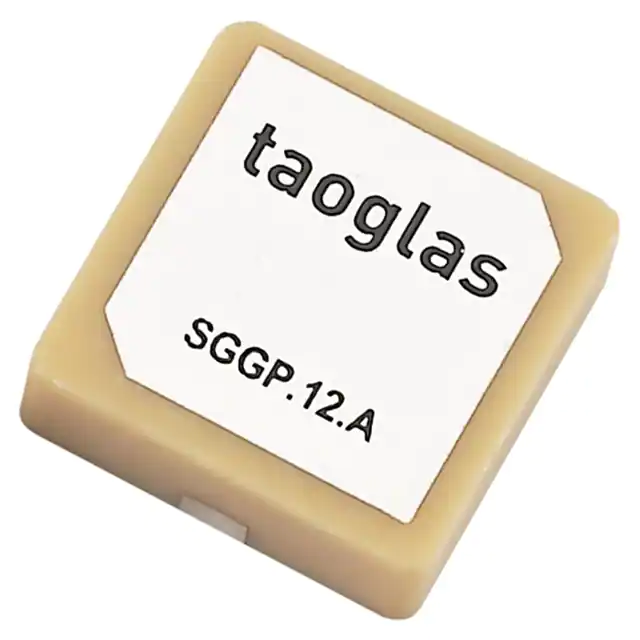

SGGP.12.4.A.02RF ANT 1.575/1.602GHZ INTEG CHIP |
3,085 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Integrated, Chip | 2 | - | -10dB | 2.9dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
|
APAM1866YA18RF ANT 1.575GHZ CER PATCH CAB |
1,266 | - |
|
Datasheet | APAM | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.578GHz | Ceramic Patch | 1 | 1.5 | - | 2dBic | - | Cable - 205mm, LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.276" (7.00mm) | GPS |
|

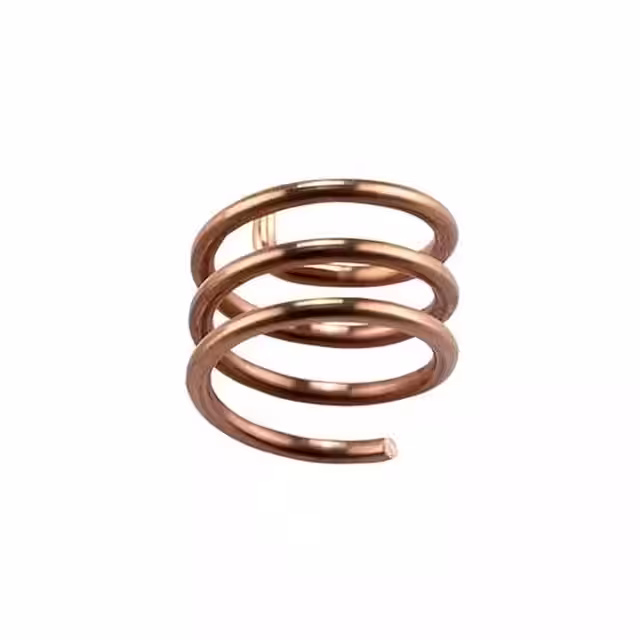

HA.31.ARF ANT 915MHZ HELICAL SOLDER SMD |
265 | - |
|
Datasheet | - | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | - | Helical | 1 | - | -10dB | 2.09dBi | - | - | Solder | - | - | - | Surface Mount | 0.421" (10.70mm) | ISM |
|

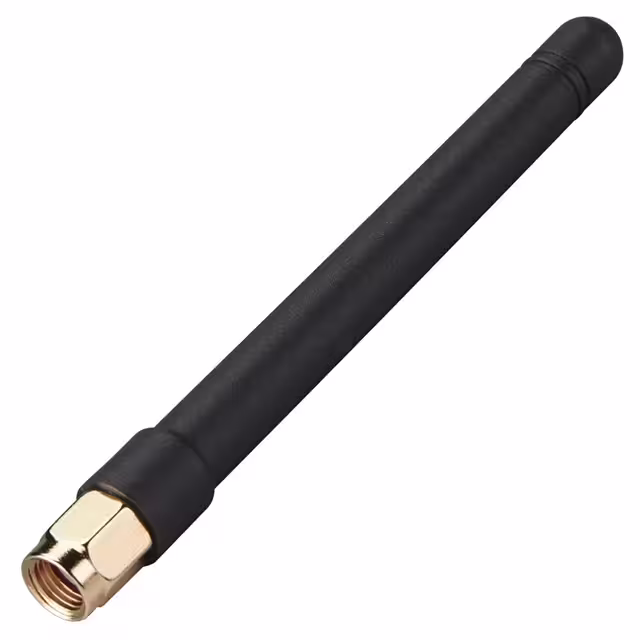

GW.48.A1512.4 / 5.8GHZ DUAL BAND 3-3.5DBI |
160 | - |
|
Datasheet | - | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
RF Antennas FAQ
Common questions about selecting, comparing and sourcing RF Antennas components through Winsun (HK) Electronics.
What should I check when selecting RF Antennas components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Antennas part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Antennas parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Antennas components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
