RF Antennas
Browse available RF Antennas part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W3907B0127LTE DIVERSITY FPC ANTENNA |
652 | - |
|
Datasheet | GEMINI | Bag | Active | Cellular | Wide Band | 829MHz, 1.4694GHz, 1.5845GHz, 1.9475GHz, 2.5GHz, 3.5GHz | 698MHz ~ 960MHz, 1.4279GHz ~ 1.5109GHz, 1.559GHz ~ 1.61GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz | PCB Trace | 6 | - | -6dB, -7.5dB | 2.9dBi, 1.7dBi, 1.8dBi, 3.4dBi, 3.8dBi, 4.2dBi | 3 W | Cable - 127mm | I-PEX MHF | - | - | - | Surface Mount | - | 2G, 3G, 4G, LTE |
|
H2UE3P2D2G0100LTE/4G FULL BAND 698-960 1710-26 |
1,797 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | Wide Band | 748MHz, 892MHz, 1.94GHz, 2.35GHz, 2.59GHz | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz | Chip | 5 | 3, 3.5 | - | 0.5dBi, 1.3dBi, 2.4dBi, 2.6dBi, 3dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | 2G, 3G, CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
|
H2B4MH1F2F0100LTE/4G FULL BAND FPC ANTENNA FPC |
1,591 | - |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 928MHz, 1.94GHz, 2.35GHz, 2.59GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz | PCB Trace | 4 | - | - | 1.2dBi, 2.6dBi, 2.8dBi, 3dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | 2G, 3G, CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
|
AEACAC025009-S2400RF ANT 2.4GHZ WHIP STR SMA MALE |
815 | - |
|
Datasheet | AEAC | Bulk | Active | General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Whip, Straight | 1 | 2 | - | 2dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 1.020" (25.90mm) | ISM, Wi-Fi |
|
ANT-GNFPC-SHL1100UFRF ANT GNSS FPC L1 100MM UFL |
901 | - |
|
Datasheet | ANT-GNFPC-SHL1 | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.601GHz, 1.602GHz | - | Flat Patch | 4 | 1.6, 1.9 | - | 3.2dBi, 3.2dBi, 2.6dBi, 2.6dBi | 2 W | Cable - 100mm | MHF1, U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
RST-W1B6-10808-22M-FY-001RF ANT 915MHZ WHIP RA SMA 108MM |
209 | - |
|
Datasheet | RST | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | - | Whip, Tilt | 1 | 2 | -10dB | 2dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 4.252" (108.00mm) | - |
|
RST-MA16-5008-23M-FY-001RF ANT 868MHZ WHIP RA SMA 47.5MM |
123 | - |
|
Datasheet | RST | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | - | Whip, Right Angle | 1 | 2 | -10dB | 2dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 1.870" (47.50mm) | - |
|

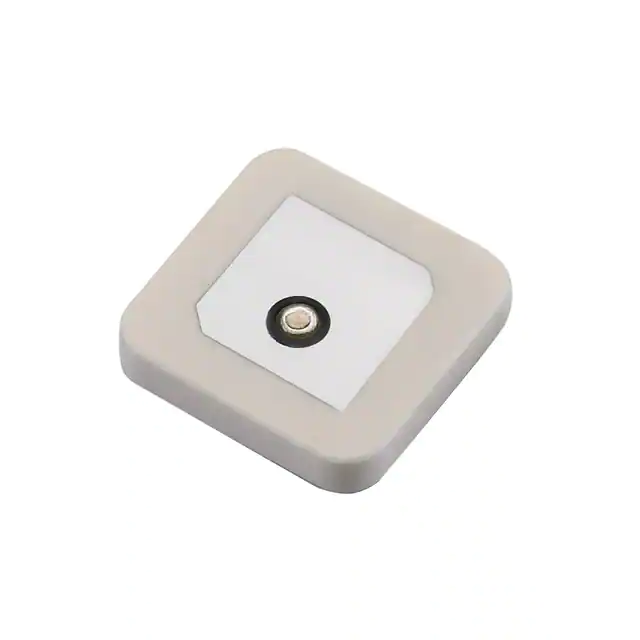

WLP.2450.25.4.A.02RF ANT 2.4GHZ CER PATCH PIN ADH |
169 | - |
|
Datasheet | - | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.44GHz ~ 2.525GHz | Ceramic Patch | 1 | 2 | -10dB | 5dBic | - | - | Pin | - | - | - | Adhesive | 0.197" (5.00mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
W3340ANTENNA 6.0-8.5 GHZ UWB |
3,025 | - |
|
Datasheet | Chip Antenna | Box | Active | - | SHF (f > 4GHz) | 7.25GHz | 6GHz ~ 8.5GHz | Chip | 1 | - | 9dB | 1.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | UWB |
|
ANT-24G-HL90-SMARF ANT 2.4GHZ WHIP RA SMA MALE |
112 | - |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Right Angle | 1 | 2 | -10dB | - | - | - | SMA Male | - | - | - | Connector Mount | 1.984" (50.40mm) | - |
|
W1910RF ANT 850MHZ/900MHZ WHIP STR |
1,273 | - |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 5 | - | -4dB, -6dB | 1dBi, 2dBi, 2.5dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.929" (49.00mm) | GSM, WCDMA |
|
PU-BNC-433RF ANT 433MHZ HELICAL BNC CONN |
103 | - |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | - | Helical | 1 | - | - | - | - | - | BNC | - | - | - | Connector Mount | 3.307" (84.00mm) | - |
|
ANT-STUBR-433SMRF ANT 433MHZ WHIP RA SMA 42MM |
283 | - |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Right Angle | 1 | 2 | -20.1dB | 0dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.772" (45.00mm) | - |
|
2144150001WI-FI/BLUETOOTH HINGED EXT ANTEN |
580 | - |
|
Datasheet | 214415 | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | - | -10dB | 5.3dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.268" (108.40mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
9000352F0-AE20L0100WI-FI 6E/BLUETOOTH FPC ANTENNA F |
5,762 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.44GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | 3 | - | 3.2dBi, 3dBi, 2.6dBi | 2 W | Cable - 100mm | MHF3, W.FL | - | - | - | Adhesive | 0.063" (1.60mm) | WLAN, Zigbee™ |
|
ANT-W63RPC1-UFL-100RF ANT WIFI 6GHZ FLEX UFL 100MM |
692 | - |
|
Datasheet | W63RPC | Bag | Active | WiFi | Wide Band | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Rigid Patch | 3 | 1.8, 2.1, 1.6 | -10.9dB, -9dB, -12.7dB | 3.7dBi, 6.1dBi, 5.9dBi | 5 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.051" (1.30mm) | 802.11, 802.15.4, Bluetooth, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
|
2118060-1RF ANT 3.1/5.5GHZ FLT U.FL 350MM |
16,201 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 3.1GHz, 5.5GHz | 2.3GHz ~ 3.8GHz, 5.15GHz ~ 5.875GHz | Flat Patch | 2 | 3 | - | 2dBi | 3 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.012" (0.30mm) | Bluetooth, WLAN, Zigbee™ |
|
|
YE0003AAEXTERNAL DIPOLE 5G ANTENNA SMAM |
479 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 2.43GHz, 2.84GHz, 3.65GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 699MHz ~ 1.28GHz, 1.176GHz ~ 1.61GHz, 1.4GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 4GHz, 3.3GHz ~ 5GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz | Whip, Right Angle | 9 | 4 | - | -0.9dBi, 3.4dBi, 2.76dBi, 3.5dBi, 3.25dBi, 3.14dBi | - | - | SMA Male | IP55 | - | - | Connector Mount | 7.480" (190.00mm) | LTE |
|
|
YE0010AALTE EXT ANTENNA 1M SMA ADHESIVE |
340 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 829MHz, 1.228GHz, 1.505GHz, 1.699GHz, 1.94GHz, 2.43GHz, 3.65GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 698MHz ~ 1.28GHz, 1.176GHz ~ 1.61GHz, 1.4GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 2.7GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz | Flat Bar | 9 | 3 | - | 3dBi, 3dBi, 3dBi, 2.9dBi | - | Cable - 1m | SMA Male | IP66 | - | - | Adhesive | 0.232" (5.90mm) | LTE |
|
21406101502.4/5GHZ ON FULL METAL CABLED AN |
1,740 | - |
|
Datasheet | 214061 | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 1 | - | -6dB, -9dB | 3.8dBi, 6.4dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.138" (3.50mm) | Bluetooth, Wi-Fi, Zigbee™ |
RF Antennas FAQ
Common questions about selecting, comparing and sourcing RF Antennas components through Winsun (HK) Electronics.
What should I check when selecting RF Antennas components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Antennas part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Antennas parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Antennas components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
